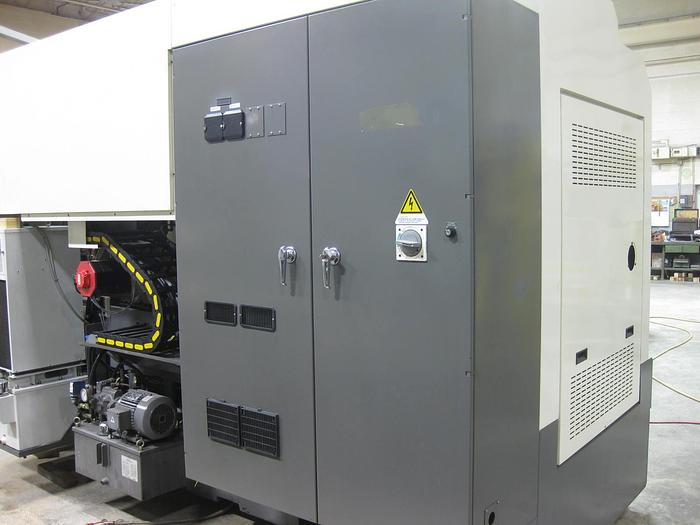

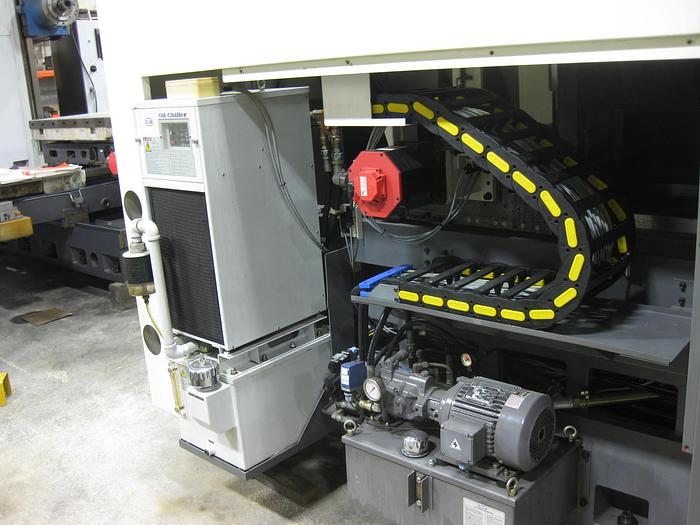

2006 HWACHEON HI-ECO 250A

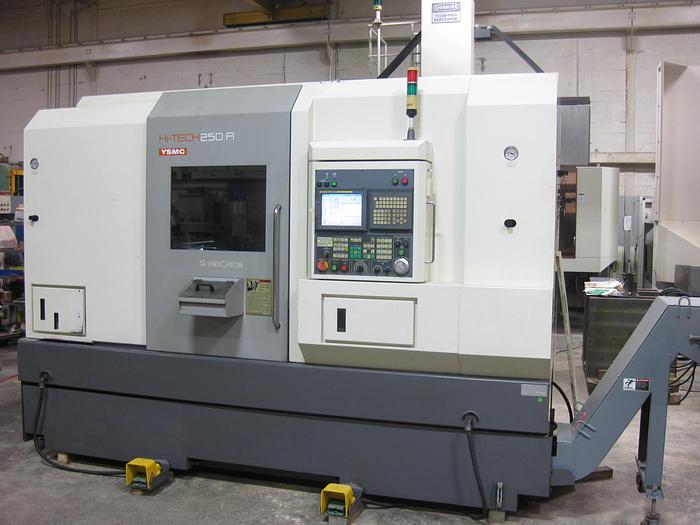

HWACHEON HI-ECO 250A CNC TURNING CENTER

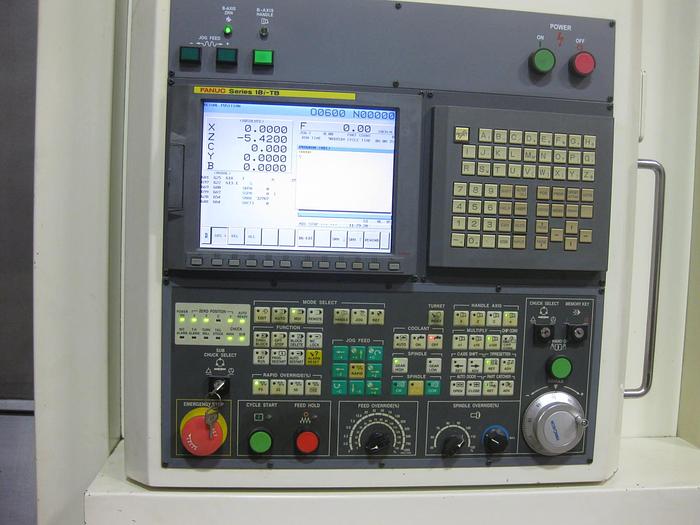

MACHINE FEATURES FANUC 18i TB CONTROLLER, LIVE TURRET TOOLING, Y-AXIS, AND SUBSPINDLE

SERIAL NUMBER-L25A 353ZJ6K A

BUILT—04-2006

CATALOG SPECIFICATIONS SUBJECT TO REVISION

Swing over bed-- 28”

Maximum turning diameter—13.8”

Standard turning diameter—11.06”

Maximum turning length—23.6”

Spindle speeds—S1=5,000 rpm

                             S2=6,000 rpm

Spindle bore—S1=3”

                        S2=1.49”

Draw tube I.D.—S1=2.5”

                           S2=1.18”

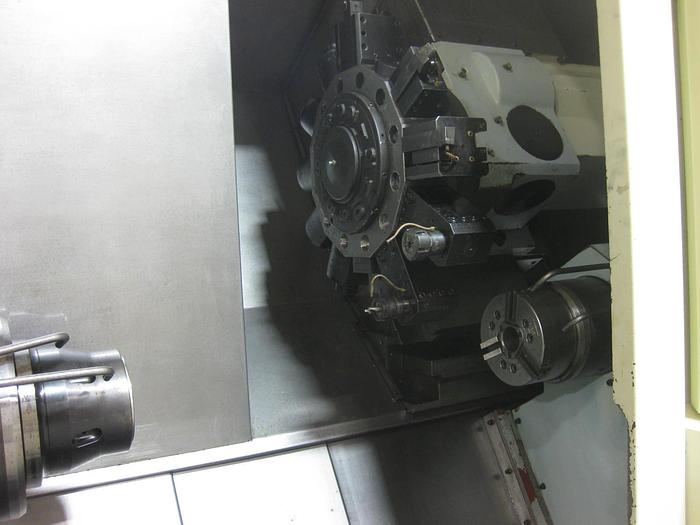

Turret—12 tool capacity

Spindle drive motor—S1=20/15 HP

                                    S2=10/7.5 HP

Weight—17,000 lbs

Equipped with—

   2 live axial tool holders

   5 live radial tool holders

   Y-axis function

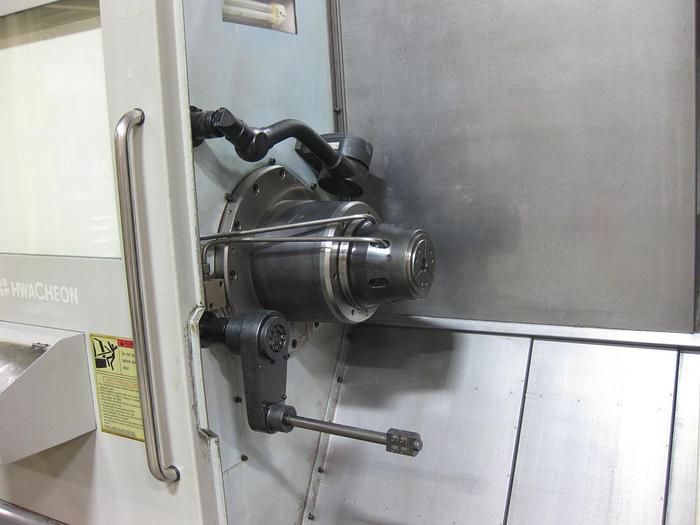

   Royal collet chuck for S1

   Kitagawa 6” chuck for S2

   Coolant tank

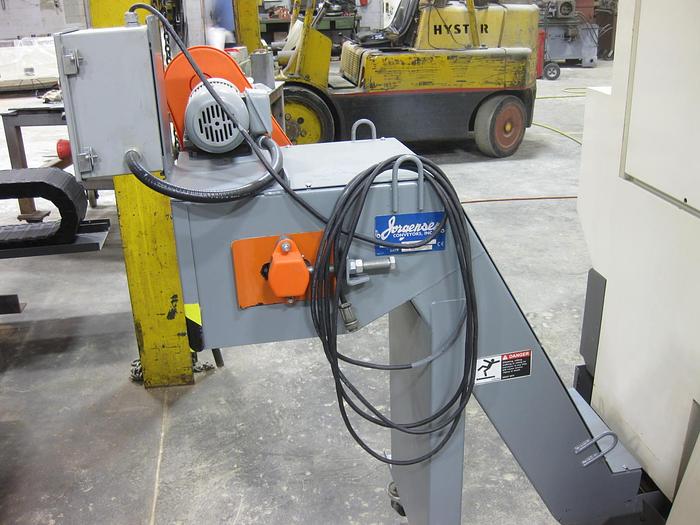

   Jorgensen chip conveyor

   Tool presetter

   Parts catcher
