2008 Kiwa KH-41

2008 Kiwa KH-41

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

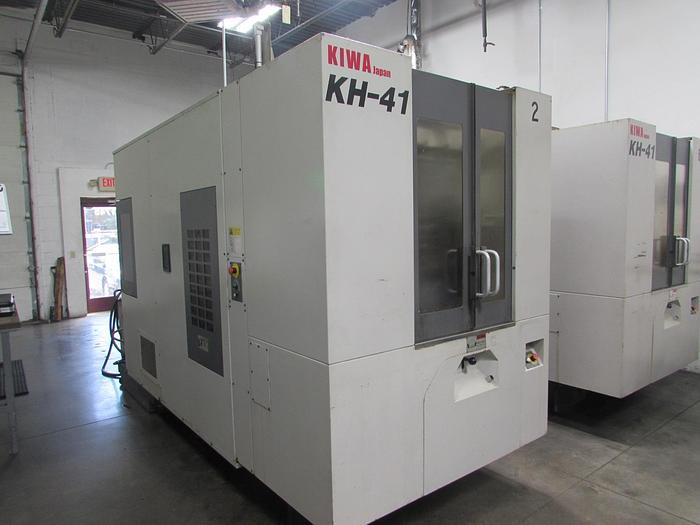

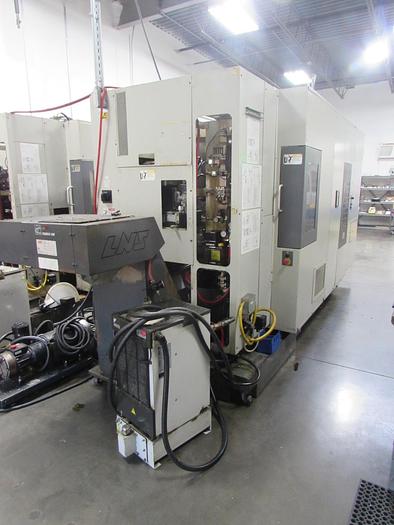

Kiwa KH-41 Horizontal Machining Center with Thru-Spindle Coolant, Fanuc 21i-MB Control, Pallet Changer, 12,000 RPM Spindle, and 40-Position ATC

Equipped With:

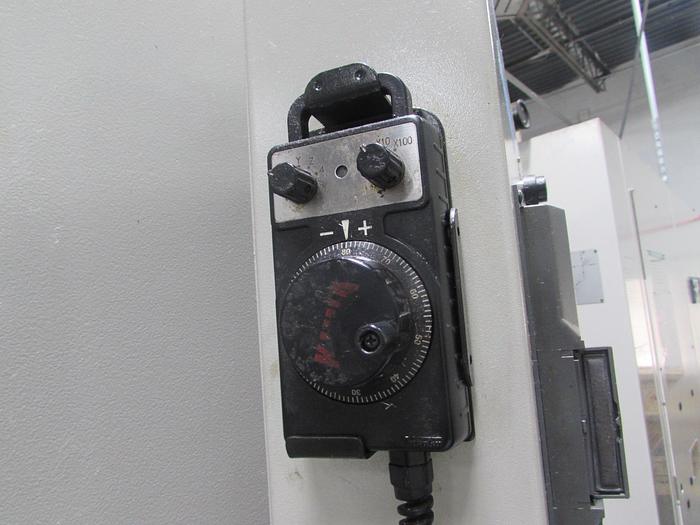

Fanuc 21i-MB CNC Control, Pallet Changer, Thru Spindle Coolant, Rear Discharge Chip Conveyor, Coolant Tank & Pump, Spindle Oil Chiller, Remote Jog Handle, RS232 Port, 40-Position Side Mount Twin Arm Tool Changer


220 Volt, 3-Phase

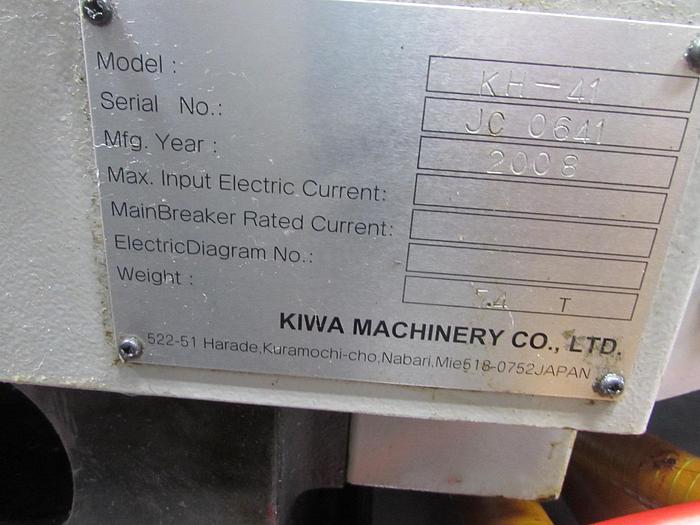

Manufacturer: Kiwa Model: KH-41 Year: 2008 Serial Number: JC0641

Main Unit Approx Weight: 16350.00 lbs

Main Unit Dimensions (in inches): Length: 67.00"  Width: 153.00"  Height: 115.00"


Chip Conveyor & Coolant Tank: Length: 90.00"  Width: 82.00"  Height: 53.00"

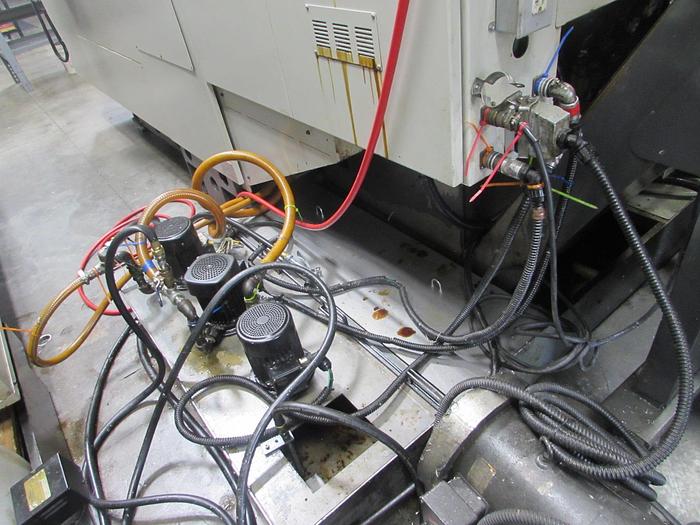

High Pressure Coolant Pump: Length: 33.00"  Width: 15.00"  Height: 21.00"

Spindle Oil Chiller: Length: 15.00"  Width: 21.00"  Height: 33.00"

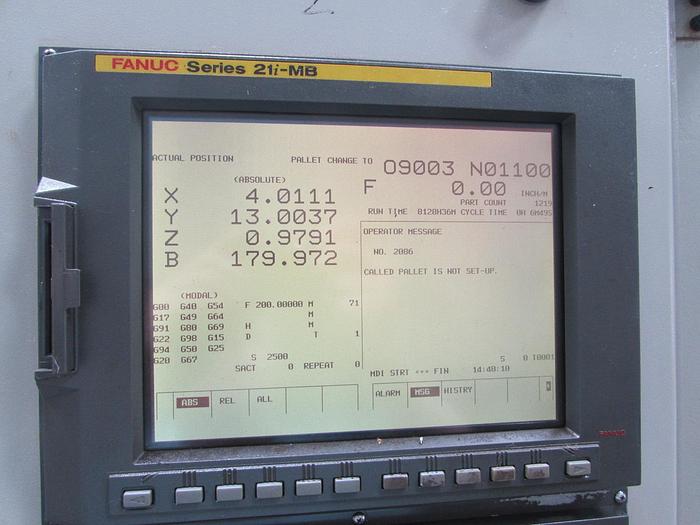

CNC Control: Fanuc Series 21i-MB

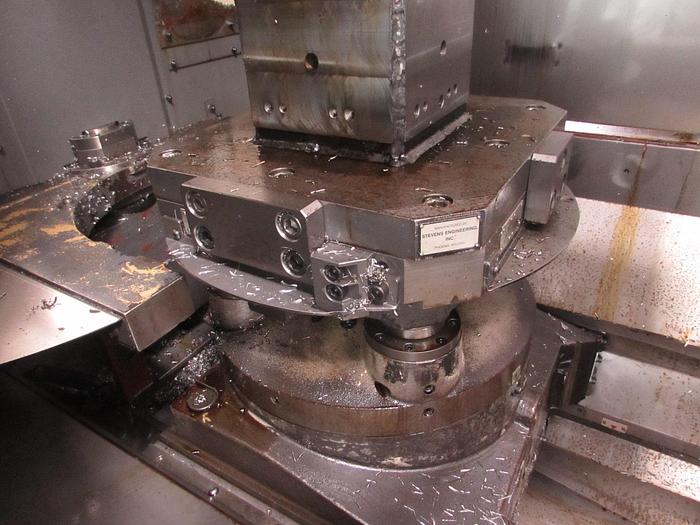

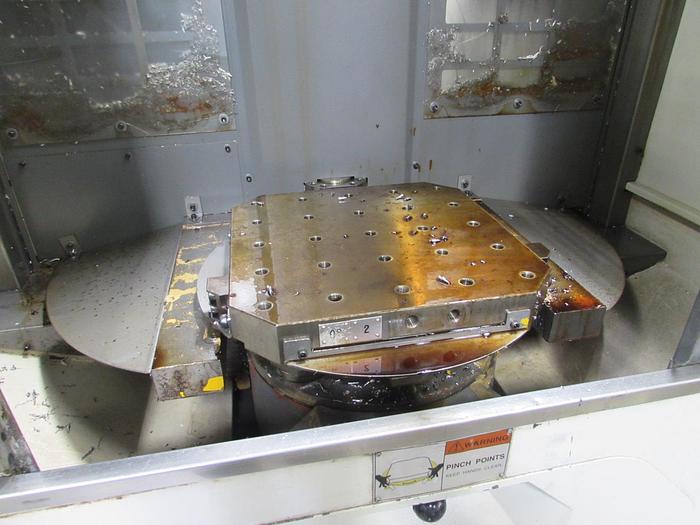

Pallet Size: 400mm

Machine Travels (X/Y/Z): 20" / 20" / 20"

Number of Pallet Stations: 2

Pallet Indexing: Full 4th Axis

Rapid Traverse Rate (X/Y/Z): 2362 IPM

Max Cutting Feed Rate: 1181 IPM

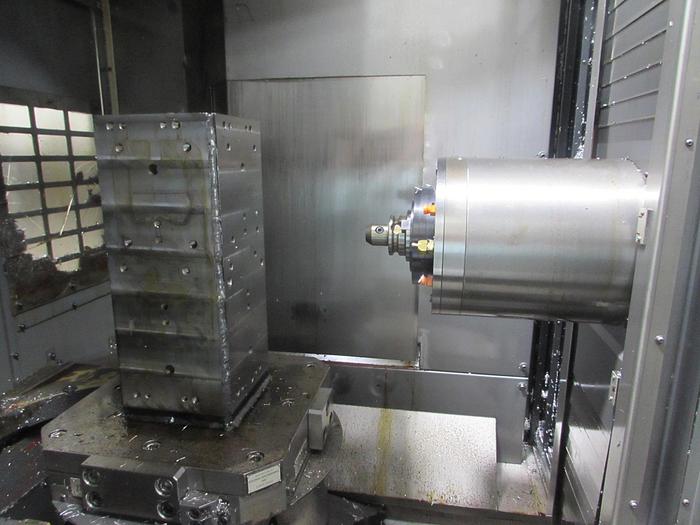

Spindle Taper: BT40

Spindle Speeds: 12,000 RPM

Toolchanger Capacity: 40, Side Mount Twin Arm

Spindle Drive: 20HP
