1999 Hitachi Seiki TS 15

1999 Hitachi Seiki TS 15

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

Hitachi Seiki TS 15 CNC Lathe, 1999

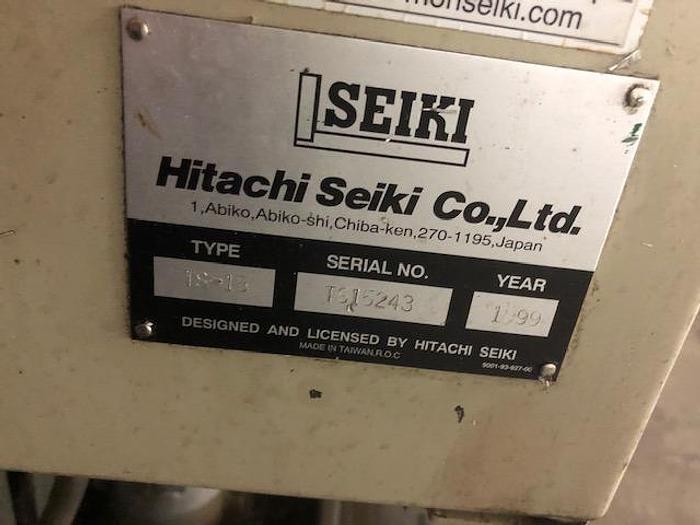

S/N TS15243

Max Turning Diameter: 6.49″

Max Turning Length: 11.80″

Max Bar Capacity: 1.77″

Distance Between Centers: 14.6″

X Axis Travel: 7.48″

Z Axis Travel: 12.59″

Rapid Traverse X Axis: 1181 IPM

Rapid Traverse Z Axis: 1181 IPM

Spindle Nose: A2-5

Spindle Bore: 1.77″

Spindle Speed: 30-6000 RPM

Spindle Motor: 7.5 kw

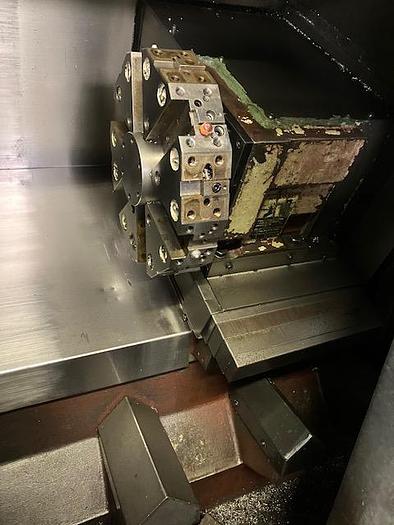

Turret Capacity: 12 Stations

Turret Index Time: 0.5 Second



General:

Power Source: AC 220 V, Three Phase, 60 Hz

Power Requirement: 15kva

Overall Dimensions: 90″ x 65″ x 72″ High

Weight : 9300 lbs Approx.


Equipped with

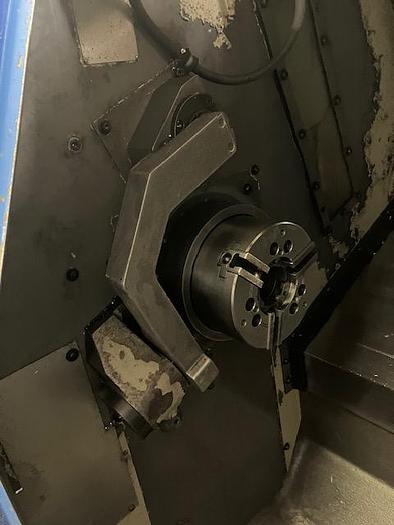

6″ 3 Jaw Hydraulic Chuck w/ 1.65″ Thru Hole

Tool Presetter

12 Position Turret

RS 232 Port Interface

All Available Tooling

All Available Manuals

Specifications

ManufacturerHitachi Seiki
ModelTS 15
Year1999
ConditionUsed
