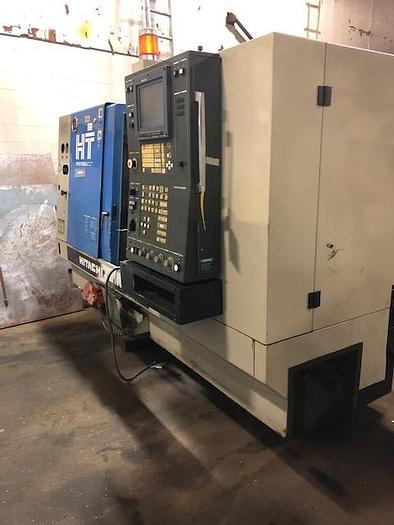

1998 Hitachi Seiki HITEC TURN 23J

HITACHI SEIKI HITEC TURN 23J HT23J CNC LATHE 1998

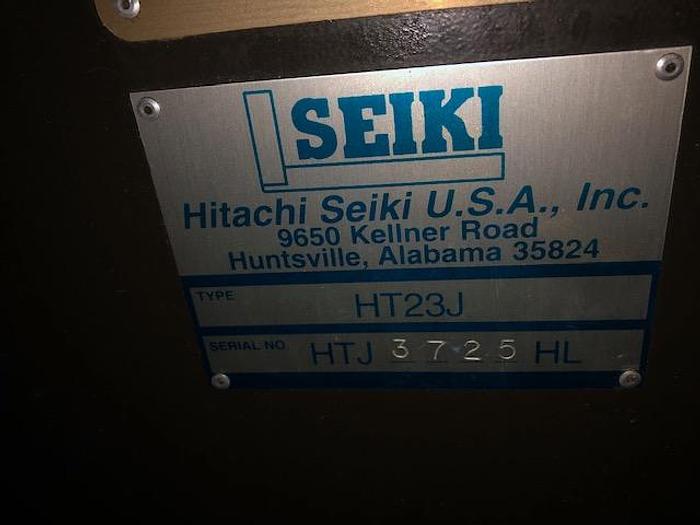

S/N HTJ3725 HL

SPECIFICATIONS

SWING OVER BED ...................... 17.7"

CHUCK CAPACITY ...................... 10"

MAX. MACHINING DIAMETER ............. 13.38"

MAX. MACHINING LENGTH ............... 23.6"

BAR CAPACITY ........................ 2.6"

X-AXIS TRAVEL ....................... 9"

Z-AXIS TRAVEL ....................... 24.8"

SPINDLE SPEED ....................... 30-4000 RPM

SPINDLE NOSE ........................ A2-8

DIAMETER OF SPINDLE THRU HOLE ....... 3"

TYPE OF TURRET ...................... 10 POS. KV

SHANK SQUARE OF SQUARE BIT .......... 1"

SHANK DIA. OF BORING BAR ............ 1.5"

RAPID TRAVERSE X/Z .................. 1181 IPM

SPINDLE MOTOR ....................... 20HP

APPROX. WEIGHT ...................... 10,560 LBS.

Equipped with:

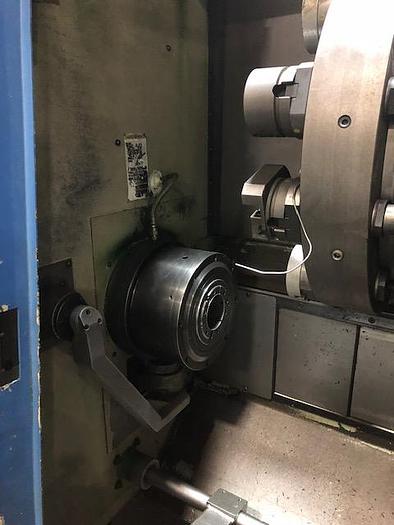

Collet chuck with through hole

Chip conveyer

Parts catcher
