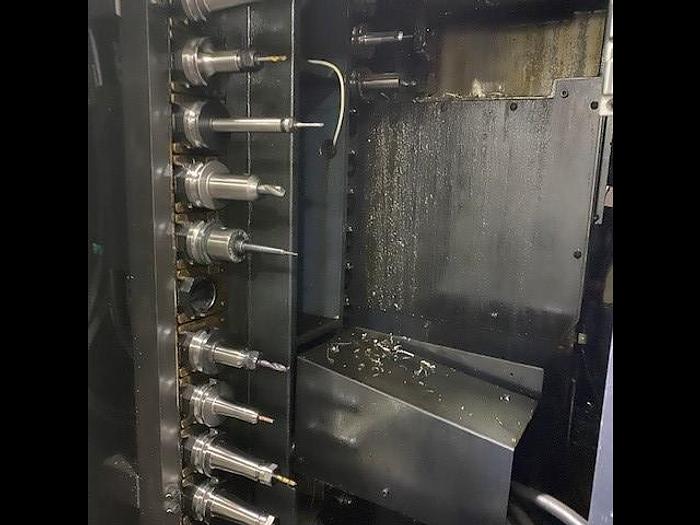

1999 Makino A66

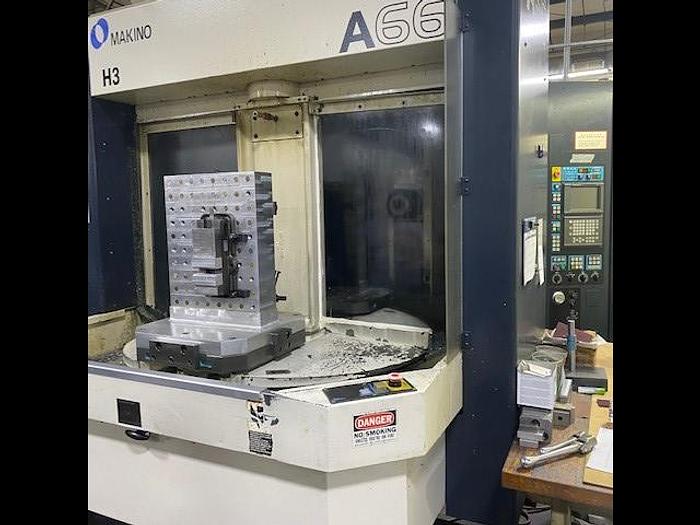

 Makino A66 CNC Horizontal Machining Center

Year of Mfg: 1999

CNC Control: Fanuc Professional 3

Longitudinal Travel (X-Axis): 31.49"

Vertical Travel (Y-Axis): 27.55"

Spindle Travel (Z-Axis): 25.19"

Pallet Dimensions: 19.7" x 19.7"

Maximum Pallet Load: 1,100 LBS

Number of Pallets: 2

Number of Index Positions: 360

Feed Rate, All Axes: 1575 IPM

Rapid Traverse, All Axes: 1575 IPM

Spindle Horsepower: 35 HP

Spindle Speed: 14,000 RPM

Spindle Taper: BT-40

Number of Tool Stations: 60

Electrics: 208-460/3/60

Approximate Machine Dimensions: 159" x 108" x 116" H

Approximate Machine Weight: 21,900 LBS

EQUIPPED WITH:

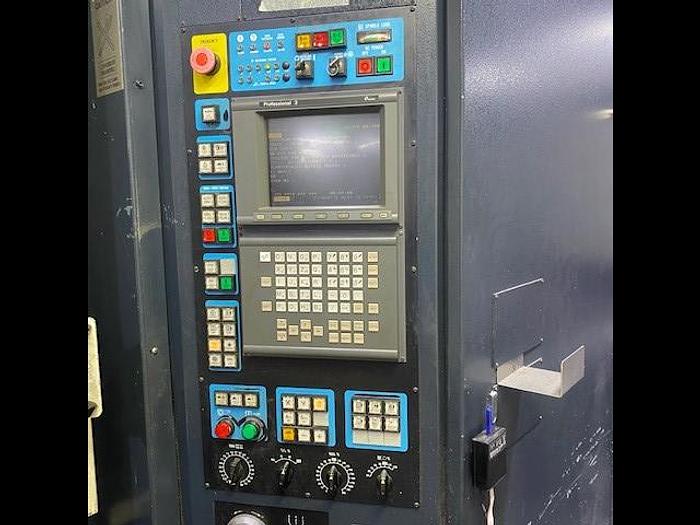

Fanuc 160MC, Professional 3 CNC Control

Additional Machine Information

•            Coolant Thru Spindle

•            Helical Interpolation

•            Part Program Storage of 504KB, 200 Registerable Programs

•            Type “C” Fanuc tool offset memory

•            Expanded Part Program Editing

•            Increased Tool offsets to 200

•            Additional 48 work offsets

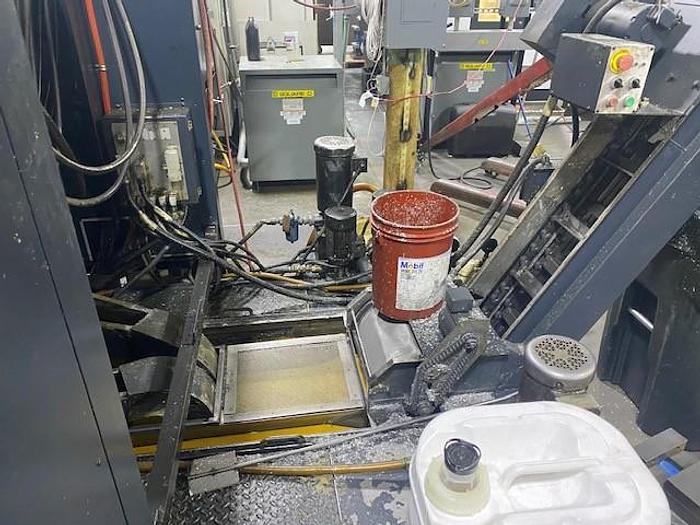

•            Coolant Filtration-Particle Separation System

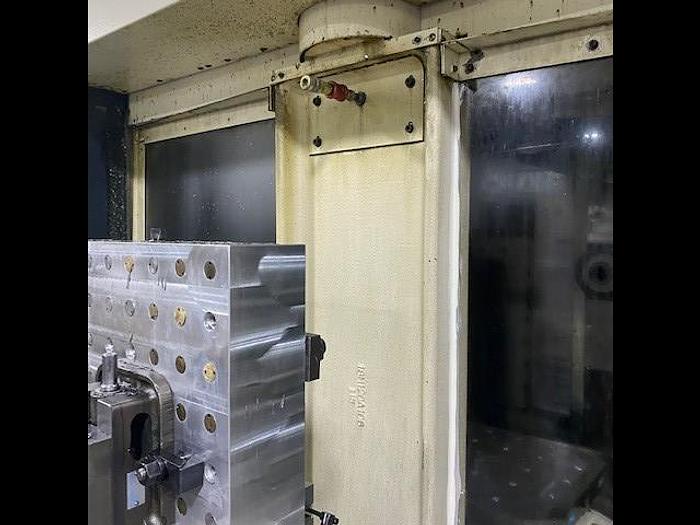

•            1 Degree Indexing Table

•            Micro Fine Chip Conveyor
