2016 Haas DT-1

HAAS DT-1 4-AXIS CNC DRILL/TAP VERTICAL MACHINING CENTER, NEW 2016

Specifications

Travels

X Axis 20"

Y Axis 16"

Z Axis 15.5"

Table

Length 26"

Width 15"

T-Slot Width 5/8"

T-Slot Center Distance 4.92"

Number of Std T-Slots 3

Max. Weight on Table (evenly dist.) 250 lbs.

Spindle

Max Rating 15 HP

Max Speed 15,000 RPM

Max Torque 46 ft-lb@1700 RPM

Drive system inline direct drive

Taper BT/30

Bearing Lubrication Air/Oil

Cooling Air

Tapping

Max Tapping speed 5,000 RPM

Max Tap size (aluminum) 1/2 x 13

Feedrates

Rapids on X/Y/Z 2400 in/min

Max Cutting 1200 in/min

Tool Changer

Type SMTC

Capacity 20+1

Max Tool Diameter 2.0"

Max Tool Diameter (adjacent empty) 2.0"

Max Tool Length 7.0"

Chip-to-Chip (avg) 1.8 sec

Air Required 4 scfm, 100 psi

Coolant capacity 45 gal

Equipped With

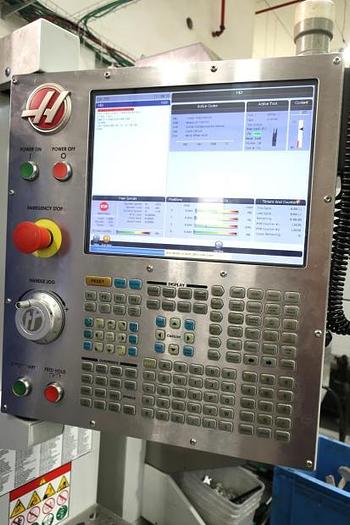

HASS CNC CONTROLS

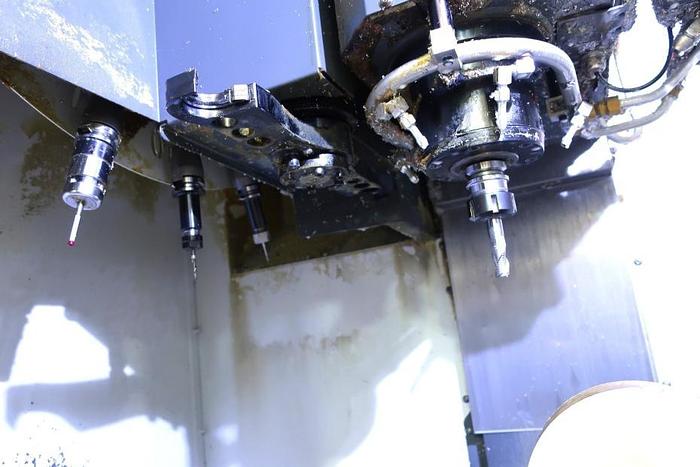

15,000 RPM SPINDLE

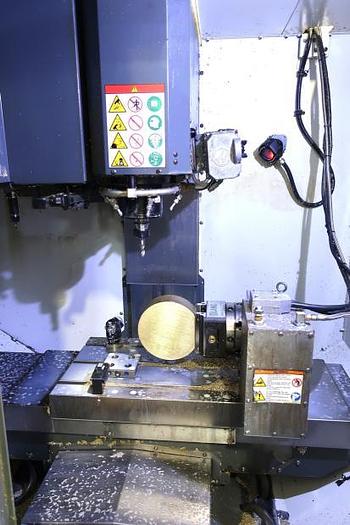

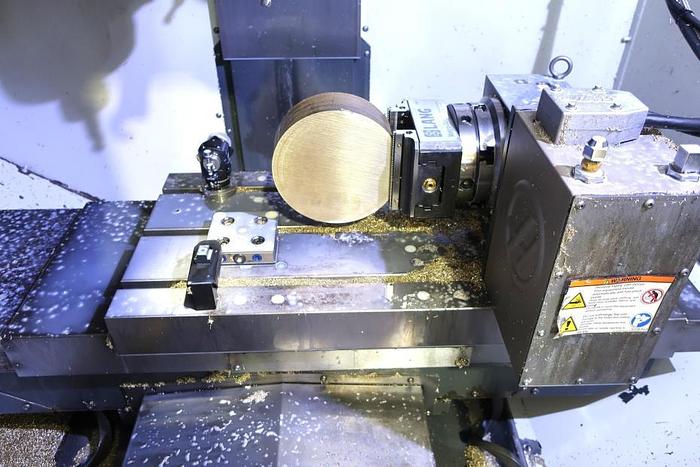

4TH AXIS ROTARY TABLE HTR 160

20 POSITION TOOL CHANGER

PROGRAMABBLE COOLANT NOZZLE

WIRELESS PROBE

HIGH SPEED MACHINING

RIGID TAPPING

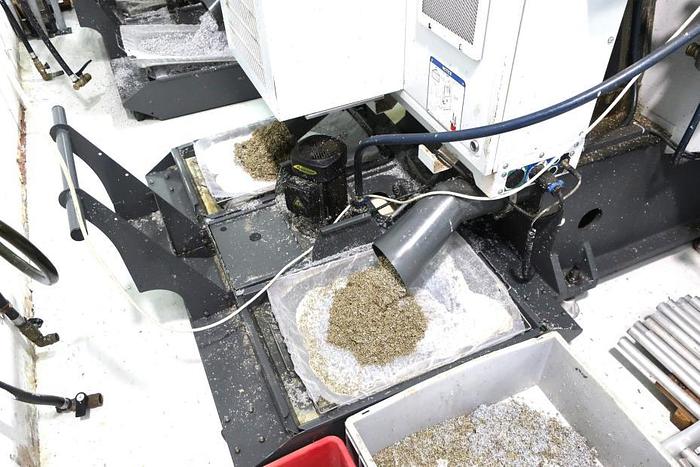

CHIP AUGER

EXPANDED MEMORY

ETHERNET OPTION

COORDINATE ROTATION AND SCALING

SPINDLE ORIENTATION

REMOTE JOG HANDLE

INTUITIVE PROGRAMING

VISUAL QUICK CODE

USER DEFINED MACROS
