2016 Haas DM-2

Sold

2016 Haas DM-2

Illinois

Description

HAAS DM-2 CNC 4-AXIS DRILL TAP MILL VERTICAL MACHINING CENTER, NEW 2016



Specifications

X 28.0

Y 16.0

Z 15.5

Power 15.0

RPM 15000.0

# ATC 18.0

Taper 40

Table-W 15.0

Table-L 34.0

# Axis 4.0

TRAVELS S.A.E METRIC

X Axis 28.0 in 711 mm

Y Axis 16.0 in 406 mm

Z Axis 15.5 in 394 mm

Spindle Nose to Table (~ max) 21.5 in 546 mm

Spindle Nose to Table (~ min) 6.0 in 152 mm

SPINDLE S.A.E METRIC

Max Rating 15.0 hp 11.2 kW

Max Speed 10000 rpm 10000 rpm

Max Torque 46.0 ft-lbf @ 1700 rpm 62.0 Nm @ 1700 rpm

Drive System Inline Direct-Drive Inline Direct-Drive

Taper CT or BT 40 CT or BT 40

Bearing Lubrication Air / Oil Injection Air / Oil Injection

Cooling Air Cooled Air Cooled

TABLE S.A.E METRIC

Length 34.0 in 864 mm

Width 15.0 in 381 mm

T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm

T-Slot Center Distance 4.92 in 125 mm

Number of Std T-Slots 3 3

Max Weight on Table (evenly distributed) 250 lb 113 kg

FEEDRATES S.A.E METRIC

Max Cutting 1200 ipm 30.5 m/min

Rapids on X 2400 ipm 61.0 m/min

Rapids on Y 2400 ipm 61.0 m/min

Rapids on Z 2400 ipm 61.0 m/min

AXIS MOTORS S.A.E METRIC

Max Thrust X 2550 lbf 11343 N

Max Thrust Y 2550 lbf 11343 N

Max Thrust Z 4200 lbf 18683 N

TOOL CHANGER S.A.E METRIC

Type SMTC SMTC

Capacity 18+1 18+1

Max Tool Diameter (full) 2.5 in 64 mm

Max Tool Length (from gage line) 7 in 178 mm

Chip-to-Chip (avg) 1.6 s 1.6 s

TAPPING S.A.E METRIC

Max Tapping Speed 5000 rpm 5000 rpm

GENERAL S.A.E METRIC

Coolant Capacity 55 gal 208 L

AIR REQUIREMENTS S.A.E METRIC

Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar

Inline Air Hose 3/8 in 3/8 in

Coupler (Air) 3/8 in 3/8 in

Air Pressure Min 80 psi 5.5 bar

DIMENSIONS - SHIPPING S.A.E METRIC

Domestic Pallet 91 in x 100 in x 98 in 231 cm x 254 cm x 249 cm

Export Pallet 91 in x 100 in x 98 in 231 cm x 254 cm x 249 cm

Weight 5350 lb 2427.0 kg

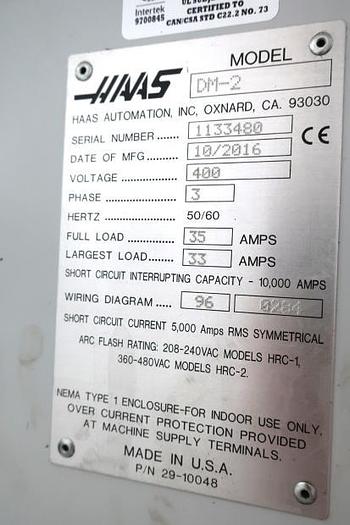

ELECTRICAL SPECIFICATION S.A.E METRIC

Spindle Speed 10000 rpm 10000 rpm

Drive System Inline Direct-Drive Inline Direct-Drive

Spindle Power 15.0 hp 11.2 kW

Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC

Full Load Amps (3 Phase) - Low 40 A 40 A

Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC

Full Load Amps (3 Phase) - High* 20 A 20 A



Equipped With

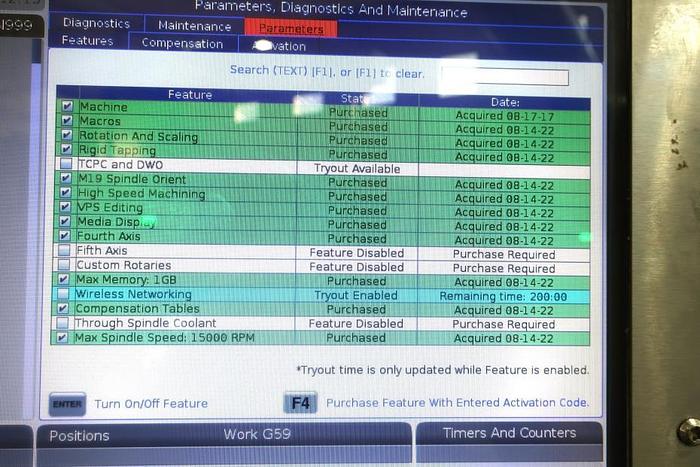

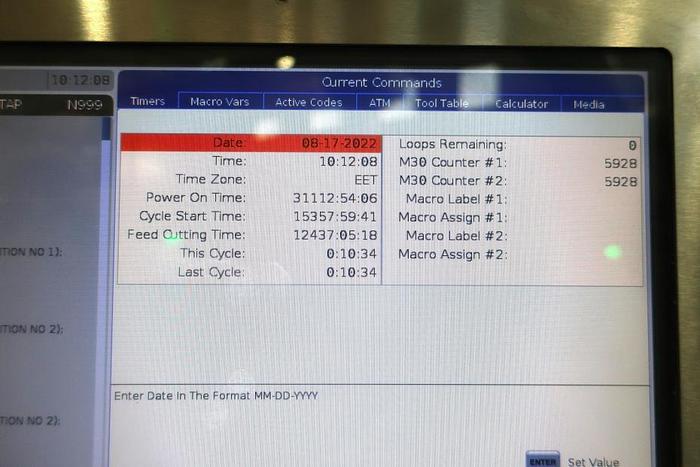

HAAS CNC CONTROL

15,000 RPM SPINDLE

18 POSITION TOOL CHANGER

40 TAPER

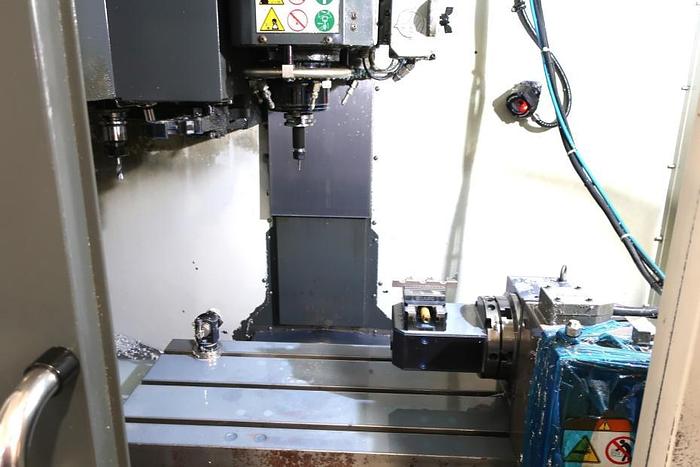

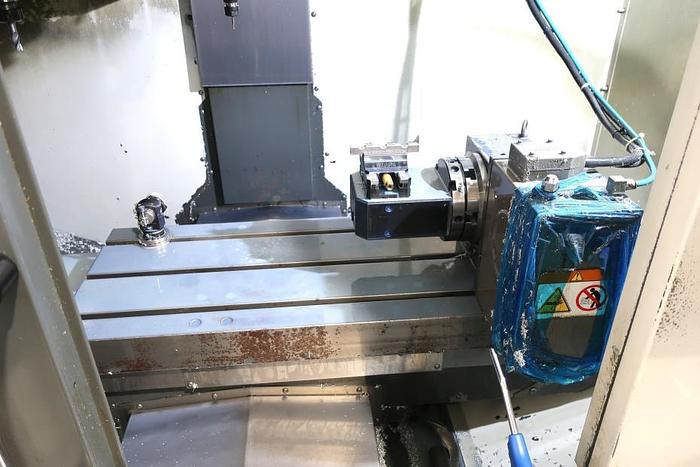

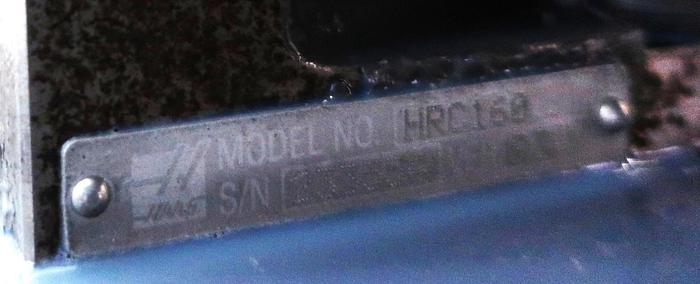

4TH AXIS ROTARY TABLE

PROBE

HIGH SPEED MACHINING

RIGID TAPPING

REMOTE JOG HANDLE

PCOOL, ETHERNET

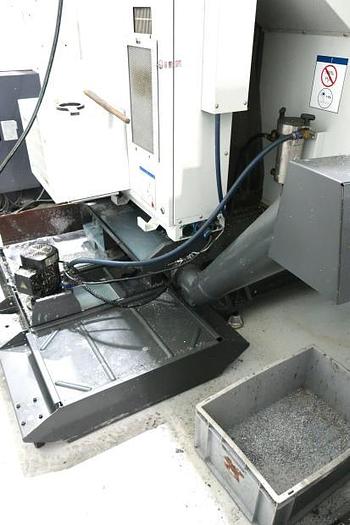

CHIP AUGER

COOLANT SYSTEM

40 TAPER

Specifications

ManufacturerHaas
ModelDM-2
Year2016
ConditionUsed
