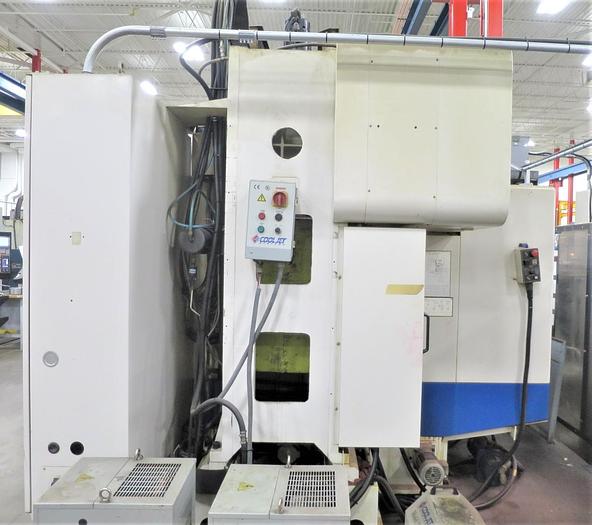

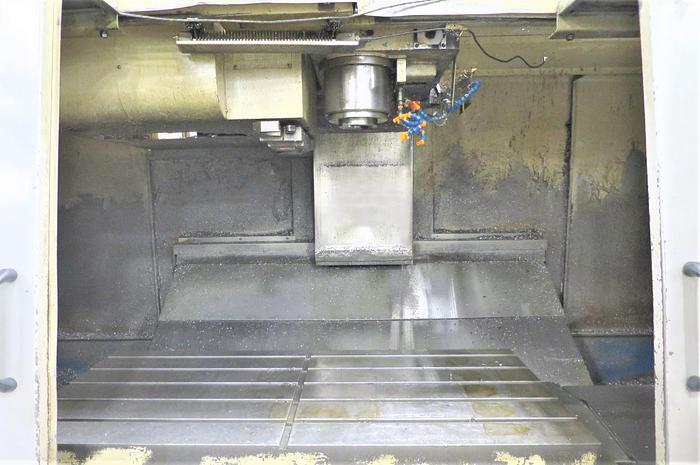

1997 DAEWOO DMV-650 3-AXIS 50 TAPER CNC VERTICAL MACHINING CENTER

1997 DAEWOO DMV-650 3-AXIS 50 TAPER CNC VERTICAL MACHINING CENTER

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

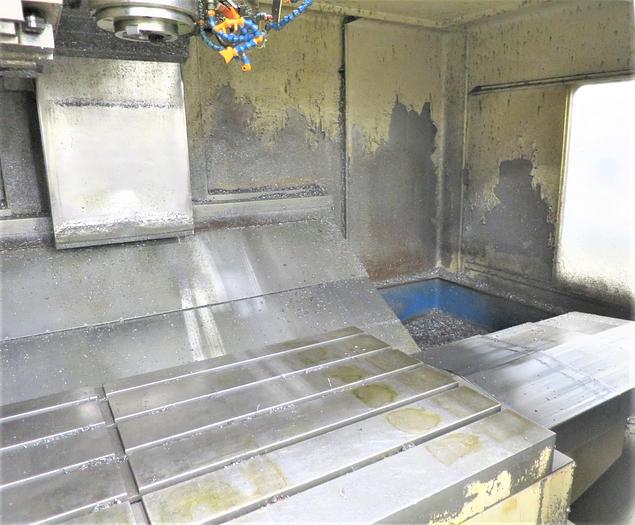

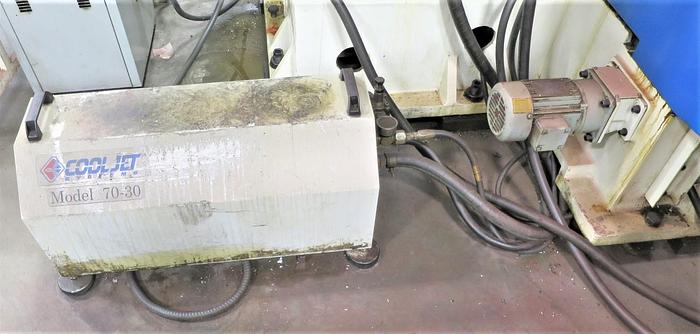

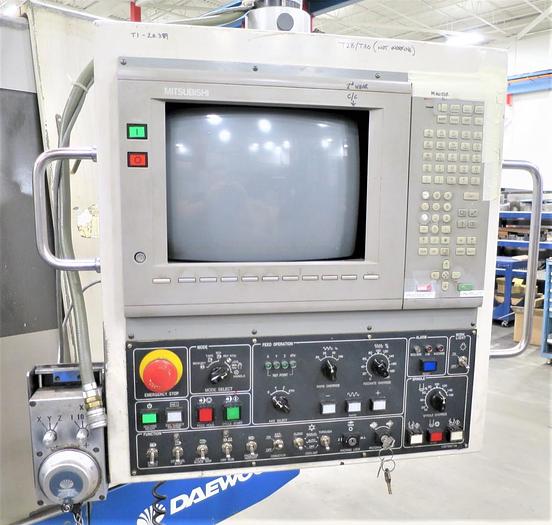

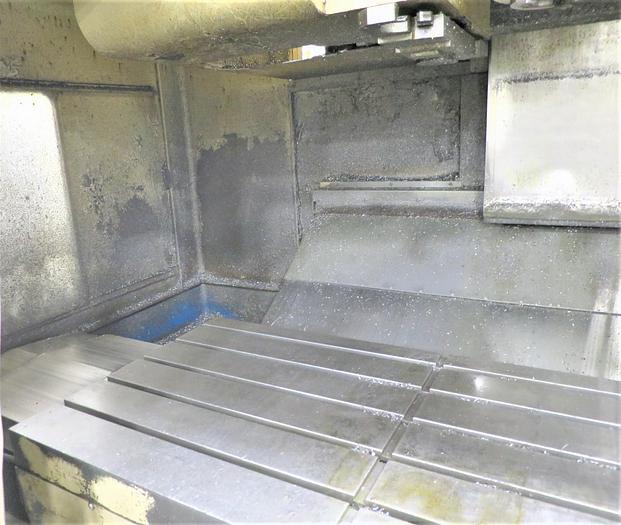

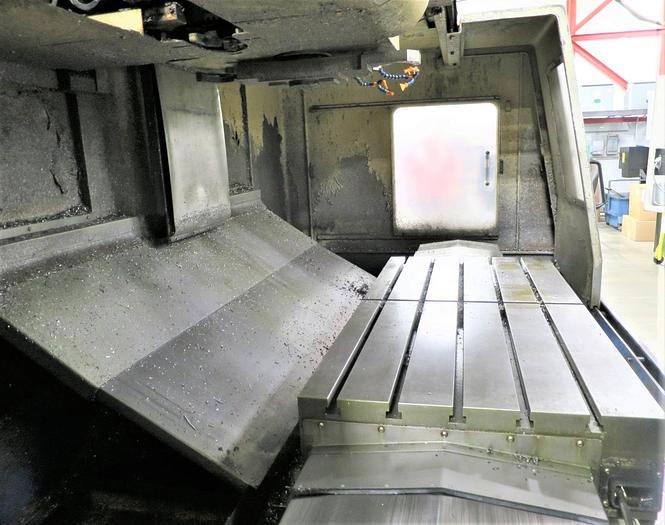

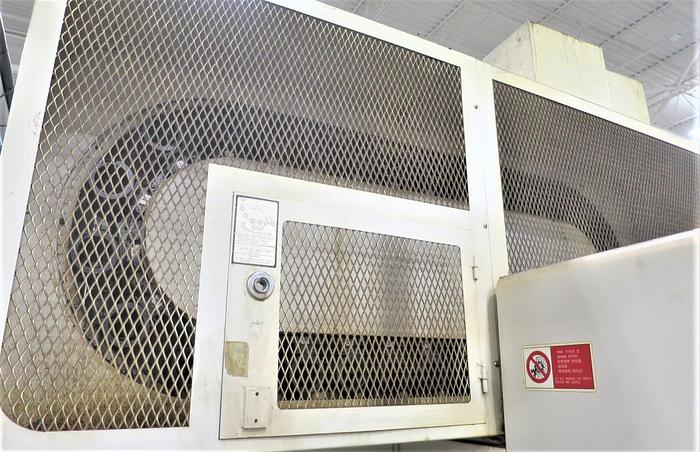

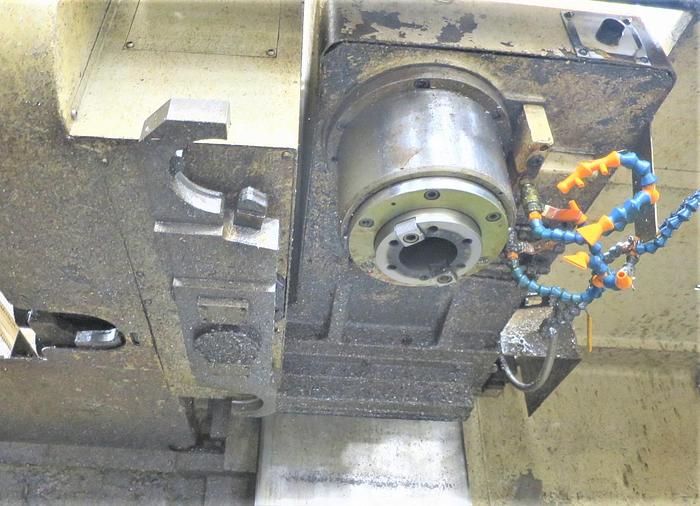

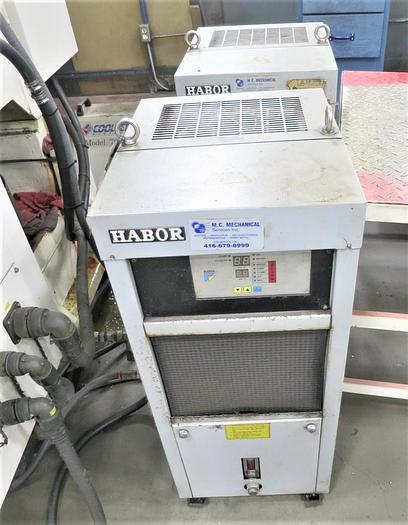

DAEWOO DMV-650 3-AXIS 50 TAPER CNC VERTICAL MACHINING CENTER Specifications DAEWOO DMV-650, 50 x 25.6 x 22,MITSUBISHI CNC, COOL THRU, CAT 50, DATE OF MANUFACTURE /1997 TABLE SIZE 55.1" x 27.6" MAX. TABLE LOAD (EVENLY DISTRIB.) 2,646 LBS SPINDLE NOSE TO TABLE TOP 7.9" - 29.9" X AXIS TRAVEL 49.6" Y AXIS TRAVEL 25.6" Z AXIS TRAVEL 22.0" RAPID TRAVERSE RATE X & Y AXES 787 IPM RAPID TRAVERSE RATE Z AXIS 709 IPM CUTTING FEED RATE ALL AXES 0.1 - 250 IPM SPINDLE SPEED RANGES (GEARED) 2 SPEED SPINDLE SPEEDS 0 - 6,000 RPM SPINDLE TAPER CAT 50 SPINDLE MOTOR 25 HP TOOL CHANGER CAPACITY 30 STATIONS TOOL CHANGE TIME (TOOL TO TOOL) 2.5 SECONDS MAX. TOOL WEIGHT 33.1 LBS APPROX. DIMENSIONS 137" x 118" x 132" APPROX. WEIGHT 24,000 LBS Equipped With MITSUBISHI 520 CNC CONTROL WITH 14" LCD SCREEN RS-232C PORT INTERFACE FOR DNC OPERATION RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING) COOLANT THROUGH THE SPINDLE (STD. PRESSURE) REMOTE JOG HANDLE, SPINDLE OIL COOLING SYSTEM STANDARD COOLANT SYSTEM WITH TANK & PUMP FULLY ENCLOSED GUARDS, ALL AVAILABLE MANUALS NICE FROM MOLD SHOP

Specifications

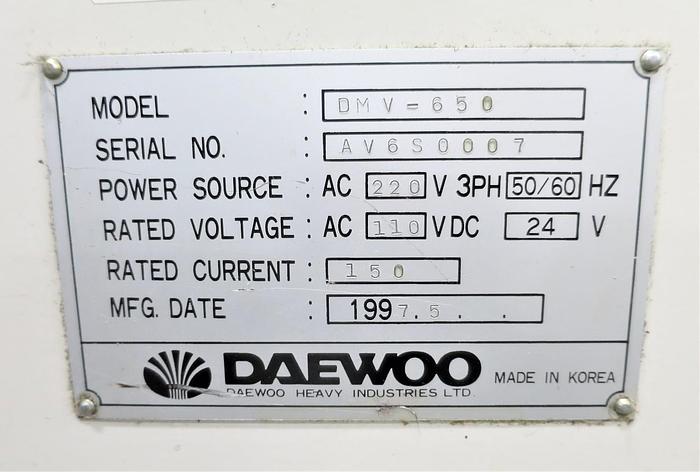

ManufacturerDaewoo
ModelDMV-650
Year1997
ConditionUsed
