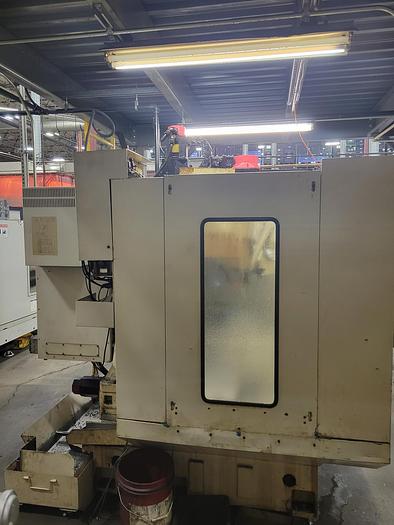

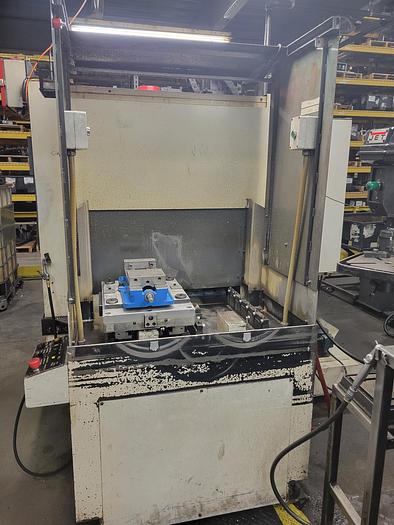

1996 FANUC ROBODRILL ALPHA T10C

FANUC, ROBODRILL ALPHA T10C, N/C & CNC, DRILLING & TAPPING MACHINES 1996

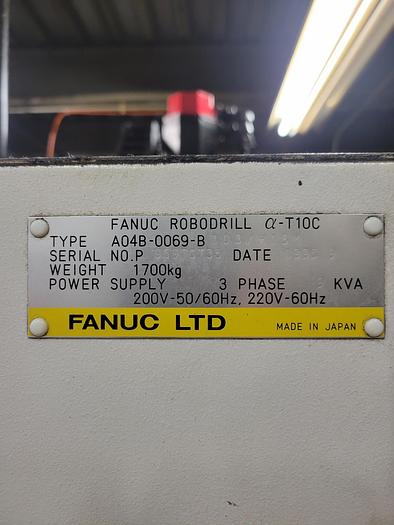

S/N 989TG735

Specifications:

Approximate Age/Installed: MFG 12-1995 installed 1996

Max. Table Load: 330 lbs.

Spindle Nose to Table Top: 5.5" - 16.1"

X-Axis Travel: 20.0"

Y-Axis Travel: 14.96"

Z-Axis Travel: 11.81"

Rapid Traverse: X, Y, Z 1417 IPM / 1969IMP

Spindle Taper: BT 35

Spindle Speed: 8,000 RPM

Spindle During Tapping: 6,000 RPM (Max.)

Spindle Motor: 7.5 HP

Tool Changer Capacity: 10 + 1 Tools

Tool Change Time: 1.1Seconds

Chip to Chip Time: 1.8 Seconds

Approximate Dimensions: 77" x 105.2" x 95.7"

Machine Weight: 4,078 lbs + indexer

Equipped With:

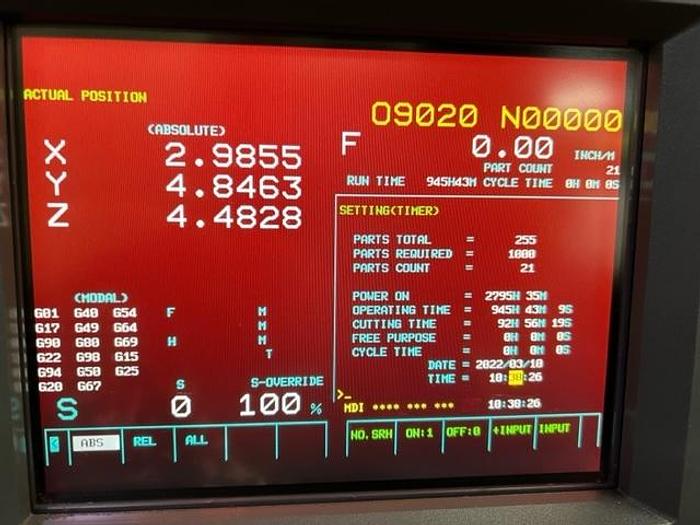

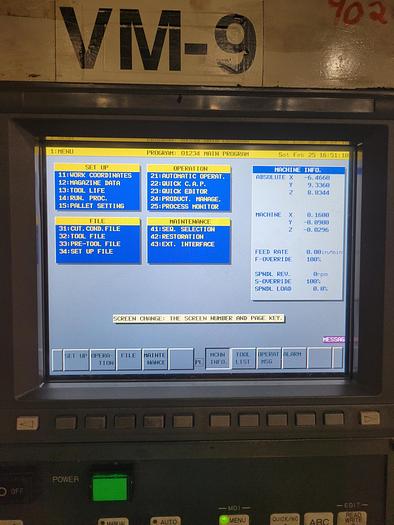

FANUC 16 M CNC CONTROL

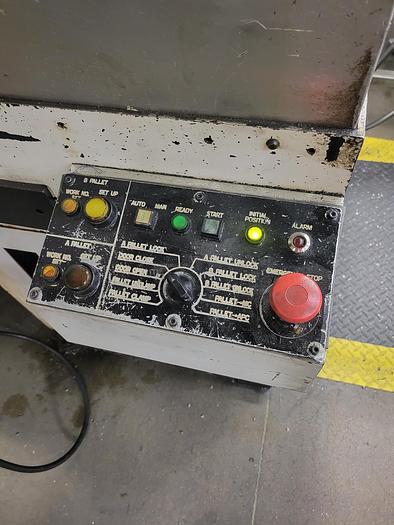

Manual Pulse Generator

Front Door Interlock

Spindle Air Blast

(10) Position Turret

RIGID TAP

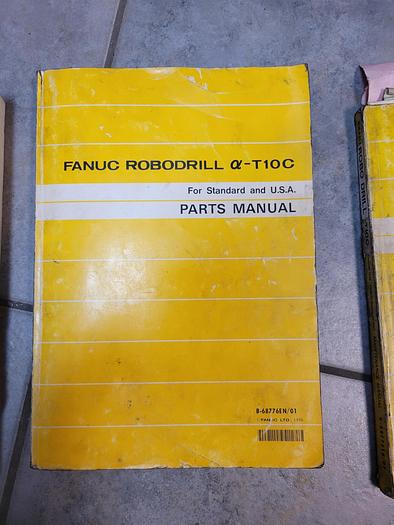

ALL AVAILABLE MANUALS

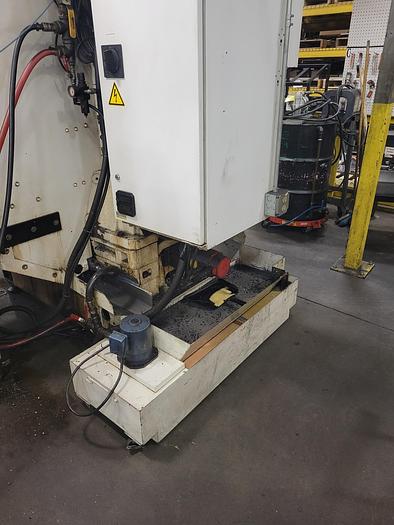

COOLANT TANK AND PUMP

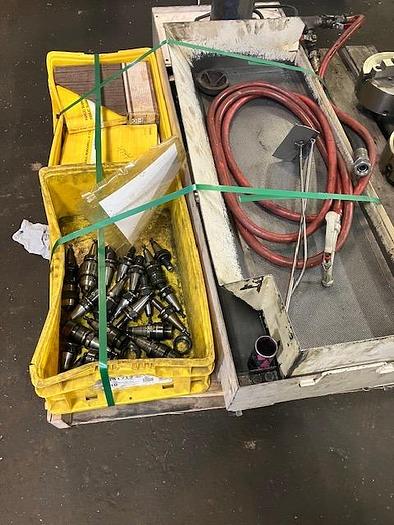

 Assorted Tooling

(Vices not included)
