2006 HAAS GR510

Contact us for price

Illinois

orCall 732-367-4130

Description

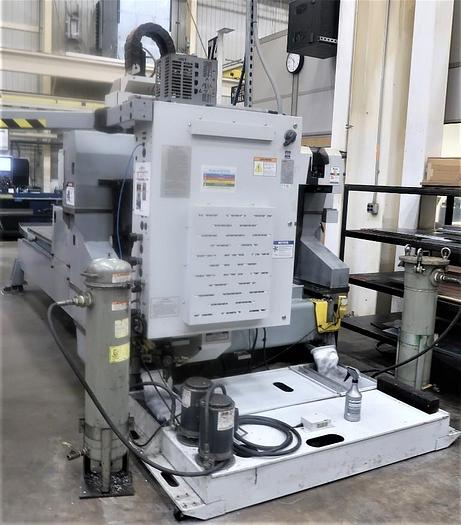

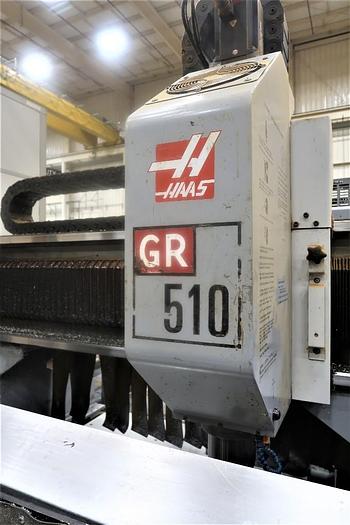

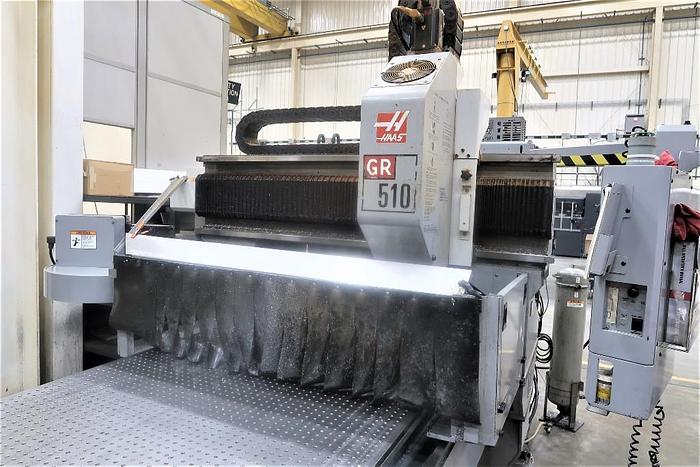

2006 5'X10' HAAS MODEL GR510 3-AXIS CNC ROUTER WITH COOLANT THRU SPINDLE
Specifications
Travels:
X-Axis 121"
Y-Axis 61"
Z-Axis 11"
Spindle Nose to Table (Max) 13.5"
Spindle Nose to Table (Min.) 2.5"

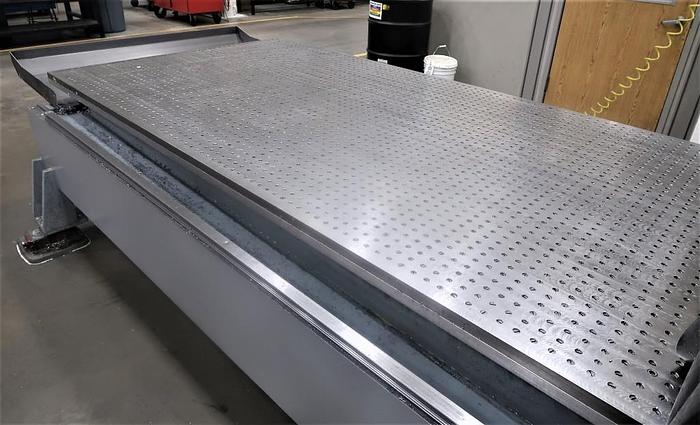

Table:
Length 122"
Width 53"
Bewteen Columns 62"
Max. weight on table (evenly distributed) 6000 lbs
Spindle:
Max. Rating 15 HP
Max. Speed 15,000 RPM
Max. Torque 17 ft-lb @4600 RPM
Drive system Direct speed Belt drive
Taper CT 40
Feedrates:
Rapids on X 800 in/min
Rapids on Y 2100 in/min
Rapids on Z 1100 in/min
Max. Cutting 800 in/min
Axis Motors:
Max. Thrust X 2520 Lb
Max. Thrust Y 1020 Lb
Max. Thrust Z 2050 Lb
Tool Changer:
Type 20
Capacity 3.5"
Max. Tool Diameter (full) 3.5"
Max. Tool weight 12 Lb
General:
Air required 4 scfm, 100 PSI

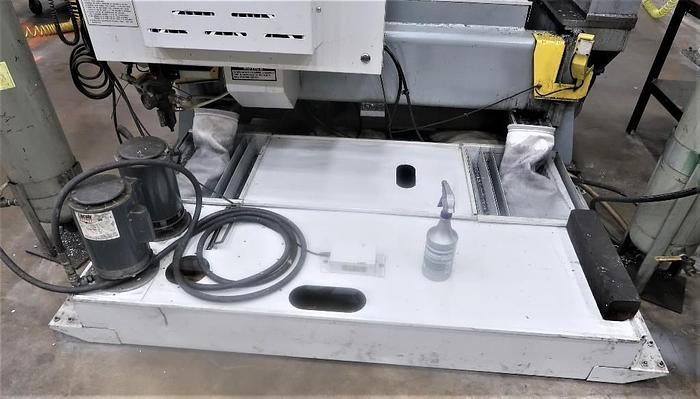

Coolant Capacity 95 Gal
MOTOR SPECIFICATIONS:
15 HP

Equipped With

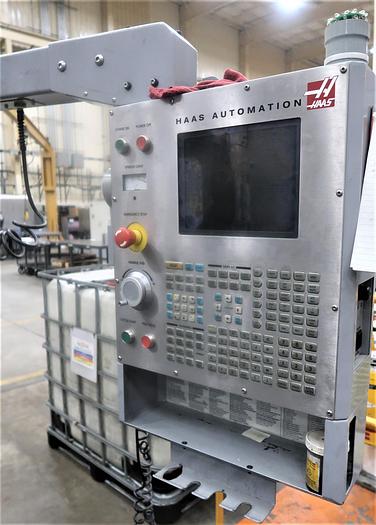

Haas CNC Controls
15,000 RPM
40 Taper
15 HP Spindle

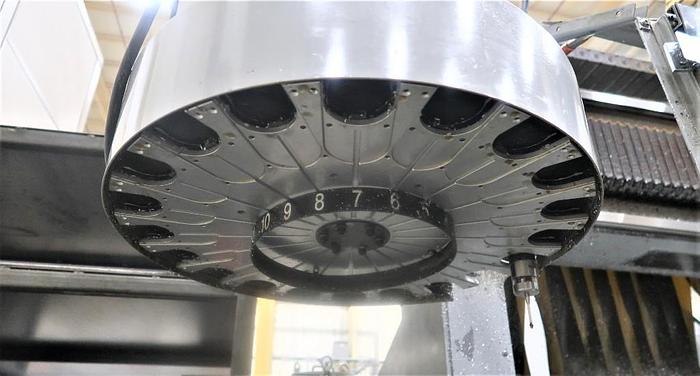

20 Position Automatic Tool Changer
Rigid Tapping
Floppy Disc Drive/ usb
Thru spindle Coolant System
Remote Jog Handle
high speed machining
rigged tapping
macros
rotational & scaling
spindle orientation
probe
power fault detection module

Specifications

ManufacturerHAAS
ModelGR510
Year2006
ConditionUsed
