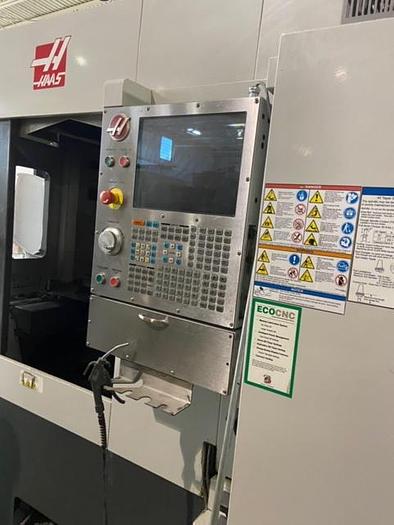

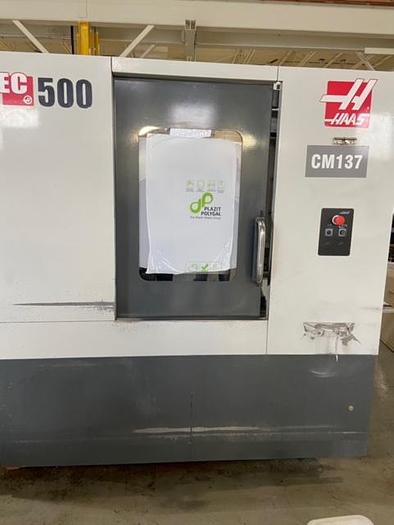

2012 HAAS EC500

Contact us for price

Livonia, MI

orCall 732-367-4130

Description

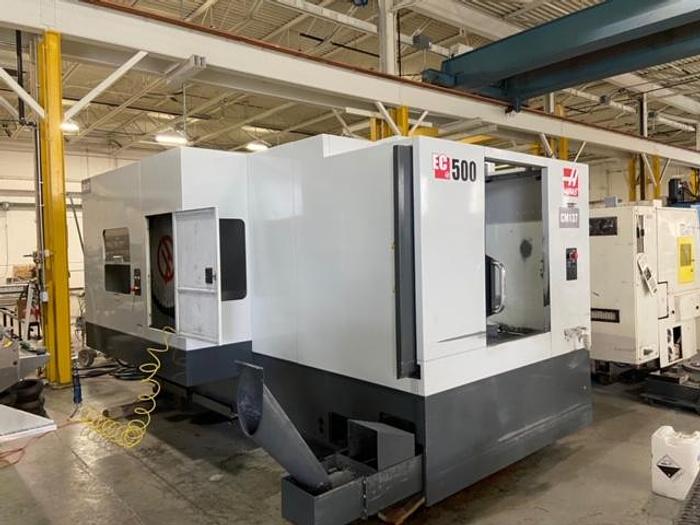

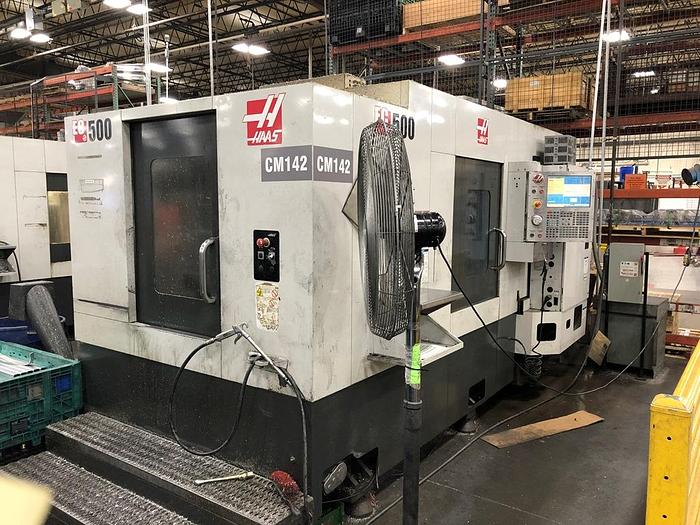

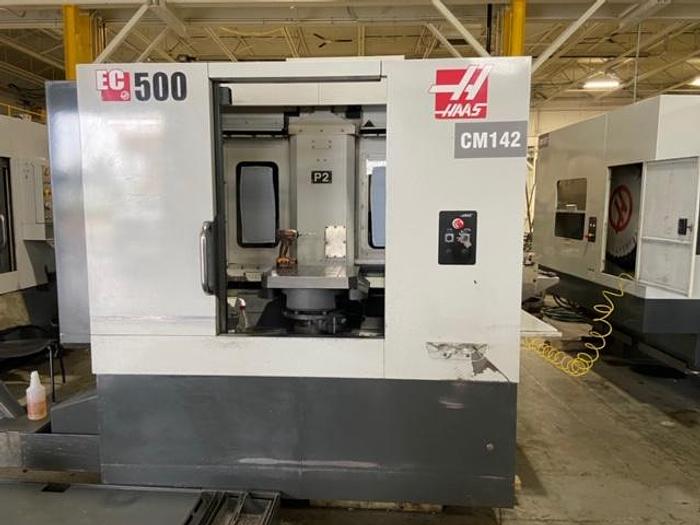

2012 Haas EC-500 HMC

HORIZONTAL MACHINING CENTER; 32" X 20" X 28"
(813 X 508 X 711 MM),
40 TAPER,
500 MM
TWIN-PALLET SYSTEM, 20 HP (14.9 KW)
VECTOR DRIVE, INLINE DIRECT-DRIVE,
12000 RPM,
40+1 SIDE-MOUNT TOOL CHANGER,
TRIPLE CHIP AUGER SYSTEM,
1-DEGREE PALLET INDEXING,
SHOWER
WASHDOWN,
1 MB PROGRAM MEMORY,
MEMORY LOCK KEY SWITCH,
15" COLOR LCD MONITOR,
USB PORT
RIGID TAPPING.
TSC-1000 THROUGH-SPINDLE COOLANT, 1000PSI
WIRELESS INTUITIVE PROBING SYSTEM; RENISHAW

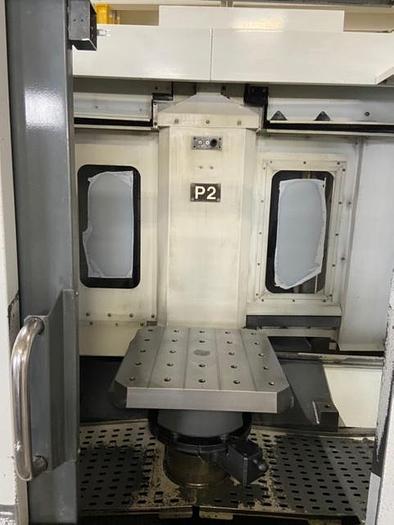

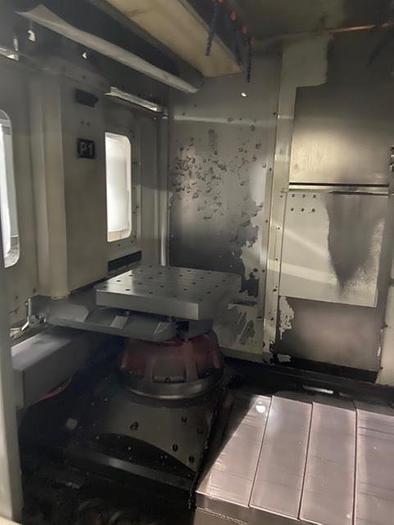

Pallet:

Pallet Size (2 Pallets): 19.69" x 19.69"

Travels:

X-Axis Travel: 32"
Y-Axis Travel: 20"
Z-Axis Travel: 28"

Spindle:

Spindle Speeds (RPM): 12, 000 rpm
Spindle Taper: 40
Main Motor (HP): 30 hp

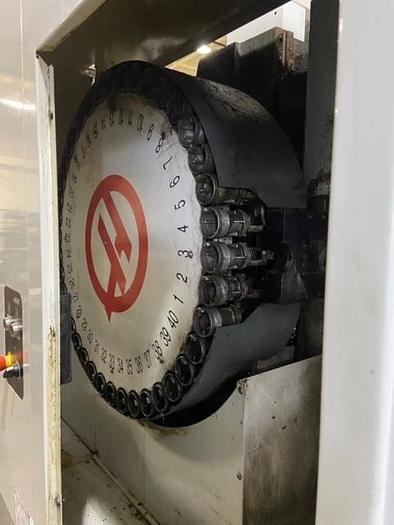

Tool Changer:

Tool Changer Positions: 40+1
Max. Tool Diameter (adjacent empty): 6"
Max. Tool Diameter (full): 3"
Max. Tool Length (from gage line): 12"
Max. Tool Weight: 12 Lbs
Tool-to-Tool (avg): 1.6 seconds

Specifications

ManufacturerHAAS
ModelEC500
Year2012
ConditionUsed
