2005 NAKAMURA-TOME WT-300

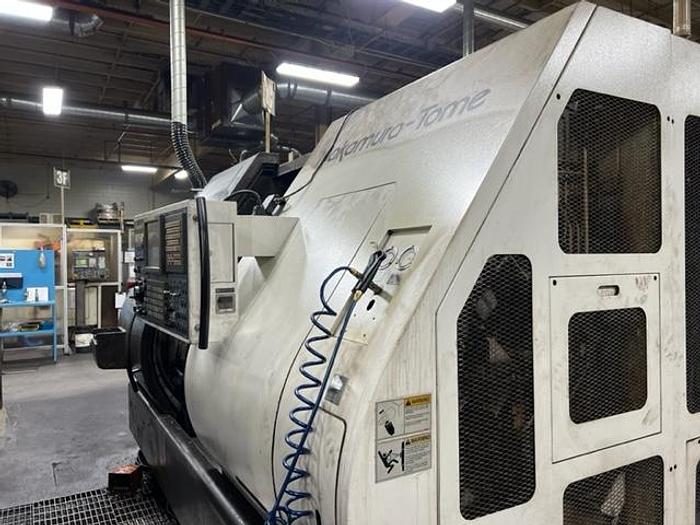

The 2005 Nakamura-Tome WT-300 is a versatile and efficient horizontal CNC lathe, ideal for precise and complex machining tasks. Equipped with a Fanuc 18i-TB CNC control, it supports eight-axis movement, allowing for intricate operations. The primary spindle, with an A2-8 nose, operates at speeds up to 3,500 RPM and has a bar capacity of 2.56 inches. The machine's main motor provides 25 HP, and the spindle comes with a 10-inch chuck. Additionally, the lathe includes a sub-spindle with an A2-6 nose and speeds reaching 4,500 RPM, enhancing its machining capabilities further. The sub-spindle's bar capacity is 2.5 inches, paired with an 8-inch chuck, supported by another 25 HP motor. For additional functionality, the WT-300 features live tooling with speeds up to 6,000 RPM and a 7.5 HP motor, accommodating various complex tasks with its upper and lower turret capacity of 24 tools each. This lathe, measuring 166 x 100 x 89 inches and weighing 31,000 pounds, is also outfitted with a coolant tank, a parts catcher, and a manual guide. This used unit is in good condition, boasting a robust construction with a swing of 12.2 inches and a turning diameter of 10.6 inches, perfect for durable and precise machining processes.

Nakamura-tome WT-300 - Horizontal Lathe 2005

Year  2005

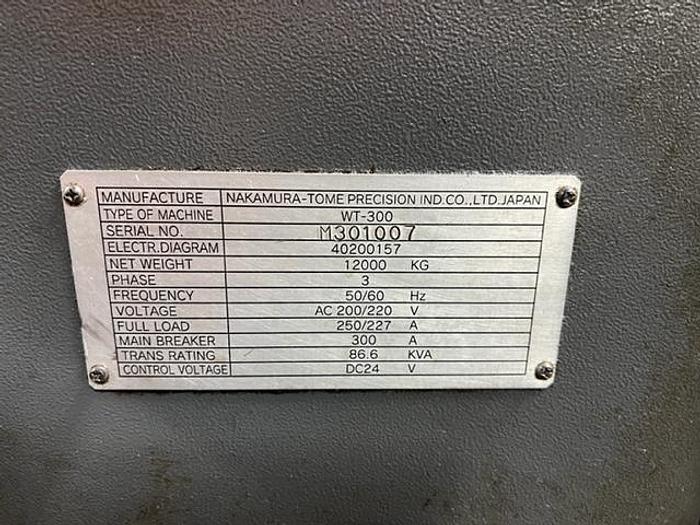

S/N M301007

Control Type  Fanuc 18i-TB

# Axis  8

Swing  12.2"

Turning Diameter  10.6"

Center Distance  43.3"

Chuck Size  10"

Bar Capacity  2.56"

X Axis Travel  7.4"

X2 Travel  7.7"

Z Axis Travel  30.7"

Z2 Travel  30.7"

Y Axis Travel  +/-2.4"

B Axis Travel (Sub Spindle)  33.5"

C1/C2 Axis Index  0.001°

Spindle Nose  A2-8

Spindle Speed (RPM)  3,500

Main Motor  25 HP

Sub Spindle  yes

Sub Spindle Chuck  8"

Sub Spindle Bar Capacity  2.5

Sub Spindle Nose  A2-6

Sub Spindle Speed 4,500 rpm

Sub Spindle Motor (HP)  25 hp

Y Axis  yes

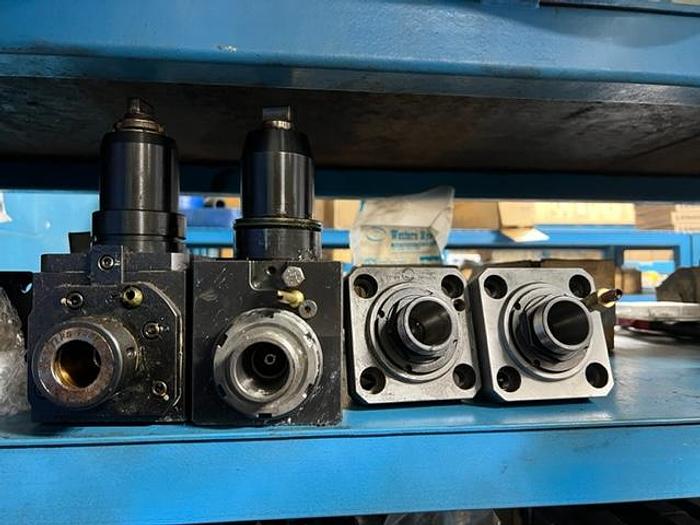

Live Tooling  yes

Live Tooling Speed  6,000 rpm

Live Tooling Motor  7.5 hp

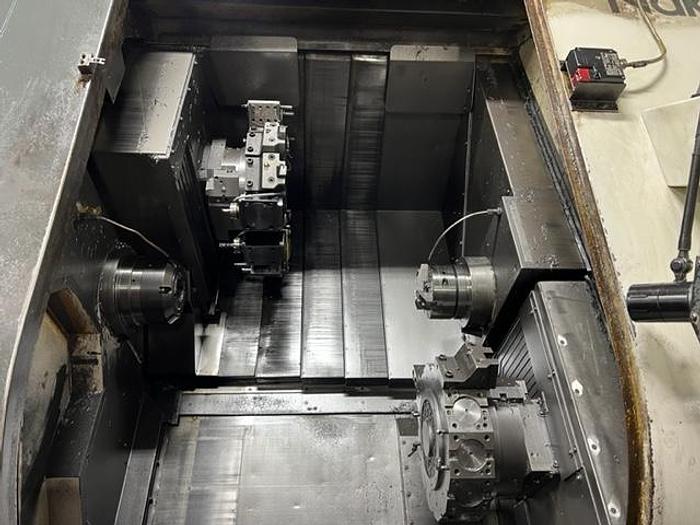

Turret Capacity  24 Upper / 24 Lower

Dimensions  166" x 100" x 89 "

Weight  31,000 pounds

EQUIPPED WITH:

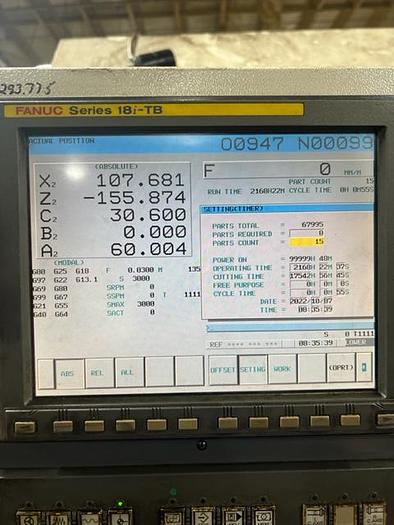

- Fanuc 18i-TB CNC Control

- Collet Chuck on Main Spindle

- Coolant Tank

- Live Tooling

- Full C axis on Main & Sub Spindle

- Y Axis on Upper Turret

- Parts Catcher

- Manual Guide i

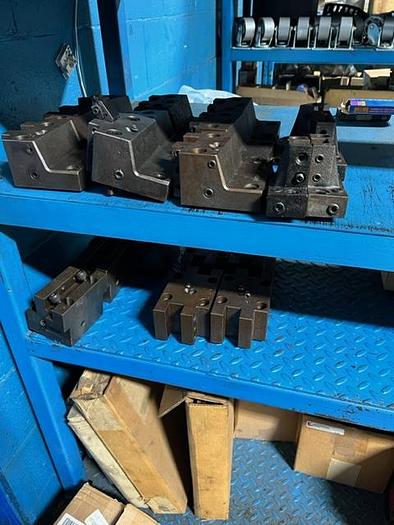

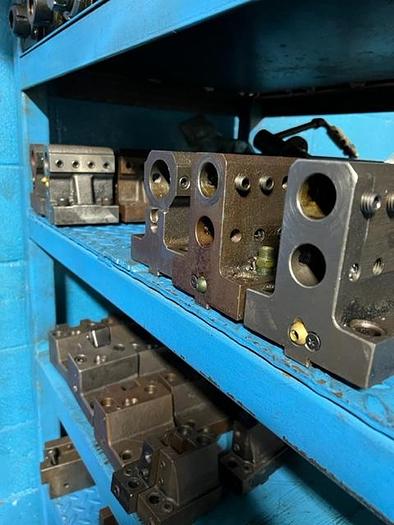

- Misc. Tooling Available
