2007 Daewoo Puma 240MC
No longer available
2007 Daewoo Puma 240MC
Livonia, MI
Description
DAEWOO CNC TURNING CENTER
MODEL: PUMA 240MC
YEAR: 2007
Specifications:

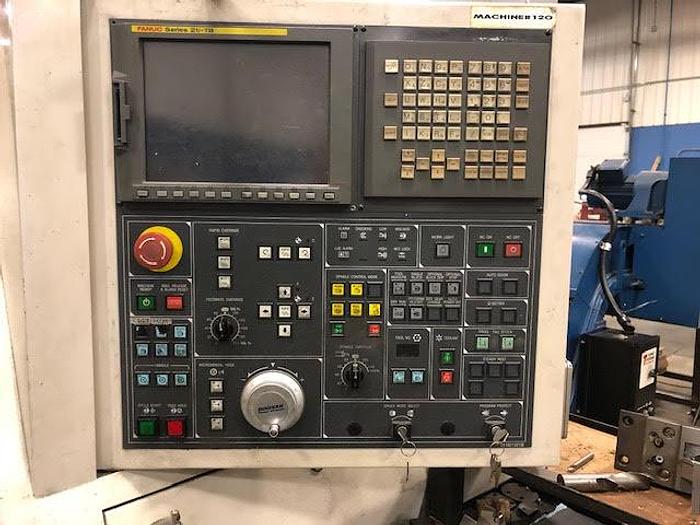

Control .................................................... Fanuc 21iTB
Spindle/Bore/Max Bar Capacity ..... 2.99"/2.5"
Maximum Turning Length ....................... 19.4"
Max Turning Diameter ............................ 11.4"
Spindle Speed .................................. 4,500 RPM
Spindle Motor ......................................... 20 HP
Swing Over Carriage ............................... 15.4"
C-Axis Programmable Angle/Rapid
Rate ...............................................0.001 degrees
X Axis Travel.................................................. 8"
Z Axis Travel ............................................ 22.8"
Turret Positions ............................................ 12
Rotating Tool Speeds ............ 60 to 6,000 RPM
Rotating Tool Motor ................................. 5 HP
Tailstock Quill diameter/Stroke ........ 3"/3.15"
Floor Space ...................................... 118" x 66"
Machine Weight ................................ 9,350 Lbs
Equipped With:
Programmable Tailstock
Fanuc Control
CHIP CONVEYER
TOOL PRESETTER
PARTS CATCHER
Specifications
Manufacturer | Daewoo |
Model | Puma 240MC |
Year | 2007 |
Condition | Used |
