2007 MORI SEIKI NT4200 DCG

2007 MORI SEIKI NT4200 DCG
Contact us for price
Livonia, MI
Description

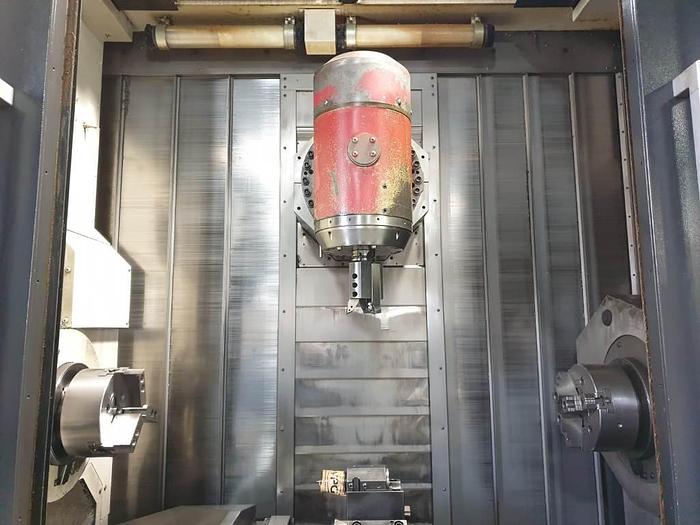

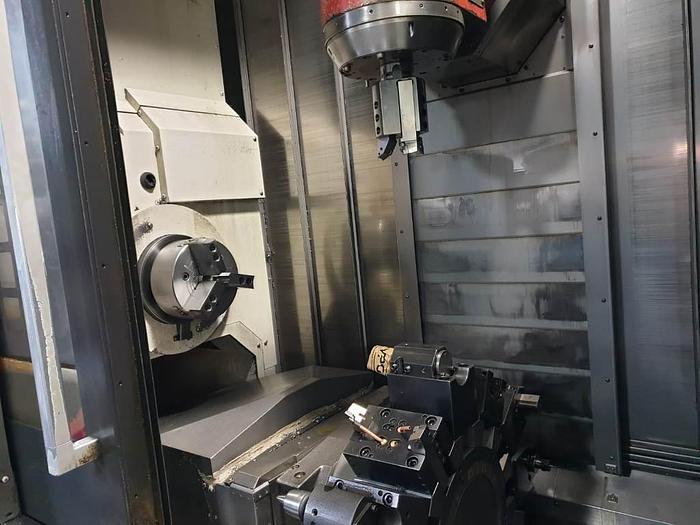

2007 Mori Seiki NT4200 DCG CNC Lathe, twin spindle with sub turret.
This is a very nice well kept clean machine
Workpiece Swing: 28.7"
Swing Over Cross Slide: 15.7"
Max. Turning Diameter: 13.6"
Max. Turning Length: 41.8"
Distance Between Spindles: 53"
Bar Work Capacity (Main + Sub spindle): 2.6"
Tool Spindle X-Axis Travel: 29.5"
Tool Spindle Y-Axis Travel: +/- 8.3"
Tool Spindle Z-Axis Travel: 44.1"
Tool Spindle B-Axis Rotation Range: +/- 120°

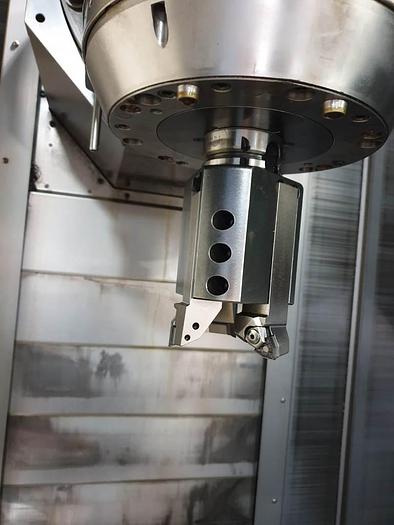

Tool Spindle Connection: Capto C6
Turret X-Axis Travel: 7.7"
Turret Z-Axis Travel: 39.8"
Main Spindle Speed: 5,000 RPM
Main Spindle Nose Type: JIS A2-6
Main Spindle Through-Hole: 2.9"
Min. Main Spindle Indexing Angle: .0001°
Main Spindle Bearing Inside Diameter: 4.7"
Sub Spindle Speed: 5,000 RPM
Sub Spindle Nose Type: JIS A2-6
Sub Spindle Through-Hole: 2.9"
Min. Sub Spindle Indexing Angle: .0001°
Sub Spindle Bearing Inside Diameter: 4.7"
Max. Tool Diameter w/ Adjacent Tools: 2.8"
Max. Tool Diameter w/o Adjacent Tools: 5.5"
Max. Tool Length: 15.8"
Max. Tool Weight: 17.6 lbs
Number of Turret Tool Positions: 12
Square Shank Height of Single Point Tool: 1"
Shank Diameter of Boring Bar: 2"
Rotary Tool Spindle Speed: 6,000 RPM

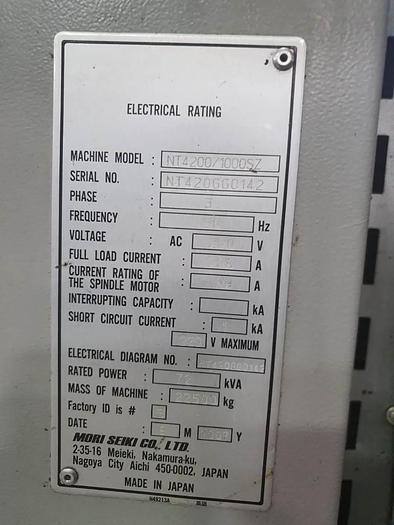

Electricals: 220V / 3 ph / 60hz
Equipped With:

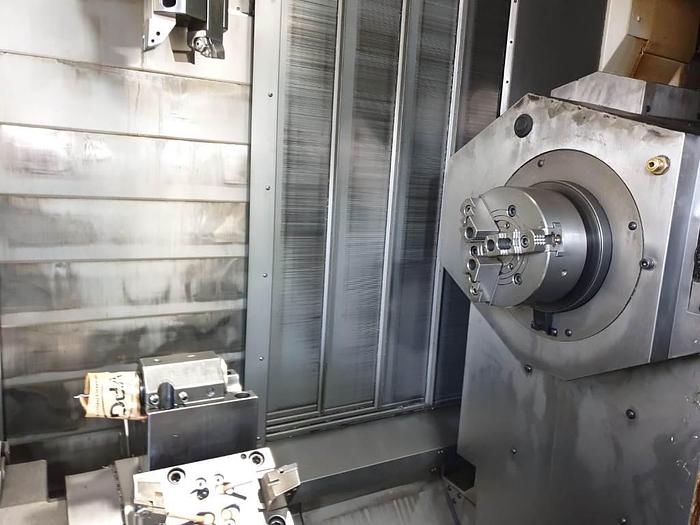

Twin 8" chucks

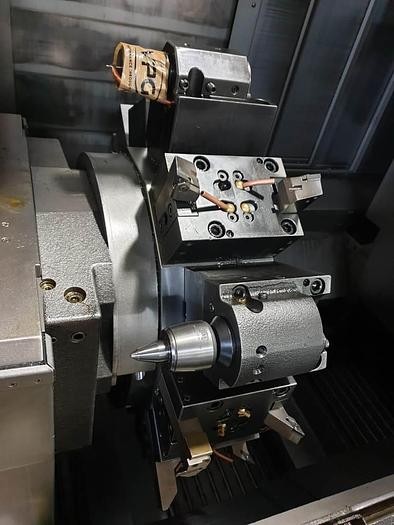

Sub Turret
42 ATC
HSK Tooling
The sub turret is a very expensive option
Specifications
Manufacturer | MORI SEIKI |
Model | NT4200 DCG |
Year | 2007 |
Condition | Used |
