2013 HAAS ST-10

Contact us for price

Livonia, MI

orCall 732-367-4130

Description

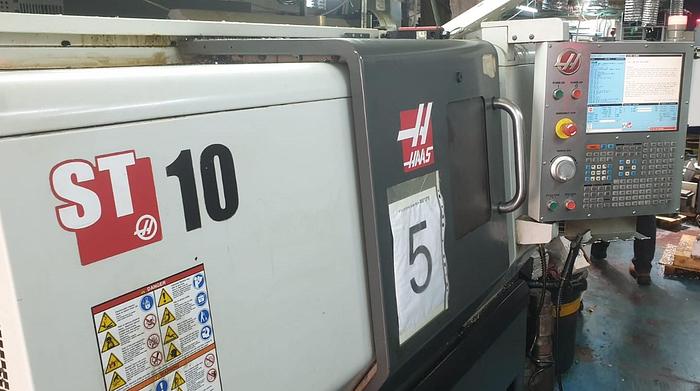

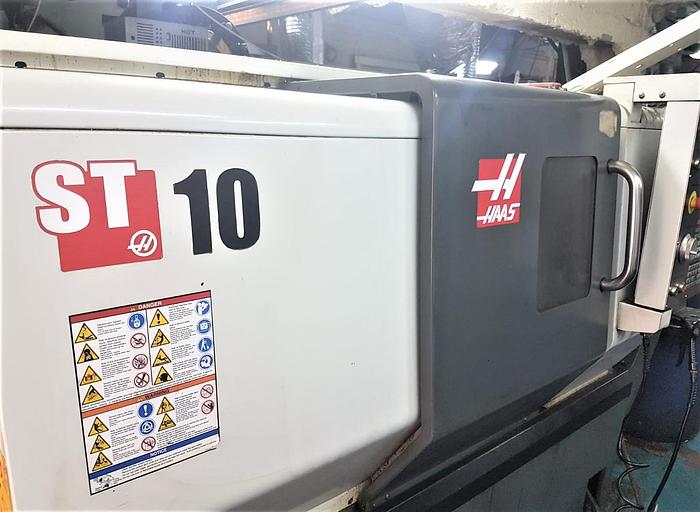

HAAS ST-10 CNC 2-AXIS TURNING CENTER LATHE NEW 2013

Specifications
Max Turning Diameter: 14″
Max Turning Length: 16″
Max Bar Capacity: 1.75″
Swing Over Bed: 16.5″
Swing Over Cross Slide: 16.5″
X Axis Travel: 7.9″
Z Axis Travel: 16.0″
Rapid Traverse X Axis: 1200 IPM
Rapid Traverse Z Axis: 1200 IPM
Spindle Nose: A2-5
Spindle Bore: 2.31″
Spindle Speed: 60 – 6000 RPM
Spindle Motor: 15 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
General:
Power: 220v / 3-Phase
Overall Dimensions: 92″ x 64″ x 72″ High
Weight: 6,000 lbs

Equipped With

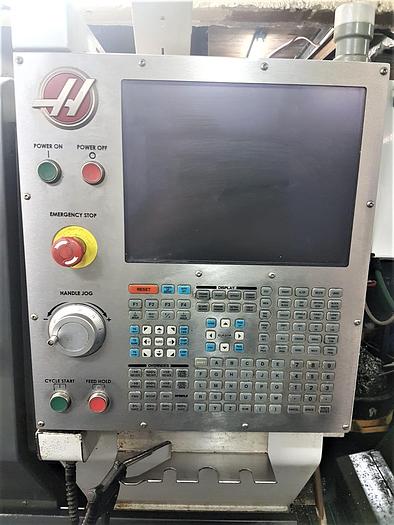

HAAS CNC CONTROL
6000 RPM Spindle
6.5″ 3 Jaw Hydraulic Chuck
Tool Pre-setter
Belt type chip conveyor

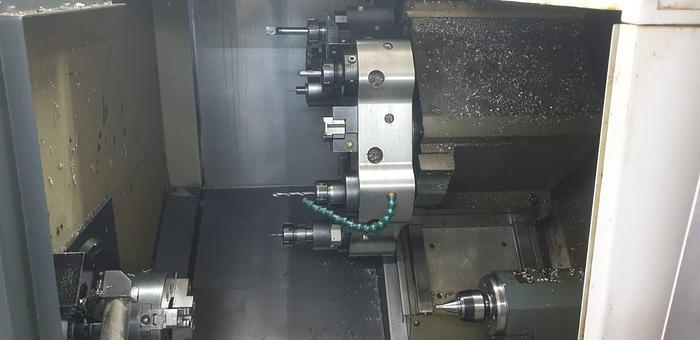

12 Station Automatic Turret
Rigid taping
VDI turret

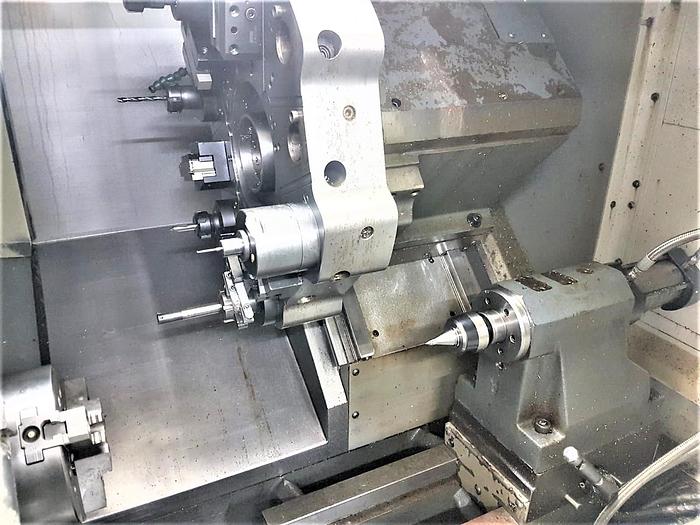

Tailstock with Hydraulic quill

Specifications

ManufacturerHAAS
ModelST-10
Year2013
ConditionUsed
