2007 HAAS VF-4SS

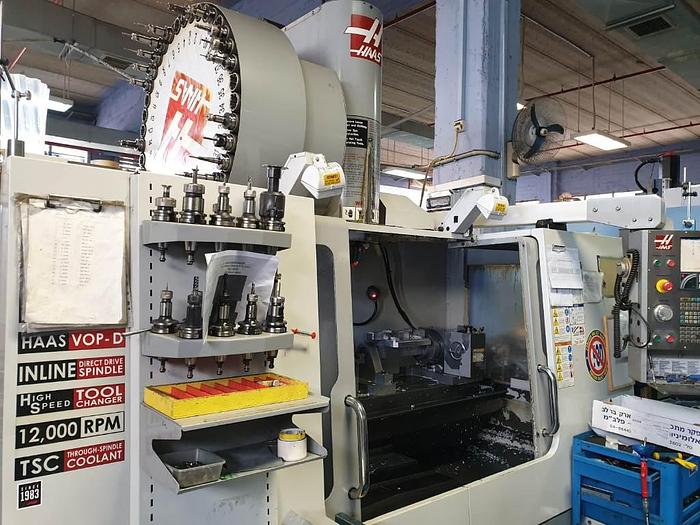

HAAS MODEL VF-4SS 3-AXIS PRECISION CNC VERTICAL MACHINING CENTER 2007 S/N 1063661 Specifications Travels: X 50" Y 20" Z 25" Table: Length 52" Width 18" Max. weight on table 1,750 lbs. Spindle: Speed 12,000 RPM Drive system inline direct drive Max. Rating 30 HP Max. Torque 90 ft-lb@ 2000 RPM Brushless Axis Motor: (Max. Thrust) X & Y Axis 3,085 lb Z-Axis 3,923 lb Feedrates: (Max. Rapids) X-Y-Z-Axis 1400 IPM Max. Cutting 833 IPM Tool Changer: Capacity 40+1 BT40 Max. Tool Dia. 3.0" Tool to Tool 1.6 sec Chip to Chip 2.2 sec Machine weight (approx) 13,300 lbs. Equipped With Haas CNC Controls 40 Position side mount automatic tool changer 12,000 RPM inline direct drive spindle Rotation & Scaling, Spindle orientation, Rigid tapping Intuitive Probing, Renishaw, Early Power Fault detection INTUITIVE PROGRAMING, Programmable coolant nozzle, Coolant system & Chip Auger Coolant through spindle
