2008 Fanuc Robodrill ALPHA-T21IFL

The 2008 Fanuc Robodrill ALPHA-T21IFL is a robust CNC vertical machining center designed for efficient drilling and tapping. It is equipped with a Fanuc 31i CNC Control and supports 3-axis machining, ensuring precise operations. The machine features a table working surface of 33.46" x 16.1" and can handle a maximum table load of 660 lbs. This model boasts an X, Y, Z travel range of 27.55", 15.74", and 12.99", respectively, with rapid traverse rates reaching 2,125 IPM. The spindle is capable of 10,000 RPM with a 14.5 HP motor, allowing for high-speed machining and a maximum tapping speed of 8,000 RPM. The BT-30 spindle taper and 21-station automatic tool changer with a tool-to-tool time of 0.9 seconds contribute to greater task flexibility and efficiency. Equipped with a high-pressure coolant system through the spindle, a full 4th axis rotary table with tail support, and multiple part program storage options, this machine is designed for various industrial applications. Additional features include a large capacity chip tank, chip conveyor/coolant system, and safety measures such as an automatic door and operator safety curtain, all housed within a compact 68" x 84" footprint, standing at approximately 116" tall and weighing around 5,500 lbs.

FANUC ROBODRILL ALPHA-T21IFL CNC VERTICAL MACHINING CENTER 2008

Specifications

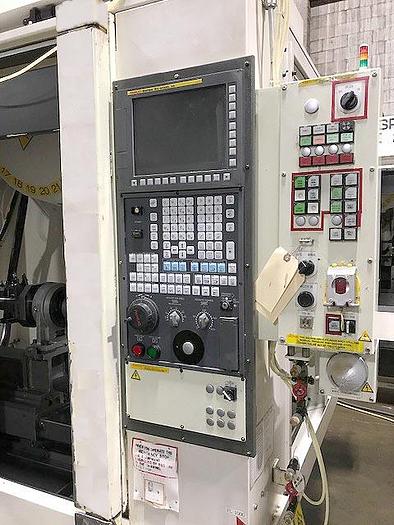

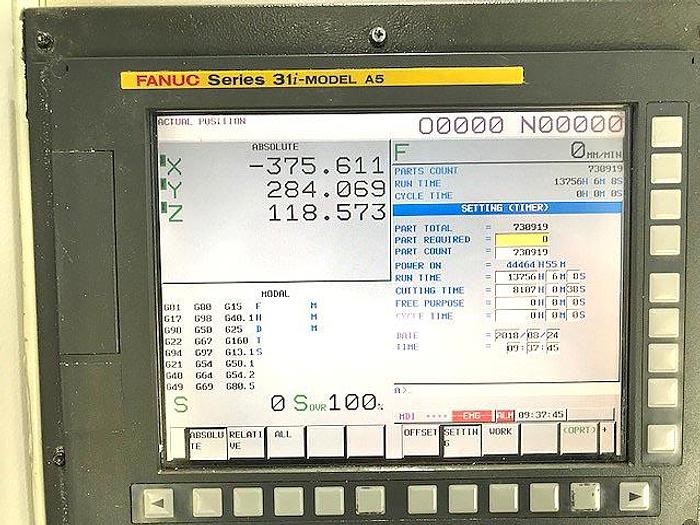

Type of CNC Control       Fanuc 31i CNC Control

# Axis   3

Table Working Surface  33.46" x 16.1"

Table Load Capacity       660 LBS

X-Axis (Longitudinal Travel)         27.55"

Y-Axis (Cross Travel)       15.74"

Z-Axis (Vertical Travel)  12.99"

Max Distance Spindle Nose to Table Top 29.75"

Max Distance Spindle Nose to Trunnion Center 16.25"

Feed Rates, All Axes       1,181 IPM

Rapid Traverse Rate, All Axes     2,125 IPM

Spindle Horsepower      14.5 HP

Max Spindle Speed        10,000 RPM

Max Spindle Speed For Tapping 8,000 RPM

Spindle Taper    BT-30

Torque, Up To   76 Nm

Automatic Tool Changer Capacity (ATC) 21

Tool Change Time           0.9 Sec Tool-to-Tool

Approximate Machine Dimensions          68" x 84"

Approximate Machine Height    116"

Approximate Machine Weight   5,500 LBS

Equipped With

*High Pressure Coolant Through Spindle

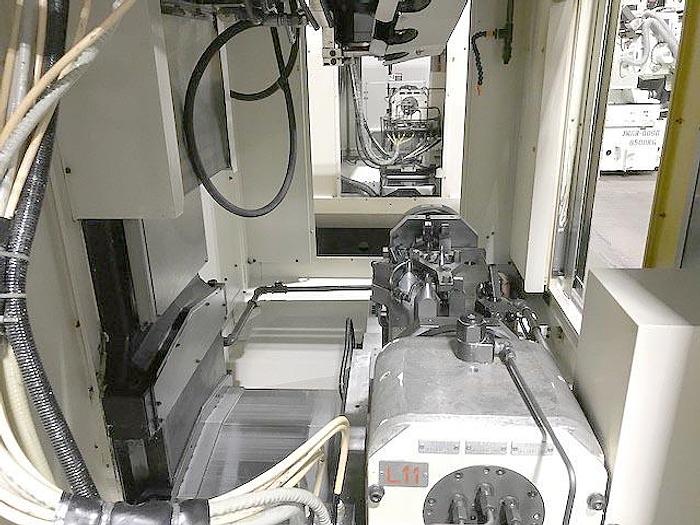

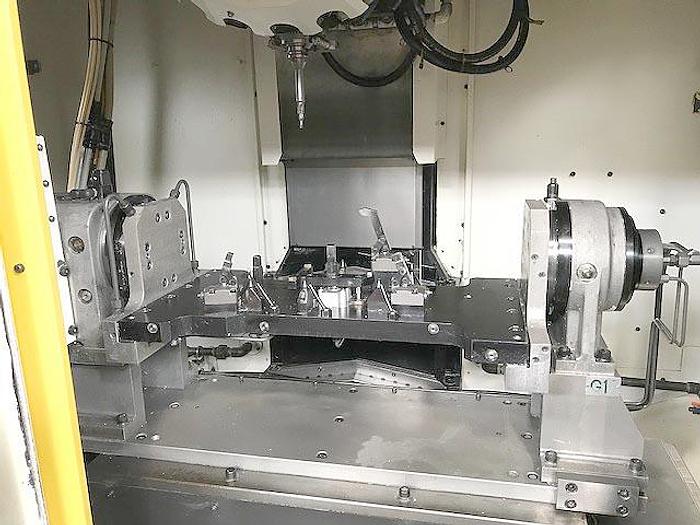

*Full 4th Axis Rotary table with Full Tail Support

*Large Capacity Chip Tank and Fine Chip System

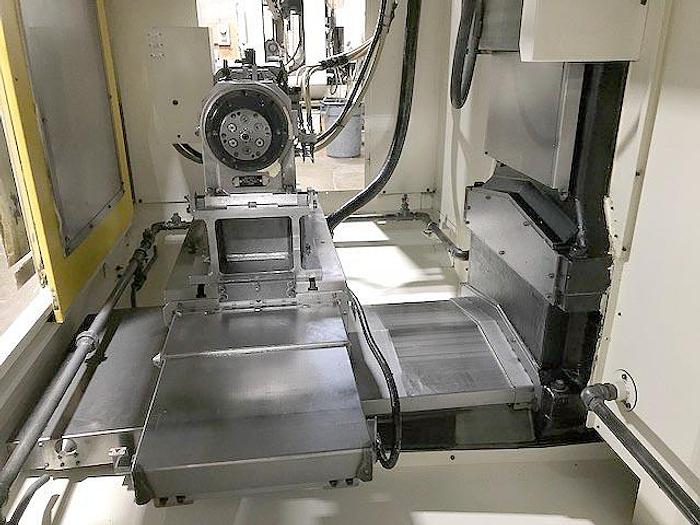

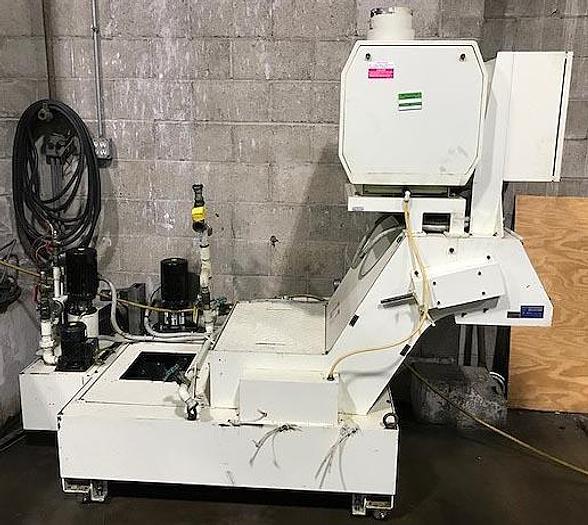

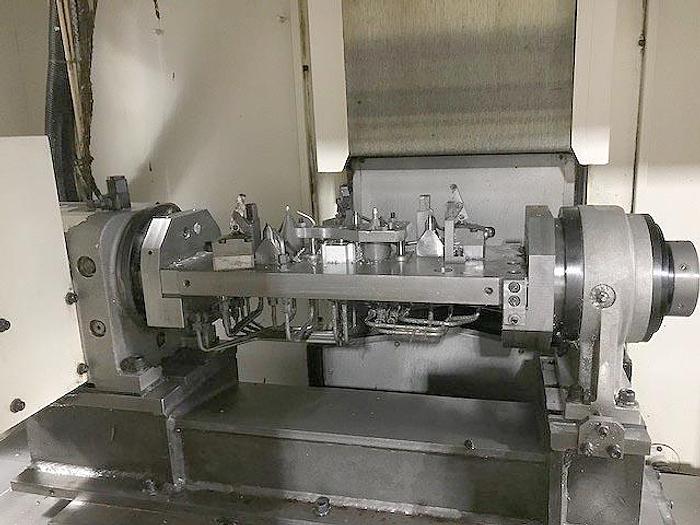

Fanuc 31i CNC Control, Multiple Part Program Storage, Rigid Tapping, 300mm (11.811") Column Riser, Trunnion Style 90 Degree Indexing A-Axis Auto Indexing Table, 21 Station Automatic Tool Changer, Hydraulic Part Clamping, High Pressure Through Spindle Coolant, Automatic Lubrication, Chip Flush, Automatic Door, Operator Door Safety Light Curtain, JPC Chip Conveyor/Coolant System with Mist Collector and "Built-in" Fines Filter.
