2012 MIYANO ABX-64THY

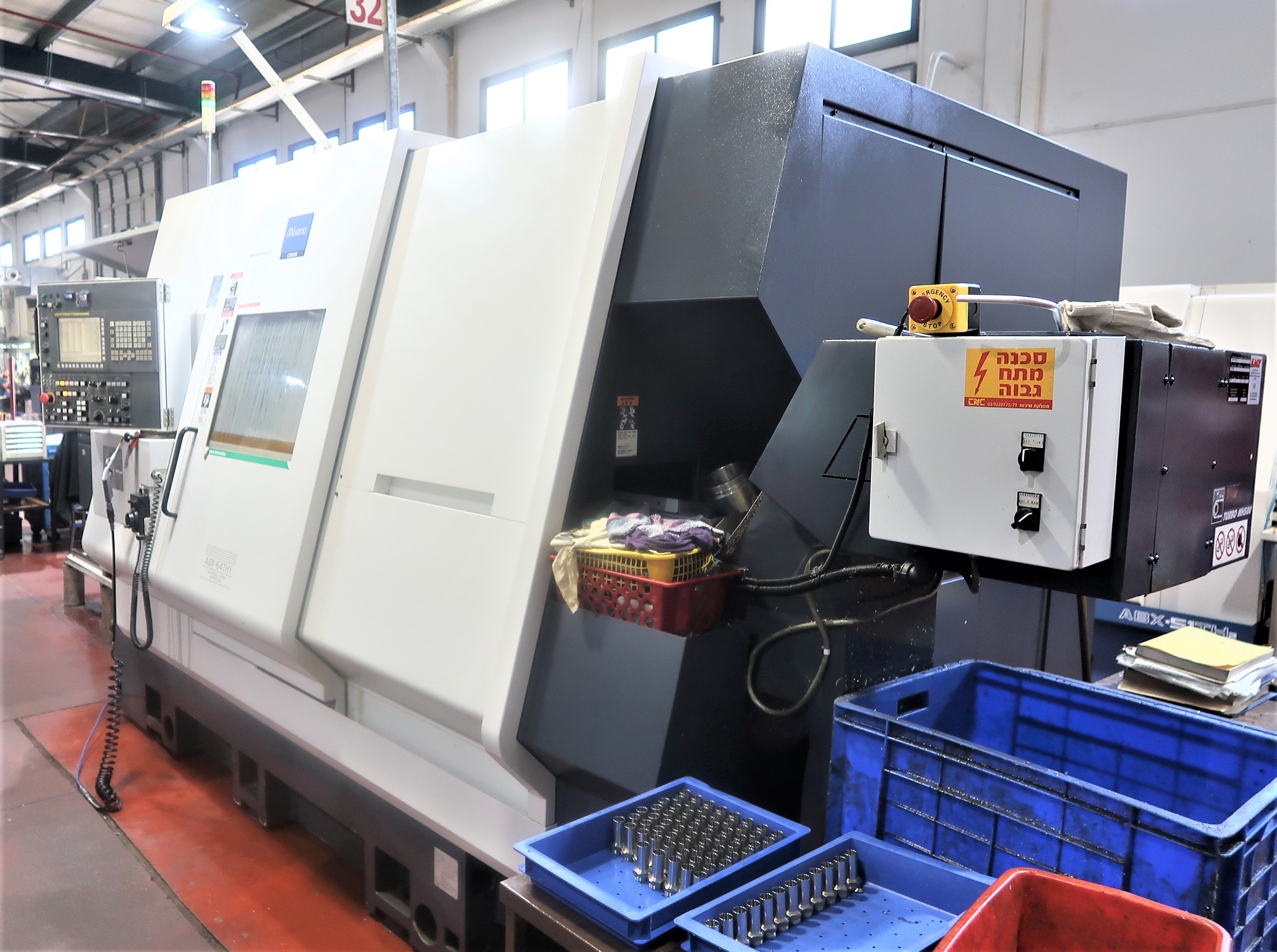

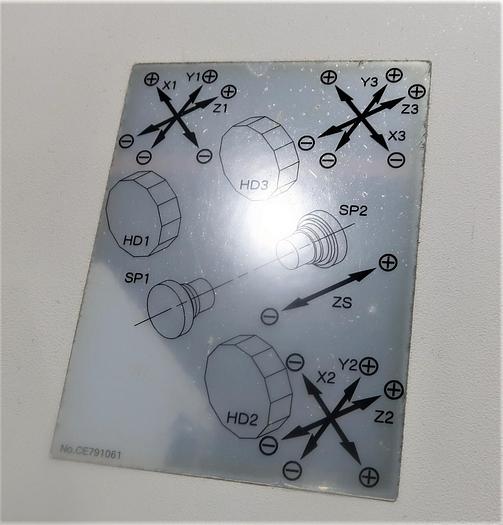

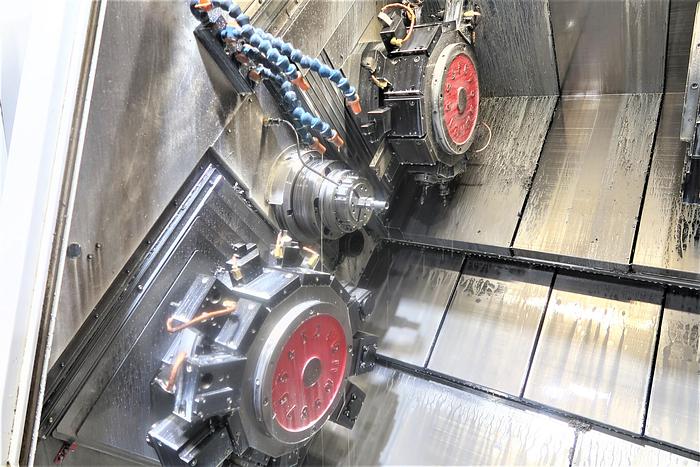

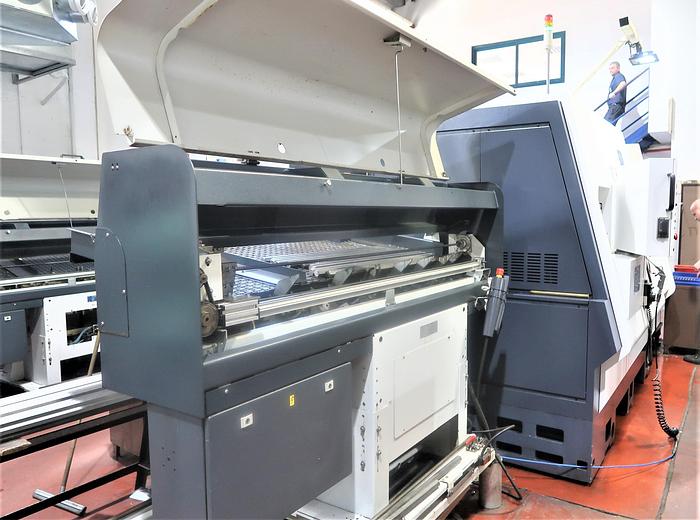

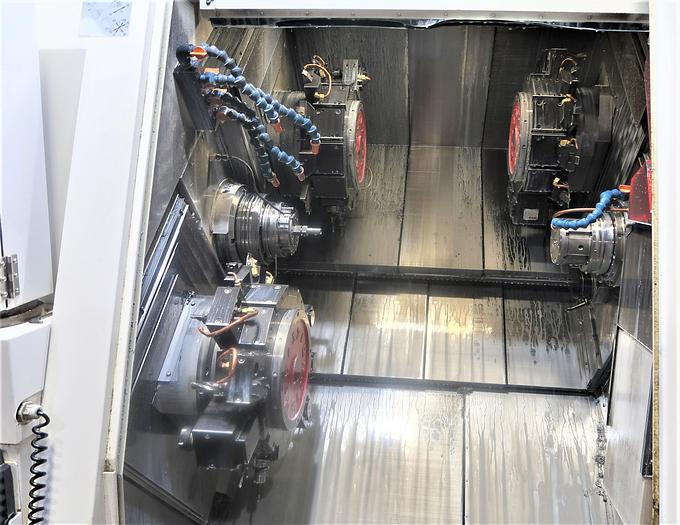

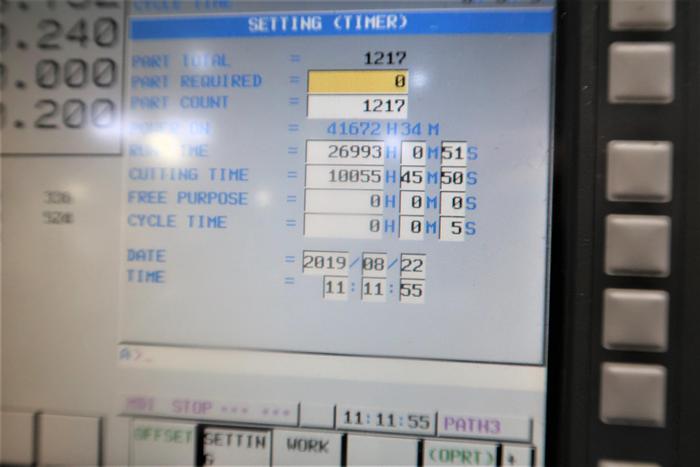

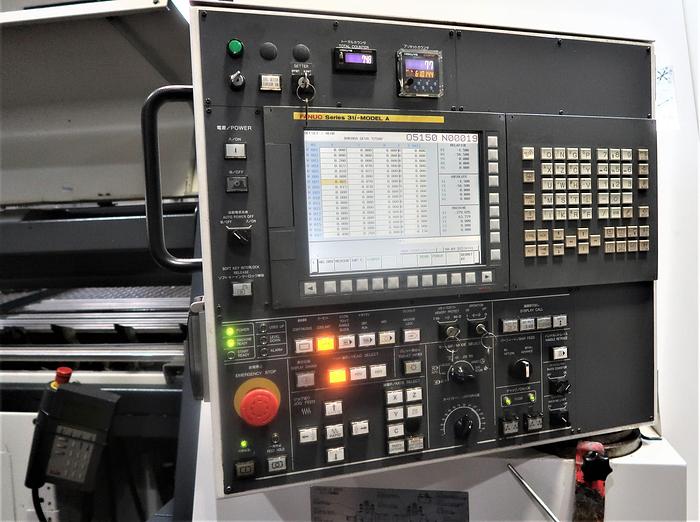

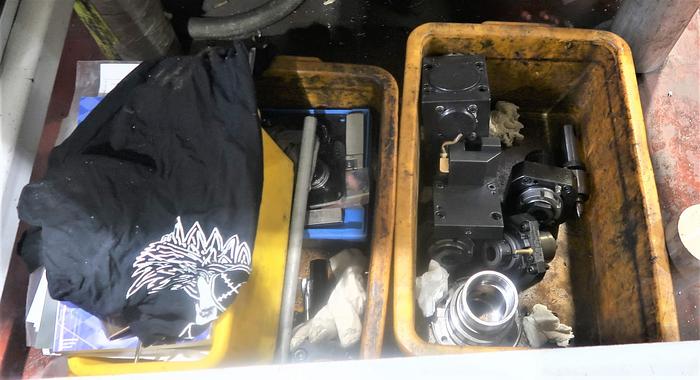

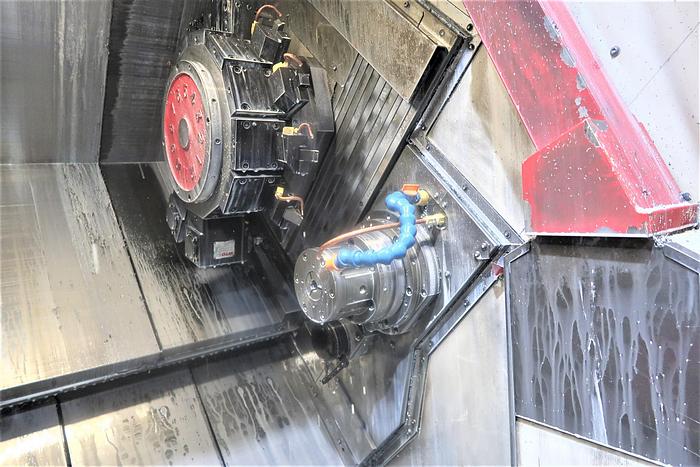

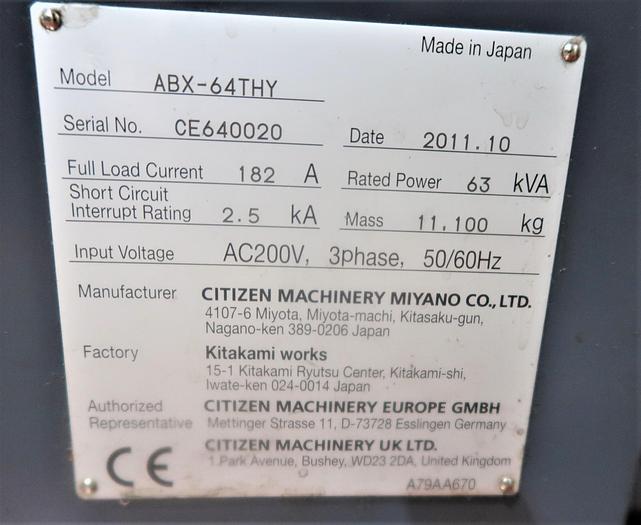

MIYANO MODEL ABX-64THY TWIN SPINDLE TRIPLE TURRET MULTI-AXIS CNC PRECISION TURNING CENTER LATHE 2012 Manufacturer: Miyano Model: ABX-64THY Year: 2012 General Specifications Machining Capacity: Standard Turning Length 118mm Max. Bar Diameter (Main Spindle/Sub Spindle) 64mm/51mm Max. Power Chuck Size (Main Spindle) 6" Max. Power Chuck Size (Sub Spindle) 6" Axis Travel: HD1-Upper Turret X1-Axis 190mm Z1-Axis 257mm Y1-Axis +/- 40mm HD2-Lower Turret X2-Axis 190mm Z2-Axis 500mm HD3-Upper Turret X3-Axis 190mm Y3-Axis +/- 40mm Z3-Axis 650mm Spindles: Number of Spindles 2 Spindle Speed Range (Main/Sub Spindle) 4000-5000 RPM Chuck Cylinder; Hydraulic Rotary Hollow Cylinder Collet Chuck for Left: Spindle (collets not includ) DIN 185E Collet Chuck for Right Spindle (collets not includ) DIN 177E Spindle Motors: Left Spindle: 15/11Kw cont./30 min Right Spindle: 7.5/5.5Kw cont./30 min Turrets: Number of Turrets 3 Number of Turret Stations: Upper Turret HD1/HD3 & Lower Turret HD2 12 Main & Sub Spindle Positioning: "C" Axis (Spindle orientation to both Main & Sub Spindles) Continue on Page 2 Revolving Tools: Number of Rotating Tool Stations: Upper HD1/Upper HD3 12 Lower HD1 12 Speed Range: Upper HD1/Upper HD3 40-6000 RPM Lower HD1 40-6000 RPM Machine weight (approx) 25,000 lbs. Equipped With (Standard accessories) 12 Station Upper Turrets HD1 & Hd3 & 12 Station Lower Turret HD2 Fanuc VAC 15 kw/11 kw for Main Spindle & VAC 7.5 kw/5.5 kw for Sub Spindle. C Axis Control to Main & Sub-Spindles Y Axis Control to Upper Turret HD1 and Upper Turret HD3 Tool Setter for HD1, HD2 and HD3 Automatic Lubricating System Coolant System Hydraulic equipment, Hydraulic Rotary Cylinder for Main & Sub Spindles Chuck Close/Open Confirmation Switch for Main & Sub Spindle Splash Guard with Door Interlock System Machine Light, Pneumatics Unit Spindle Assembly for DIN 185 E for Main & DN 177E Sub Inner Coolant, Cylinder-type Work Ejector and Air Blow for Sub Spindle Servo Driven Parts Catcher for Main & Sub Spindles Parts Conveyor, High Pressure Coolant for Upper & Lower Turrets (HD1,HD2 & HD3) High Pressure Coolant for Upper & Lower Turrets (HD1,HD2 & HD3) Total & Pre-Set Counter, Manual Retrace Function Filler Tube Assembly, Signal Tower 3-Step, Double Spindle Orientation Revolving Tool Drive Unit for Upper & Lower Turrets (HD1, HD2 & HD3) Cut-off Confirmation - Electrical Type Cut-off Confirmation - Mechanical Type Auto Power Shut Off, Coolant Level Switch Coolant Level Switch Chip Conveyor-Hinge type for General purpose Usage-Outlet Ht. 1Metre Disc Brake to both Main & Sub Spindle Tool Monitoring System (Inc Fanuc N.C. Option and Miyano Software) Tooling Package: (12) Turning Tool Holder No. 1 A & (4) Turning Tool Holder No. 1 B (2) Cut-off Tool Holder No. 1 & (1 Double Turning Tool Holder No. 1 A (1) Double Turning Tool Holder No. 1 B & (2) Plain Holder (D40mm) (14) Double Plain Holder (D25mm) & (3) Round Hole Bush - 8mm (3) Round Hole Bush - 10mm & (3) Round Hole Bush - 12mm (3) Round Hole Bush - 16mm & (3) Round Hole Bush - 20mm & (2) Sleeve 32 Bar Feed Interface Fanuc 31i-TA Control: Constant Surface Speed Control, Multiple Repetitive Cycles Chamfering/Corner R Compensation, Tool Nose Radius Compensation Inch/Metric Conversion, Geometry and Wear Offsets Polar Coordinate Interpolation, Cylindrical Interpolation, Parts Program Storage Length 320mm, Background Editing Rigid Tapping Function with Custom macro B for Revolving Tools Rigid Tapping Function for Main & Sub Spindle, Direct Drawing Dimension input Extended part Program Editing Alarm Display, G10 Function, Overlapping Function for HD2, HD3 & Sub Spindle Helical Interpolation, Polygon Turning, Run Hour/Parts Number Counting Synchronous Mix Control, 500 Sets of Program Counting Hainbush 2703/0030 Assy for Main Spindle Quick Change 65mm Collet Chuck Collet Chuck system for Right Spindle DIN177E, X-Spindle Unit - AR25 *3pcs Z-Spindle Unit - AR25 *1pc, Air Blow for Main & Sub Spindle, Miyano Parting Kit Integrated Medium pressure 30 bar pressure Coolant pump LNS Turbo MH500 Chip Conveyor, Bar Feed interface modified to Ar-E1 specs for-LNS Quick load servo II CNC Wizard For Miyano Note: New Replacement Price Exceeds $600,000.00 Today Run Time 18,000 Hours ALL SPECIFICATIONS SUBJECT TO BUYER'S VERIFICATION
