1996 MAZAK SQT 18MS

1996 Mazak SQT 18MS CNC Lathe with Sub-Spindle & Live Tooling serial no.114509

Specifications:

Max. Swing: 20.90″

Swing Over Carriage: 15.74″

Max. Machining Diameter: 11.75″

Max. Distance Between Spindles: 34.25″

Max. Bar Work Diameter: 2.51″

X-Axis Stroke: 7.125″

Z-Axis Stroke: 22.75″

Speed: 35 ‾ 4000 RPM

Number of Spindle Speed Ranges: Stepless

Spindle Nose: A2-6

Spindle Bore: 2.99″

Min. Spindle Indexing Increment: 0.001″

Second Spindle Speed: 180 ‾ 4000 RPM

Second Headstock Stroke: 23.25″

Second Headstock Rapid Traverse Rate: 708 IPM

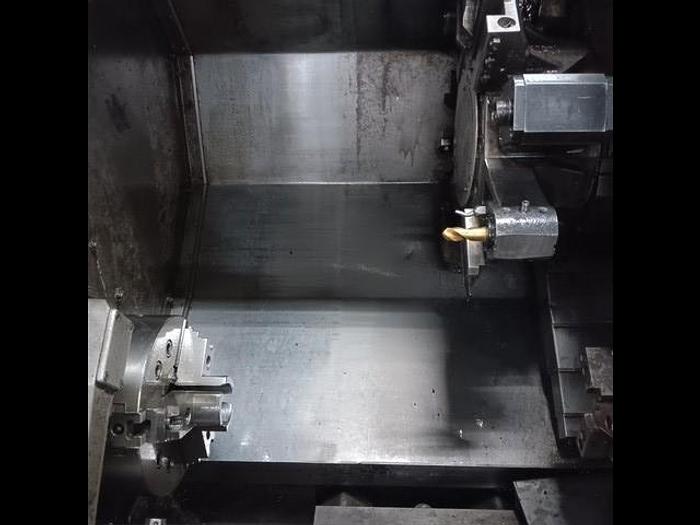

Turret Type: Dodecagonal Drum

Turret Tool Capacity: 12 Tool Total

Tool Shank Height: 1.00″

Boring Bar Shank Diameter: 1.50″

Turret Indexing Time (Chip-to-chip): 1.6 sec/step

Rotary Tool Spindle Speed: 120 ‾ 3000 RPM

Rapid Traverse Rate (X,Z): 1180 IPM

Jog Feedrate (X,Z): 0.04 ‾ 78.74 IPM

1st spindle Motor (30 min / continuous rating): 25 / 20 HP

2nd spindle motor (10 min. rating): 10 HP

Rotary Tool Motor: 10 min rating

Coolant Pump Motor: 0.25 HP

Electric Power Source (30 min / Continuous rating): 48.8 kVA / 38.6 kVA

Air Supply: 71 PSI / 3.53 Ft /Min

Coolant Tank Capacity: 52.8 Gallons

Machine Height: 80.3″

Floor Space Requirement: 124.4″ x 63.4″

Machine Weight: 12,500 Lbs

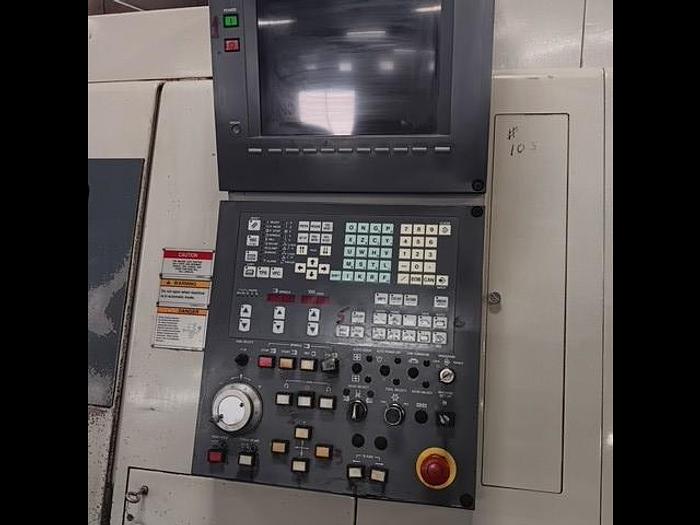

Mazatrol T-Plus Control

Equipped with:

Sub-Spindle

Live Tooling

Full C-Axis on Main Spindle

Parts Catcher

Chip Conveyor

10″ Kitagawa main chuck, with hard jaws and MANY soft jaws

6" Kitagawa sub-spindle chuck

4 Live tool holders

Many static OD & ID holders
