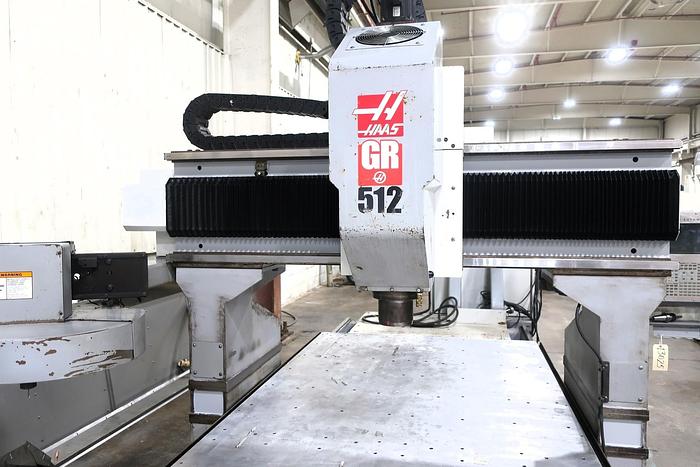

2005 Haas GR-512

60" X 144" HAAS GR-512 CNC 3-AXIS GANTRY ROUTER/VERTICAL MACHINING CENTER 2005

SPECIFICATIONS:

Travels:

X Axis 145"

Y Axis 61"

Z Axis - 11"

Spindle Nose to Table (Max.) 13.5"

Spindle Nose to Table (Min.) 2.5"

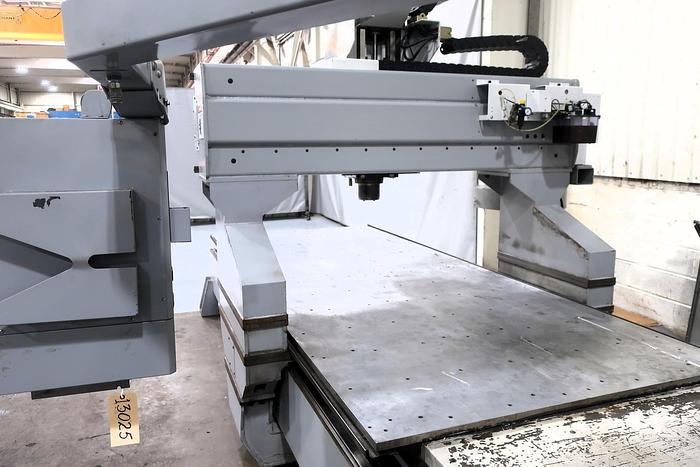

Table:

Length 144"

Width 60"

Thickness 1"

Between Columns 62"

Max. weight on table (evenly distributed) 6000 lbs

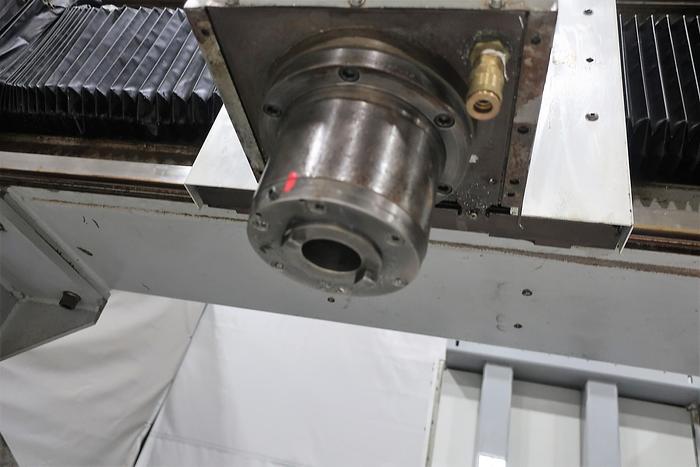

Spindle:

Max. Rating 15 HP

Max. Speed 10,000 RPM

Max. Torque 17 ft-lb @ 4600 RPM

Drive System (Direct Speed) Belt Drive

Taper CT  40

FeedRates:

Rapids on X 800 in/min

Rapids on Y 2100 in/min

Rapids on Z 1100 in/min

Max. Cutting 800 in/min

Axis Motors:

Max. Thrust X 2520 Lb

Max. Thrust Y 1020 Lb

Max. Thrust Z 2050 Lb

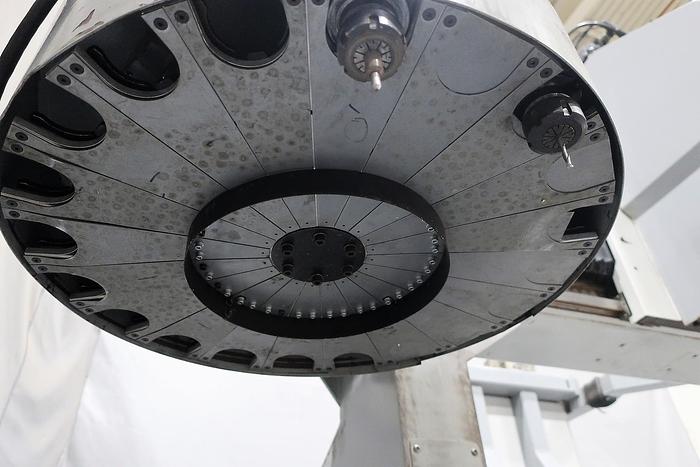

Tool Changer:

Type Carousel

Capacity 20

Max. Tool Diameter (Full) 3.5"

Max. Tool Weight 12 Lb

General:

Air required 4 scfm, 100PSI

Coolant Capacity

EQUIPPED WITH:

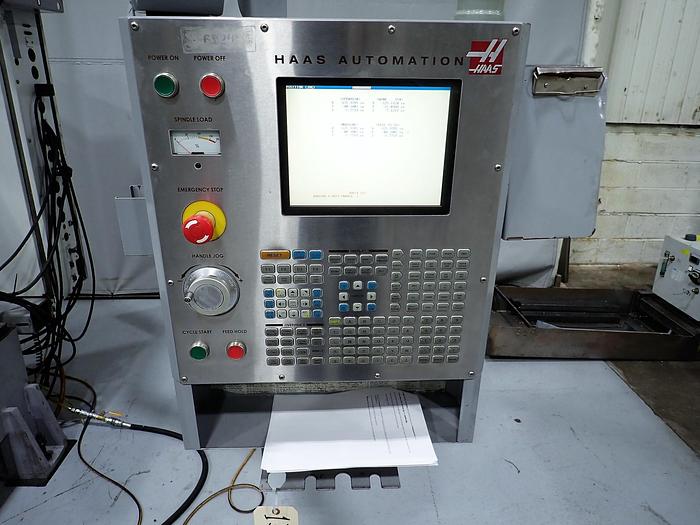

Haas CNC Controls

5'x12" Table

10,000 RPM 40 Taper Spindle

20 Position Automatic Tool Changer

Hard Disk Drive and Ethernet Interface

VISUAL QUICK CODE PROGRAMMING

RIGID TAPPING

Plumbed for coolant
