2003 Star ECAS-20

No longer available

2003 Star ECAS-20

Livonia, MI

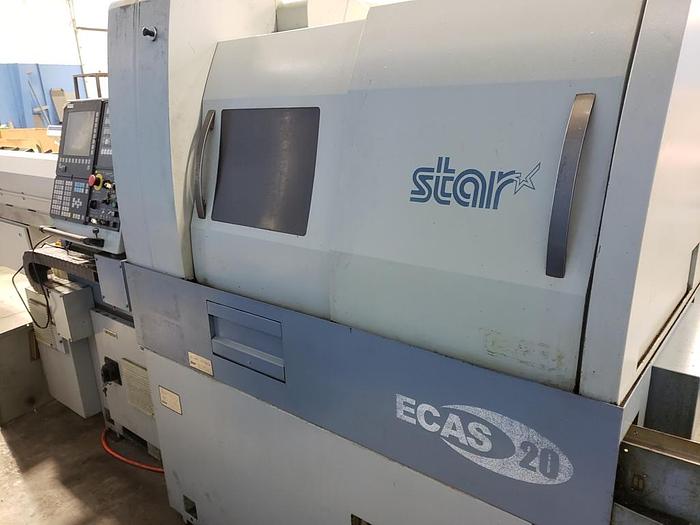

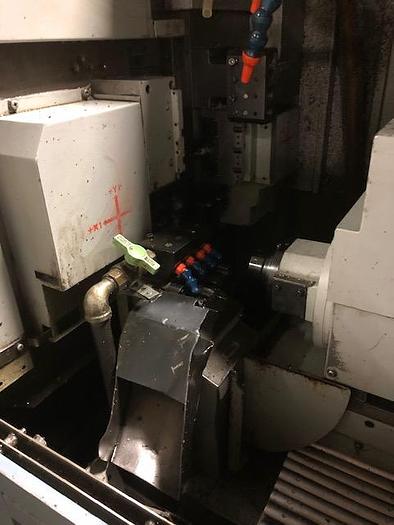

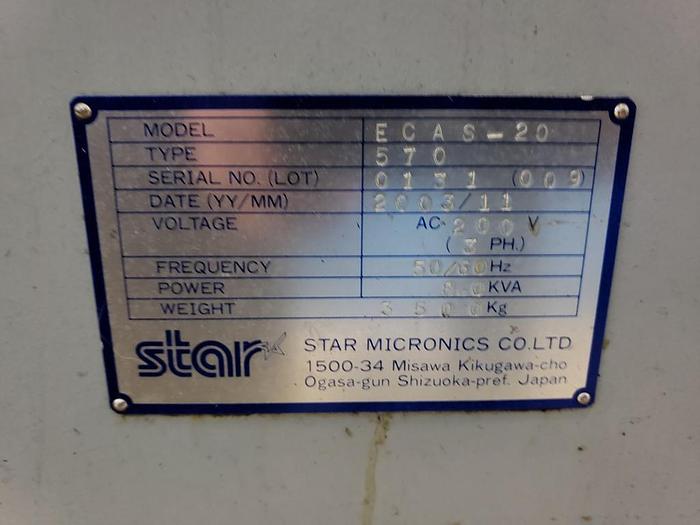

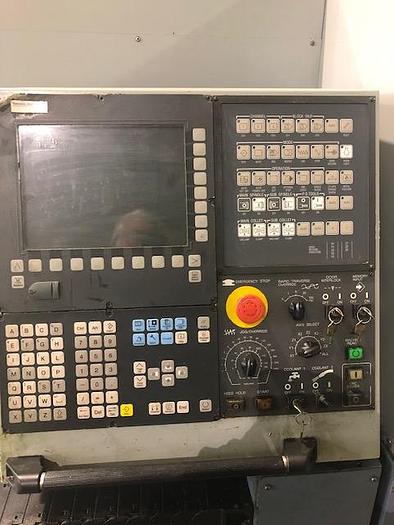

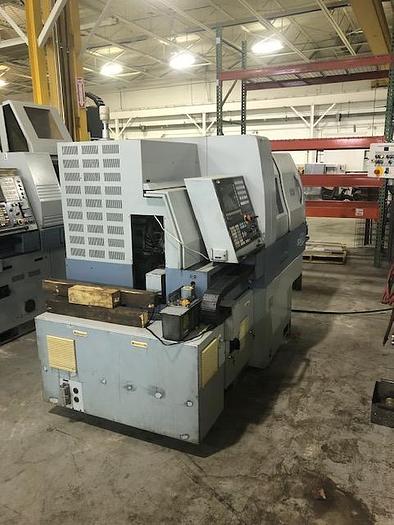

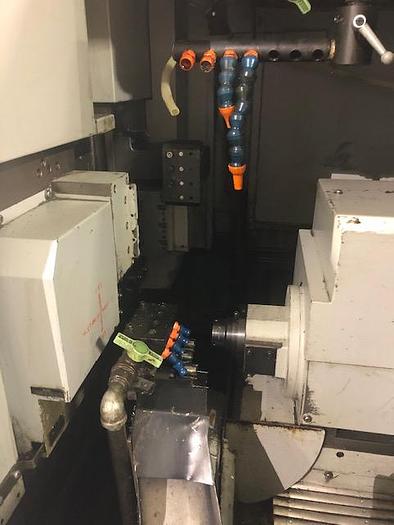

20MM STAR ECAS-20 CNC SWISS TYPE SLIDING HEADSTOCK TURNING Manufacturer: Star Model: ECAS-20 Serial Number: 0131 Year: 2003 Price: $ 39,500.00 Specifications Max. Machining diameter 20 mm (25/32") Max. headstock stroke 205 mm (8") Tool Post: Front tool post Turning/power Driven Rear tool post Turning/end Working Power driven Tool: Number of tools (front) 4 Tools Number of tools (rear) 12 Tools Tool shank 12 mm 4-Spindle sleeve holder: Number of tools 4 Tools Max. Drilling capacity 10 mm (25/64") Max. Tapping capacity M8 x P1.25" Max. Die cutting capacity M8 x P1.25" Power driven tools: Power driven/live tools (front slide) 3 Tools Power driven/live tools (rear slide) 3 Tools Max. Drilling capacity 8mm (5/16") Max. Tapping capacity M6 x P1.0 Max. Milling capacity 10mm (25/64") Max. Slotting capacity 1.5mm(W) x 4mm (D) Main spindle indexing degree 0.01 deg. (C-axis) Control: Main spindle speed 10,000 RPM Main spindle motor 2.2 Kw (Cont.) 3.7 kW (30 min.): Power driven tool 8,000 RPM Power driven drive motor AC Servo Motor 0.75 kW: Coolant tank capacity 120 liters Power consumption 8 KVA Backworking attachment specifications: Max. Chuck diameter 20mm (25/32") Max. Length for front ejection 80mm (3-5/32") Max. Parts projection length 30mm (1-3/16") 4 Spindle Attachment for back working side: Max. Drilling capacity for Stationary tool 10mm (25/64") Max. Drilling capacity for driven tool 8mm (5/16") Max. Tapping capacity for stationary tool M8 x P1.25" Max. Tapping capacity for power driven tool M6 x P1.0 Sub Spindle minimum indexing angle 0.01 deg. (C-Axis- control) Sub Spindle speed 10,000 RPM Sub spindle motor 2.2kW (Cont./3.7kW (30 min) Machine dimensions (approx) 8.5'Lx3.75"Dx6'H Machine weight (approx) 7,700 lbs Bar feed dimensions (approx) 3'W x 15'L Equipped With Siemens 840DI CNC Control, Windows NT Full C-Axis Main & Sub Spindle Part Conveyor Coolant System Mist Collector FMB BAR FEEDER , New 2003
