2012 METLSAW HIGH PRODUCTION PRECISION 1’ CUTOFF SAW - CS1-T8 for 20’ NONFEROUS
No longer available
2012 METLSAW HIGH PRODUCTION PRECISION 1’ CUTOFF SAW - CS1-T8 for 20’ NONFEROUS
Livonia, MI
Description

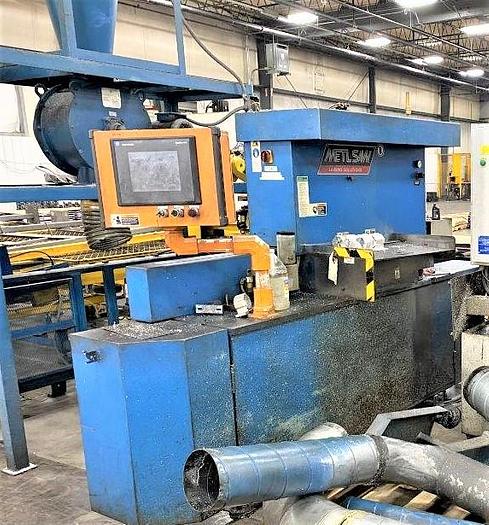

METLSAW HIGH PRODUCTION PRECISION 1’ CUTOFF SAW - CS1-T8 for 20’ NONFEROUS, BACK GAUGE, HI PRODUCTION, 8" X 12" OR 8" SOLID ROUND, FEED TABLES, NEW 2012
Specifications
METLSAW HIGH PRODUCTION PRECISION 1’ CUTOFF SAW - CS1-T8 for 20’ STOCK
Precision cutoff saw designed and built for rapid precision cutting of non-ferrous metals, acrylics, alloys and other non-metallic materials. Machine will be capable of handling material 12” wide up to 20’ feet long and 8” thick.
PERFORMANCE SPECIFICATIONS:
Cutting Capacity:
Maximum: 8 inches thick by 12 inches wide
8 inches diameter round
Minimum: ½ inch*
Cutoff Length: ½ inch to 240 inches*
*Can reduce minimum capacity with proper set-up. Tolerances:
Straightness, parallelism and positioning tolerance: +/- 0.003 inches
Vertical Squareness per inch of thickness: +/- 0.0005 inches
Horizontal Squareness inch per foot from corner: +/- 0.002 inches
*Tolerances guaranteed providing a true sharp precision blade is used and material does not deform due to internal stresses.
Surface Finish Obtainable: Down to 8 microns-inch (RMS)
Travel Speeds: Carriage: 500 IPM forward and 800 IPM return
Backgauge: 500 IPM forward and 800 IPM return
Safety Compliance:
All MetlSaw machines are in full compliance with all applicable safety and noise requirements.
MetlSaw Systems • 2950 Bay Vista Court • Benicia, CA 94510 • Tel 707.746.6200 • Fax 707.746.5085
www.metlsaw.com
Page 2 of 7
Date: May 8, 2012
MetlSaw Systems Cutoff Saw:
Maximum cutting window capacity: 12 Inches wide by 8 inches thick
Maximum stock lengths: 20 Feet stock lengths
• Rockwell Automation (AB) PLC Controls with 10” touchscreen
• 30 hp arbor motor
• Linear Encoder System for Backgauge positioning
• Operator protective shielding system
• Telescopic Chip Chute
• Manual or Auto cycle operation
• Automatic universal clamping system
• Safety fencing surrounding backgauge

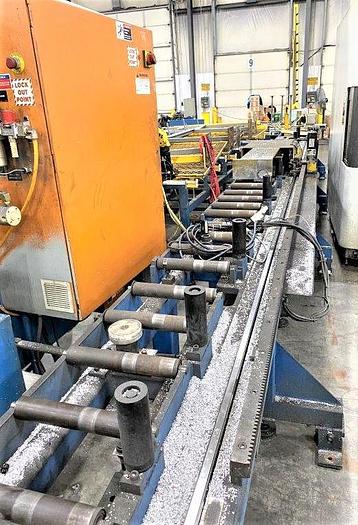

• Offload 2’ W x 5’ L Roller table
• Standard MetlSaw Safety blue paint
• Standard voltage 480v/3 phase/80amp
Additional Features/Changes:
• Special Clamp (to configure to shape)

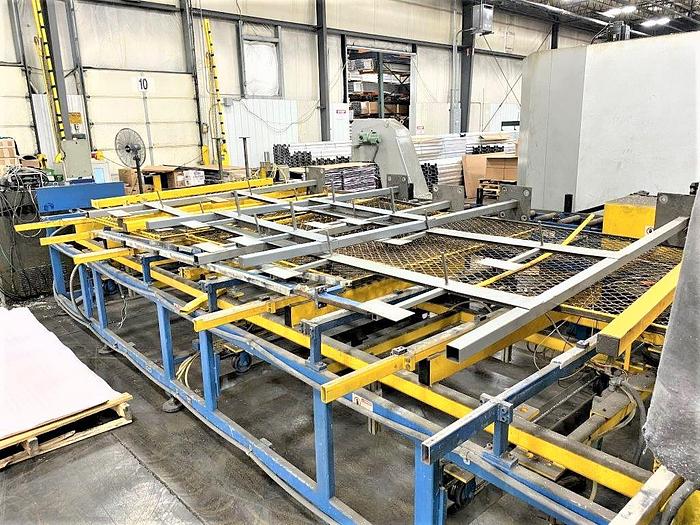

• Automatic Sideloader (6 stage)
• 5 Blade Package
• Push Thru Registration Beam
• Stainless Steel Wear Plates
• Drop Removal/Ejection System
• ** Integration with Robotic Cell
Chip Collection System:
7.5 HP external vacuum chip collection system, output filter unit
and a rotary valve adapted to the system. It includes (2 - 10’ L
and 1- 90 degree sweep elbow).
Total price will all options $205,600.00
MetlSaw Systems • 2950 Bay Vista Court • Benicia, CA 94510 • Tel 707.746.6200 • Fax 707.746.5085
www.metlsaw.com
Page 3 of 7
Quotation Number: 002574 Date: May 8, 2012
Available Options
Automatic Side Loader (Optional):
Automated walking beam side-loader, with 3 staging areas installed.
Backgauge/Registration Beam Options:
• Backgauge Vertical Clamping System (suggested for long cut extrusions)
• Backgauge solid squaring fence
• Right-hand loading
• Kastalon covered rollers
• Manual retaining device (on pusher plate)
• Automatic retaining device (on pusher plate)
• Push-thru backgauge
• Pass-thru backgauge
Main Frame Options:
• Swing arm touch screen
• Stainless Steel Wear Plates
• Brass Wear Plates
• Outfeed Belt Conveyors (5’, 10’ or 20’ lengths)
Material Thickness Options:
• 10” Thick material
• 12” Thick material
Programming Options:
• Language Options
• Metric/Imperial
• Hour Meter
• Ethernet Ready
Specifications
Manufacturer | METLSAW |
Model | HIGH PRODUCTION PRECISION 1’ CUTOFF SAW - CS1-T8 for 20’ NONFEROUS |
Year | 2012 |
Condition | Used |
