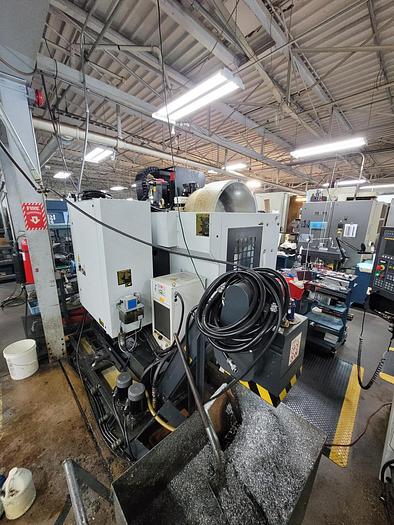

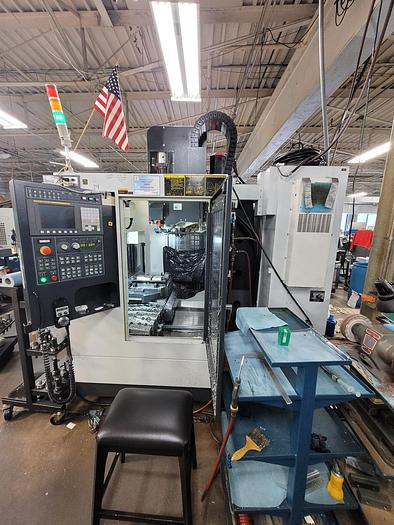

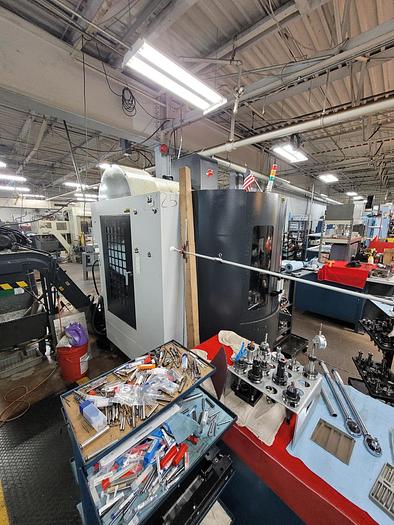

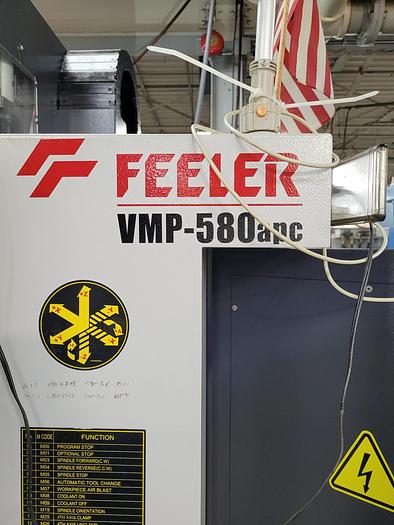

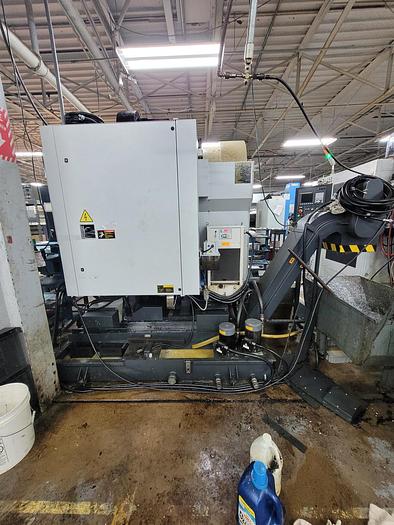

2014 Feeler VMP-580-APC

2014 Feeler VMP-580-APC

               Fanuc OiMD

MACHINING CENTERS, VERTICAL, CNC W-PALLETS

          TRAVEL

X-axis travel 580mm

Y-axis travel 420mm

Z-axis travel 510mm

Spindle nose to table surface 135mm-645mm

Table surface to floor 915mm

SPINDLE

Spindle speed 12,000rpm

Spindle taper 7/24 Taper No.40

Spindle motor FANCU: 11/18.5(S1/S3_15%) & MITSUBISH: 7.5/11(S1/S3_15%)

FEEDRATE

X-axis rapid traverse 48m/min

Y-axis rapid traverse 48m/min

Z-axis rapid traverse 32m/min

Standard Equipment

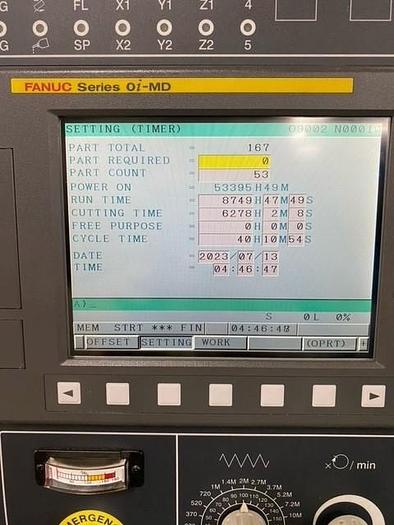

• Fanuc Oi-MD control

• 1O,OOORPM/15HP Spindle

• 24 Tool Dual Swing Arm ATC

• 2 station rotary pallet changer

• 1.9 seconds tool to tool

• 1280 meters of memory

• Custom macro 8

• 400 tool offsets

• Helical Interpolation

• AICC - 200-upgraded block look ahead

• Extra set of 8 M-functions

• Chip conveyor

·Spindle oil cooler

• Rigid tapping

• Auto power off

• Prepared for coolant through spindle (does not include pump)

• Double anchor pretensioned ballscrews

• Automatic lubrication system

• Enclosed splash guard

• Dust-proof electrical cabinet

• 3-color signal light

• Coolant flushing system

• Coolant flushing gun

• Spindle ring coolant nozzles

• Spindle coolant nozzle

• Safety interlock package
