YCM Supermax FV 102A

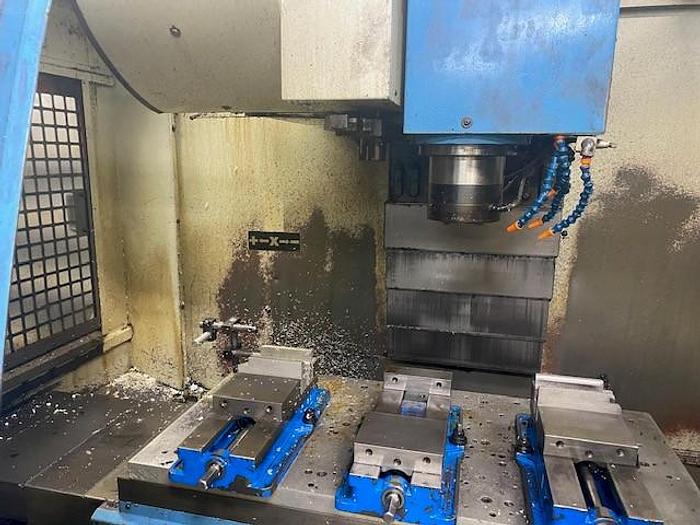

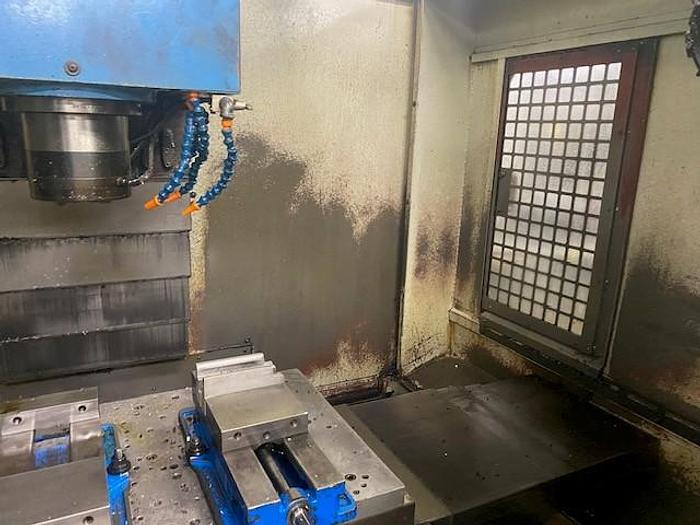

The YCM Supermax FV 102A is a reliable vertical machining center designed for precision and efficiency. This used model, manufactured in 2001, remains in good condition. It features a sturdy table with dimensions of 20.4″ x 44″, offering a generous space for various machining tasks and a weight capacity of 1,100 lbs. The machine provides X, Y, and Z-axis travels of 40″, 20.4″, and 21.2″, respectively, allowing for versatile processing capabilities. Equipped with a Fanuc 18M CNC control, the FV 102A enables precise machining operations and ease of use. It features a spindle with a CAT 40 taper that operates at speeds ranging from 45 to 10,000 rpm, powered by a 10/20hp motor. This model supports high-speed rigid tapping and is enhanced with heavy-duty ceramic spindle bearings for durability and optimal performance. Additional features include a spindle chiller, an oil skimmer, and a comprehensive coolant system with a 63-gallon capacity, ensuring sustained operations and reduced thermal expansion. The machine also has a swing-arm tool changer with 24-tool capacity for convenient tool management. Coupled with rugged Meehanite castings and THK linear guides, the YCM Supermax FV 102A is a robust option for industries requiring precision machining capabilities.

YCM Supermax-FV 102A

YCI Supermax YCM FV 102A Vertical Machining Center

Manufacturer: YCI

Model: FV-102A

Year: 2001

Condition: Good

Specifications:

Table size                                                                  20.4″x44″

Table capacity                                                           1,100lbs

Traveles:

X-axis                                                                     40″

Y-axis                                                                     20.4″

Z-axis                                                                      21.2″

Spindle nose to table top                                           4.7″ – 25.9″

Spindle center to column front                                  22.8″

Spindle taper                                                             CAT 40

Spindle speeds                                                          45 – 10,000rpm

Main Motor                                                               10/20hp

Electrics                                                                    220v/3/60

LxDxH                                                                      114″x136″x115″

machine weight; approximate                                   11,800lbs.

Equipped With:

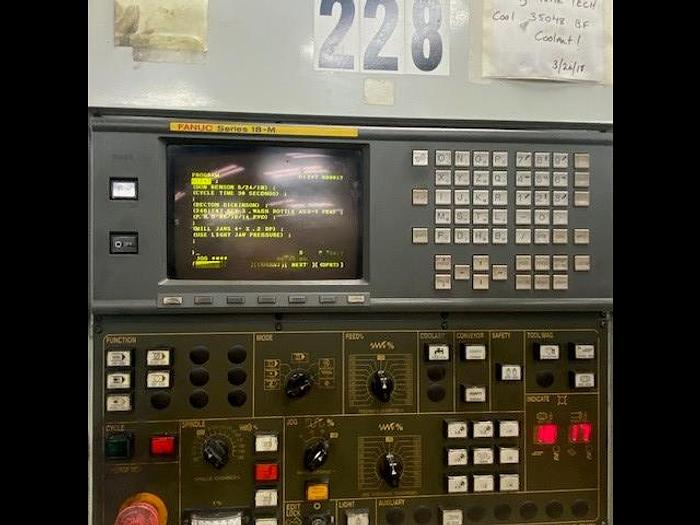

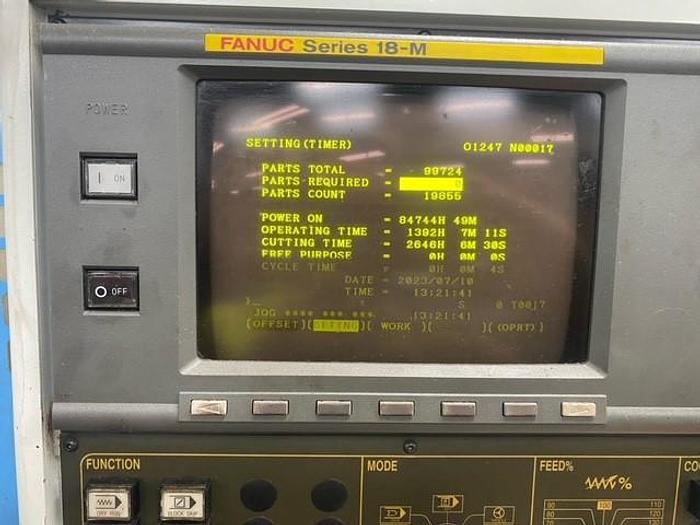

Fanuc 18M CNC control

Powerful 20HP Spindle output

Heavy Duty Ceramic Spindle Bearings

10,000Rpm Max Spindle Speed

High Speed Rigid Tapping

Absolute Positioning Encoder Servo Motor

Full Alphanumeric Keyboard

Cutting Air Blast

Spindle Air Curtain

Hand-Held Coolant Gun

High Speed 24 Tool Swing-Arm

Random Access & Bi-DirecLionalTool Mag

RS 232C Interface

63 Gal High Efficient Coolant System

THK®  New NR Type Linear Guide on XYZ

Rugged Meehanite Castings

Full Chip  Coolant Guards

Spindle Chiller

Oil Skimmer
