Mitsui Seiki 4DN 4-axis Cnc Jig Borer

Mitsui Seiki 4DN 4-axis Cnc Jig Borer

Contact us for price

Location:Livonia, MI

Contact Us

orCall 732-367-4130

Description

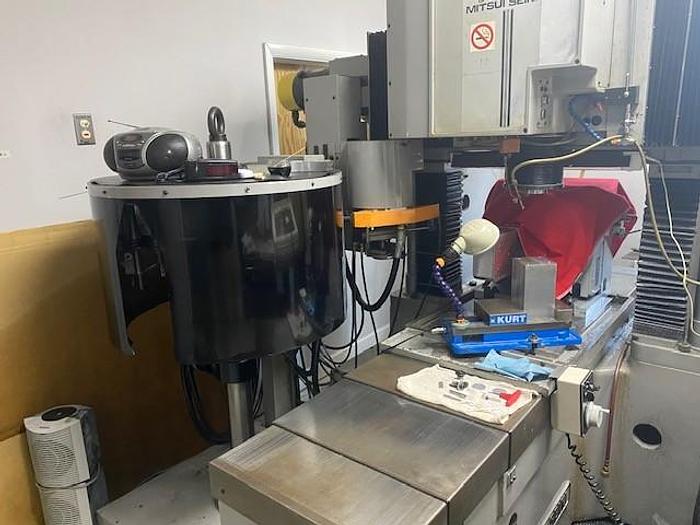

Mitsui Seiki 4DN 4-axis Cnc Jig Borer


MITSUI SEIKI 4DN SUPER PRECISION 4-AXIS CNC JIG BORER( AND MILLING) WITH TOOL CHANGER

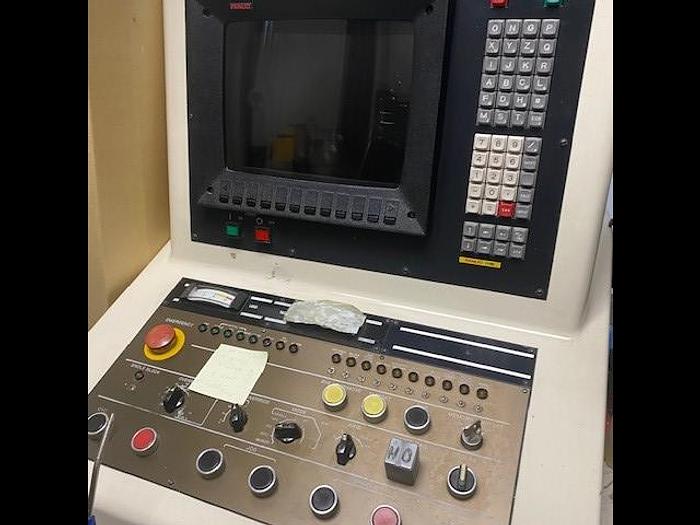

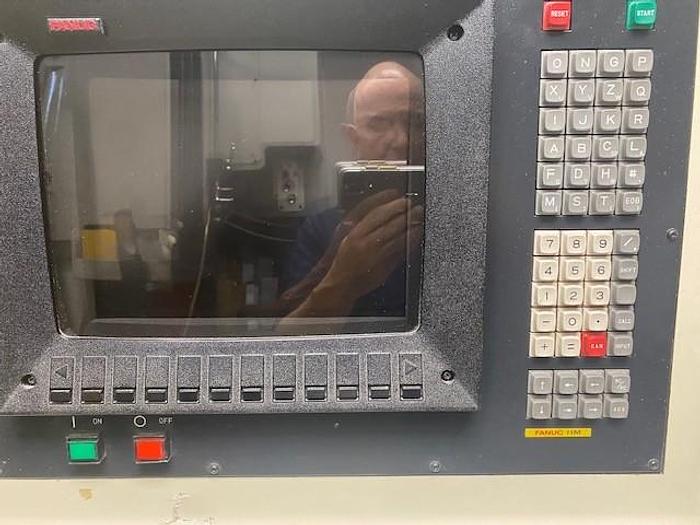

Fanuc 11M

Table travel (longitudinal) X 24"

Spindle head travel (traverse) Y 16"

Cross-rail vertical travel 18"

Distance max. from table top to spindle nose 24"

Tee slot (distance x No. of slots) 100 x 4

Rapid traverse speed X 5000 mm/min.

Maximum permissible load on table 750 kg

Rapid traverse speed Y 5000mm/min.

Vertical traveling speed 500 mm/min.

Spindle speed range 40 - 500 RPM

Rapid traverse speed Z 3000 mm/min.

Milling speed 1 - 2000 mm/min.

Maximum drilling capacity on diameter 1-1/4"mm

Maximum boring capacity on diameter 130mm

Maximum diameter of milling cutter used 100mm

Min. Resolution Positioning Accuracy:

Machine Dimensions: Length 2566mm, Width 1919mm, Height 2356mm

16 Position automatic tool changer

12" 4th Axis rotary table

Specifications

ManufacturerMitsui Seiki
Model4DN 4-axis Cnc Jig Borer
ConditionUsed
