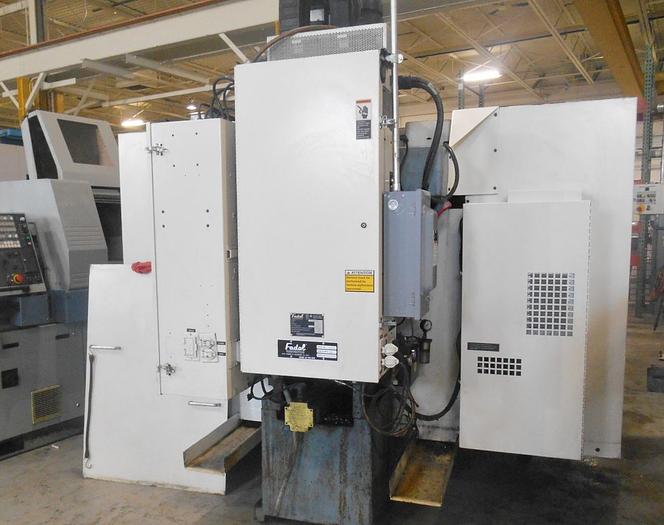

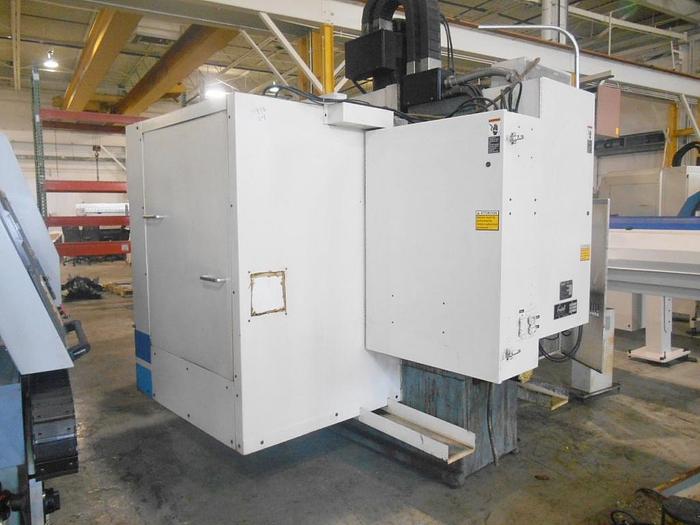

2001 Fadal VMC2216

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

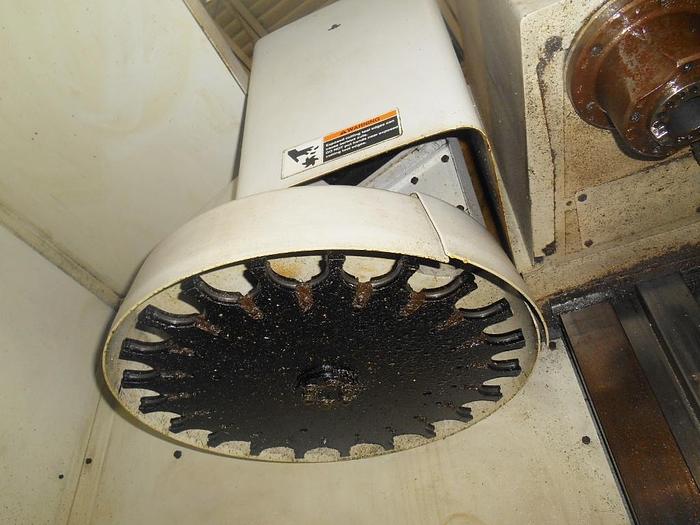

FADAL VMC2216 CNC VERTICAL MACHINING CENTER Serial number: 012001122995 Year New: 2001 SPECIFICATIONS: (note: Specifications are factory catalog specs to be verified by purchaser) X-Axis Travels: 22" Y-Axis Travels: 16" Z-Axis Travels: 20" Table Size: 39” X 16” Rapid Traverse (X/Y): 900 IPM (Z) 700 IPM Spindle Speed: 10,000 RPM Spindle Taper: CAT40 ATC, Number of Tools: 21 ATC Spindle Drive Motor: 15 HP CNC Control: Fadal 32MP Dimensions: 98" x 77" x 103" Machine weight: 8,300 LBS Maximum table work weight capacity: 2,600 lbs FEATURES: Flood coolant, Fadal MP-32 CNC Control, A/C Motor drives

Specifications

ManufacturerFadal
ModelVMC2216
Year2001
ConditionUsed
