2007 Haas SL-20T

Livonia, MI

Description

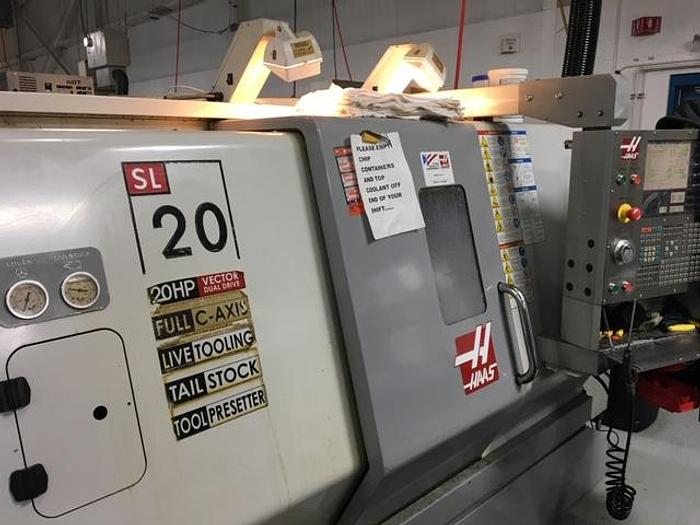

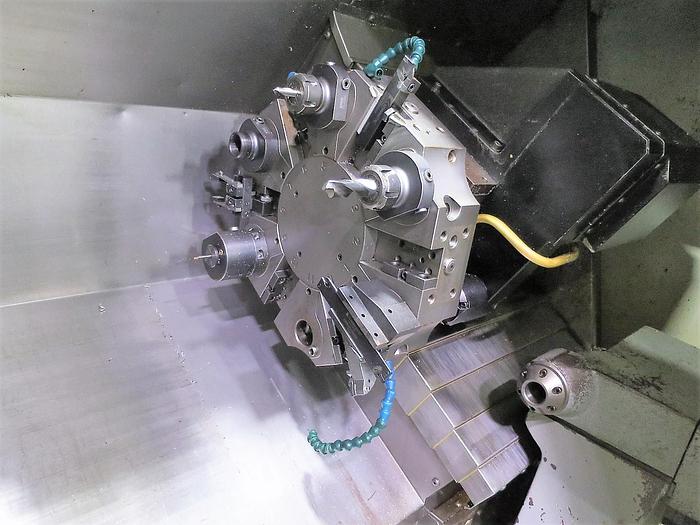

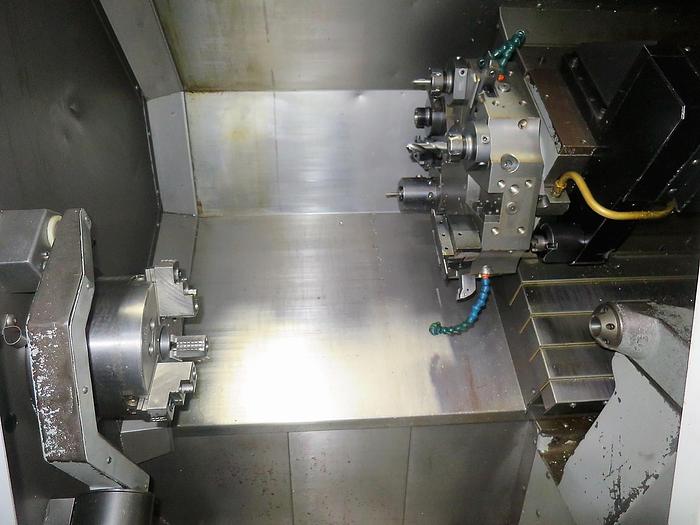

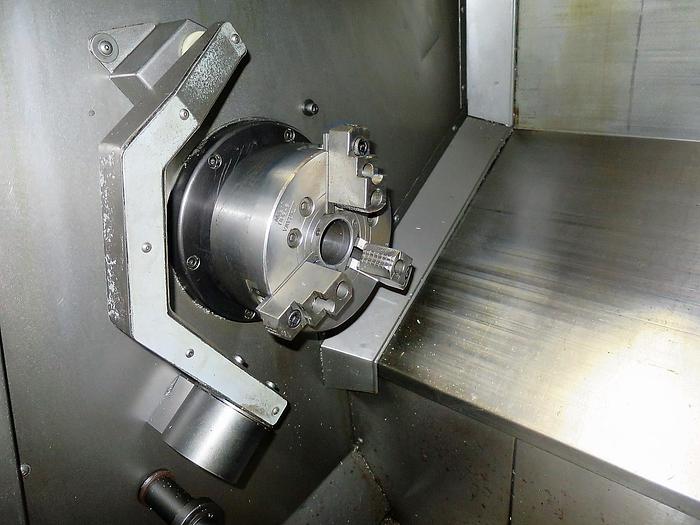

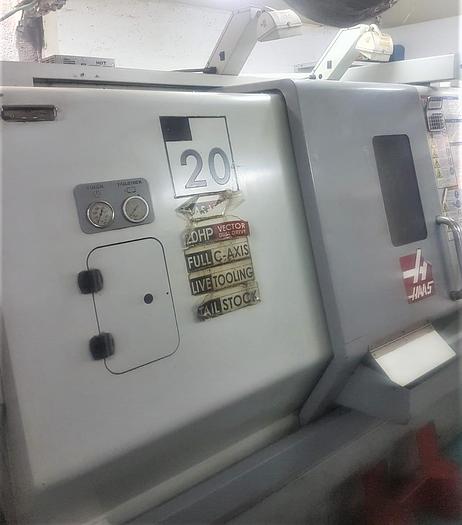

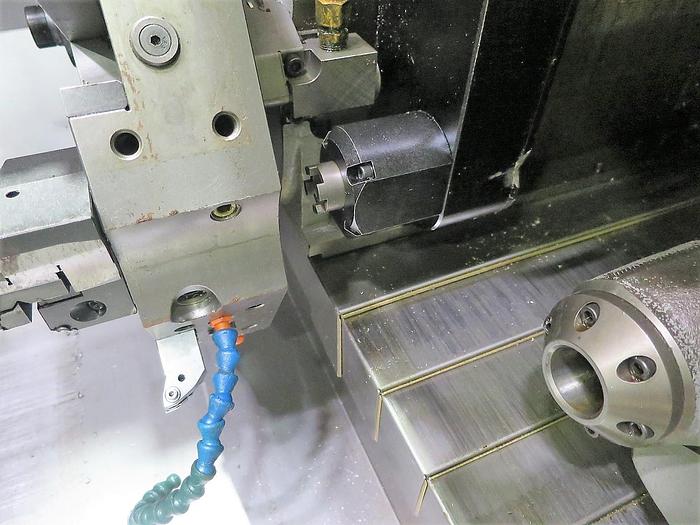

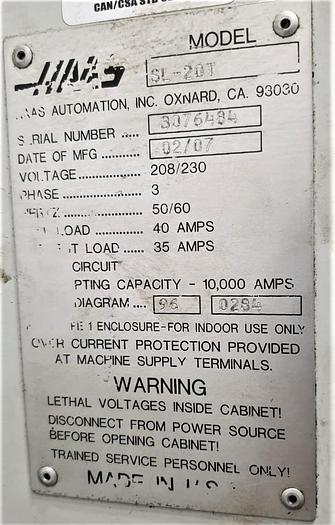

HAAS SL-20 3-AXIS CNC TURNING CENTER WITH LIVE TOOLING AND C-AXIS NEW 2007 S/N 3076484 Specifications 8.3" Hyd Chuck Maximum Swing Over Bed/Cross Slide: 23" / 9.5" Maximum Turning Diam. / Length: 10.3"/20" Center Distance: 24" Maximum Bar Capacity: 2.0" X-Axis Travel: 8.45" Z-Axis Travel: 20" Spindle Nose / Spindle Bore: A2-6" / 3.0" Spindle Speed: 5,000 RPM Spindle Motor / Torque: 30 HP / 120 ft/lbs. Live Tool Motor / Live Tool Speeds: 5 HP / 3,000 RPM Turret Type: 10 Position VDI Turret Rapid Traverse Rates: 710 IPM Tailstock Taper / Travel: MT #4 / 20" Machine Dimensions: 126.5" x 62" x 72" Machine Weight: 9,000 lbs. Equipped With Live Milling Capability Full C Axis Spindle Rotation 8.3" 3 Jaw Hydraulic Chuck Fully Programmable Tailstock Tool Presetter Parts Catcher Chip Auger VDI Style Turret Auto Jet Air Blast by M Code Rigid Tapping RS 232 Port Interface High Intensity lighting

Specifications

ManufacturerHaas
ModelSL-20T
Year2007
ConditionUsed
