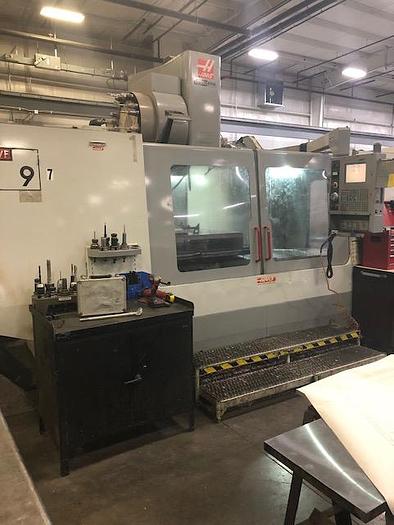

2002 HAAS VF-9

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

2002 HAAS VF-9B/40 delivered in 03

Travel: X-Axis 84in
Y-Axis 40in
Z-Axis 30in
Table Size 84in x 36in
Spindle Speed 10, 000 RPM
Spindle Taper Cat 40
Spindle Nose to Table Top 4in - 34in
Spindle Motor 30 HP AC
Tools 24
Table Load Capacity 4000 lbs.
Rapid Traverse Rates (X, Y & Z) 600 IPM
Tool Change Time (C - C / T - T) 5 / 4.6 Seconds
Max Tool Diameter 3.5"
Max Tool Weight 12 lbs.
Machine Dimensions (L x W x H) 214" x 124" x 128"
Machine Weight 28, 260 lbs.

FEATURES:
HAAS 32-BIT CNC CONTROL
9" Monochrome CRT
3.5" Floppy Disc Drive
Graphic Display
Rigid Tapping
10, 000 RPM Spindle with 30 HP Two Speed Gearbox

Brushless AC Servo Motors

Programmable Coolant Nozzles
24 Position Side Mount Tool Changer
Remote Jog Handle
Chip Auger
High Intensity Lighting
Green Indication Light
Manufacture Date 10\02 delivered in 03

Specifications

ManufacturerHAAS
ModelVF-9
Year2002
ConditionUsed
