2007 Haas VF-3SS

Contact us for price

Illinois

Contact Us

orCall 732-367-4130

Description

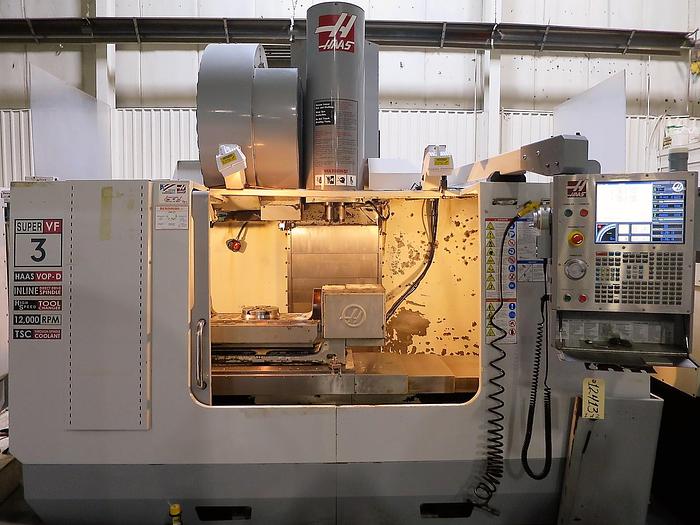

HAAS VF-3SS SUPER SPEED 5-AXIS CNC VERTICAL MACHINING CENTER NEW 2007
Serial Number
1061512

Specifications
Travels:
Maximum X axis 40"
Maximum Y axis 20"
Maximum Z axis 25"
Spindle nose to table (min.) 4"
Spindle nose to table (max.) 29"
Standard table:
Length 48"
Width 18"
Max. weight on table 1,750 lb
T-slot width 0.625"
T-slot center distance 3.15"
Number of T-slots 5
Spindle:
Taper size #40 Taper
Spindle max speed 12,000 RPM
Drive system Inline direct drive
Max. torque standard 75 ft-lb @ 2,100 RPM
Spindle motor max. rating 30 HP
Bearing lubrication Air/Oil Injection
Cooling Liquid cooled
Axis Motors:
Max. thrust rating X 3,085 LB
Max. thrust rating Y 3,085 LB
Max. thrust rating Z 3,923 LB
Feedrates:
Rapids on X axis 1,400 IPM
Rapids on Y axis 1,400 IPM
Rapids on Z axis 1,400 IPM
Max. cutting 833 IPM
Cont. on Page 2
Tool changer:
Capacity standard 40 + 1
Tool type / taper BT 40
Max. tool diameter std (full) 3.0"
Max. tool weight 12 LB
Changer type standard (optional) SMTC
Tool-to-Tool (avg) 1.6 Sec.
Chip-to-Chip (avg) 2.2 Sec.
Accuracy (Single Axis):
Positioning (+/-) 0.0002"
Repeatability (+/-) 0.0001"
GENERAL
Door opening width 48.5"
Machine weight 12,500 LB
Air required 4 CFM @ 100 psi
Power required 28 KVA

Equipped With
Haas CNC Controls
40 Position side mount Automatic tool changer
High speed machining & Rigid tap
Ethernet hard drive & Floppy drive
Air gun,
Programmable coolant nozzle
Thru spindle coolant 300 psi
Early power failure detection module
Whips probe option (no probe)
Chip auger
, Remote jog handle
4th & 5th Axis interface
4th & 5th Axis Model TR210 Trunnion Type tilt & rotary table
extra z axis clearance
Hi-intensity lighting
Through spindle coolant
Visual quick code, intuitive programming system
Spindle orientation,
Macros,

Specifications

ManufacturerHaas
ModelVF-3SS
Year2007
ConditionUsed
