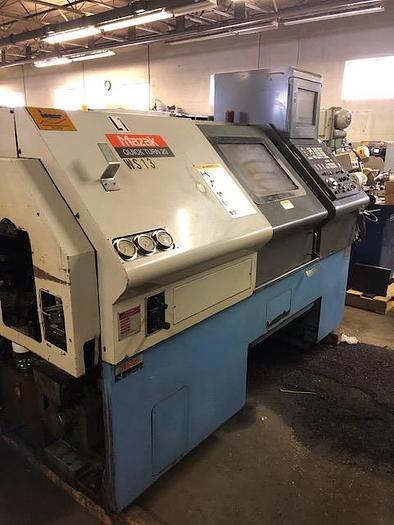

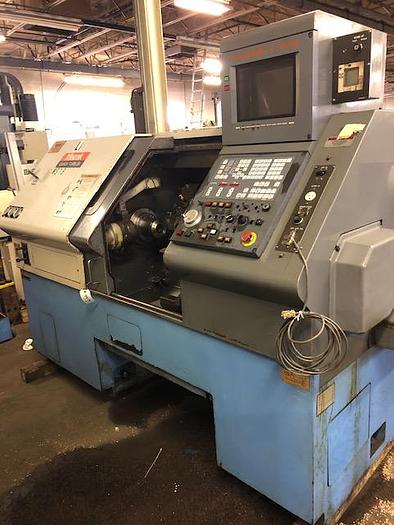

1995 MAZAK QT-20 CNC Lathe with Tailstock and T Plus control
No longer available
1995 MAZAK QT-20 CNC Lathe with Tailstock and T Plus control
$14,900 (USD)
Livonia, MI
Description
Mazak Model QT-20 Univ 1995 Mazatrol T-Plus
Year 1996 S/N 118323
Technical details
Max. Swing Over Carriage 17.32"
Max. Turning Diameter 11.81"
Max. Machining Length 19.68"
X-Axis Travel 7.09"
Z-Axis Travel 20.08"
Spindle Speeds 5000 Rpm
Spindle Bore 2.44"
Max. Diameter Bar Capacity 2"
Spindle Nose A2-6
Rapid Traverse X / Y 1200 Ipm / 1300 Ipm
Main Motor Drive 20 / 15 Hp
Approx. Weight 9,500 Lbs.
Equipped With

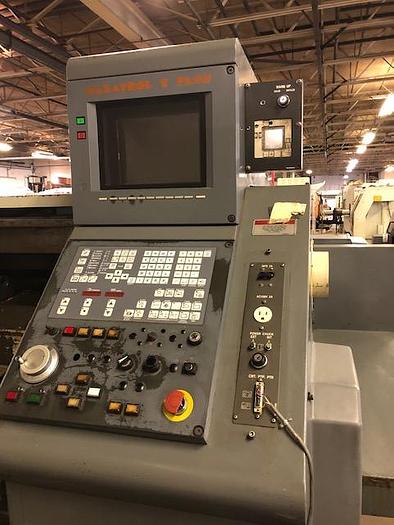

Control Mazatrol T-Plus
•Tail Stock
Tool Eye

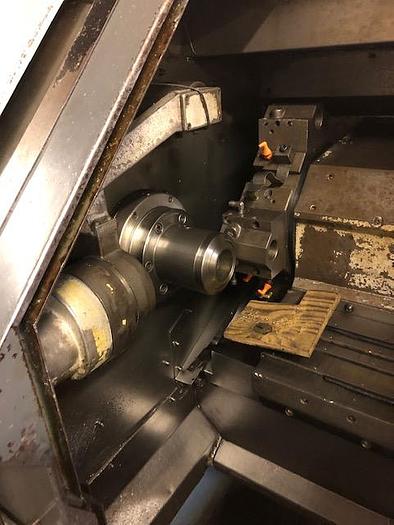

•8 Station Turret
Collet chuck
Coolant tank
•Coolant System
Specifications
| Manufacturer | MAZAK |
| Model | QT-20 |
| Year | 1995 |
| Condition | Used |
