1995 Yang ML-25A

$11,900 (USD)

Livonia, MI

Contact Us

orCall 732-367-4130

Description

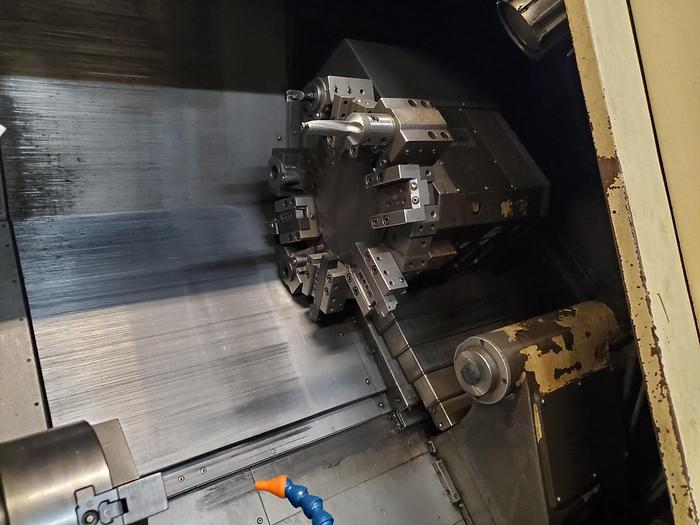

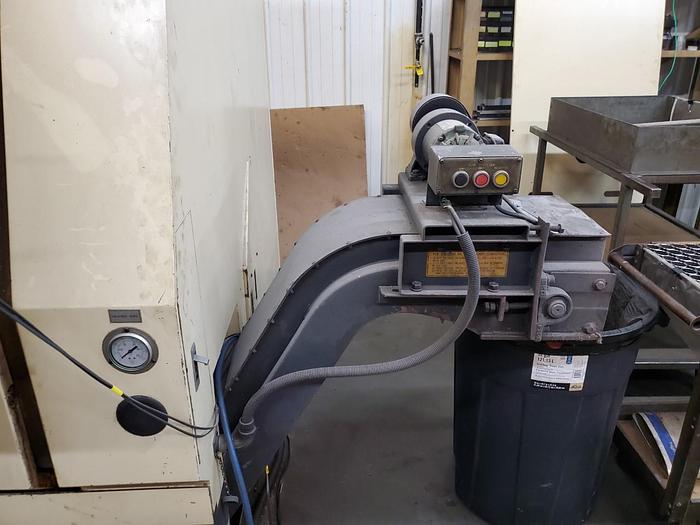

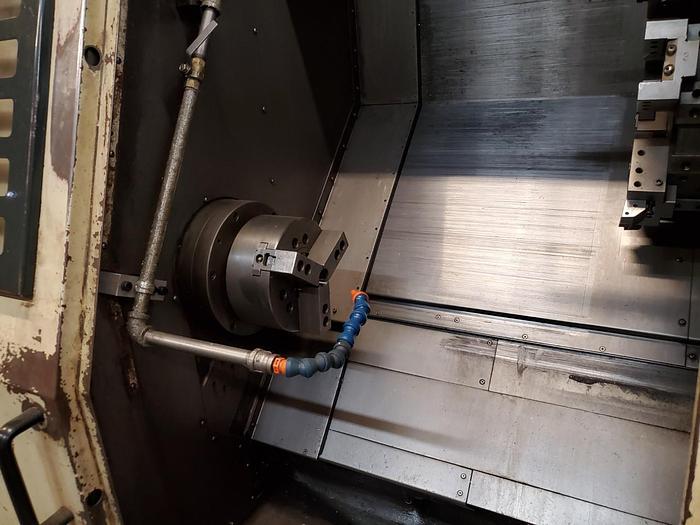

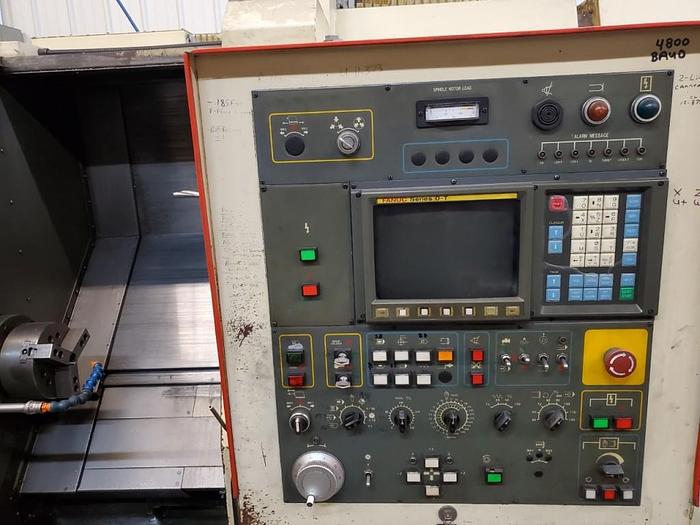

Yang ML-25A CNC Lathe with Fanuc OT Control, 8" 3 Jaw Chuck, 10-Station Turret, Tailstock loads of tool holders Chip Conveyor. 1995 Swing Over Bed Diameter - 21.6 Chuck Diameter - 8" Swing over saddle - 13 Maximum Distance Between Center - 23 Maximum Longitudinal Travel - 20 X axis feed motor : FANUC AC servo motor 5S. 0.9 Kw. Z axis feed motor - FANUC AC servo motor 10S 1.8 Kw Spindle drive motor : FANUC AC spindle motor 8S 7.5 Kw / 11 Kw. Rapid feed of Z Axis - 12 m/min Maximum Cross Travel : 8 Rapid feed of X Axis - 20 m/min Front bearings bore Diameter - 4" Thru hole Diameter - 3" Taper of spindle bore - MT NO. 7 Spindle Speed - 45 - 4500 RPM Diameter of tail stock Spindle - 3.3 Height from bed to spindle center line - 11 Dimension : 13 x 6 x 7 Weight of the machine - 5000 Kg 8" 3 Jaw Chuck, 10-Station Turret, Tailstock loads of tool holders Chip Conveyor.

Specifications

ManufacturerYang
ModelML-25A
Year1995
ConditionUsed
