2011 Doosan DNM400

Contact us for price

Illinois

Contact Us

orCall 732-367-4130

Description

DOOSAN DNM400 CNC 3-AXIS VERTICAL MACHINING CENTER 2011
S/N 1089873

Specifications
Doosan DNM-400 Specifications:

Travels:
X-Axis: 30.2″
Y-Axis: 17.1″
Z-Axis: 20.1″
Spindle Nose to Table (Min.- Max.): 5.91″ – 24.25

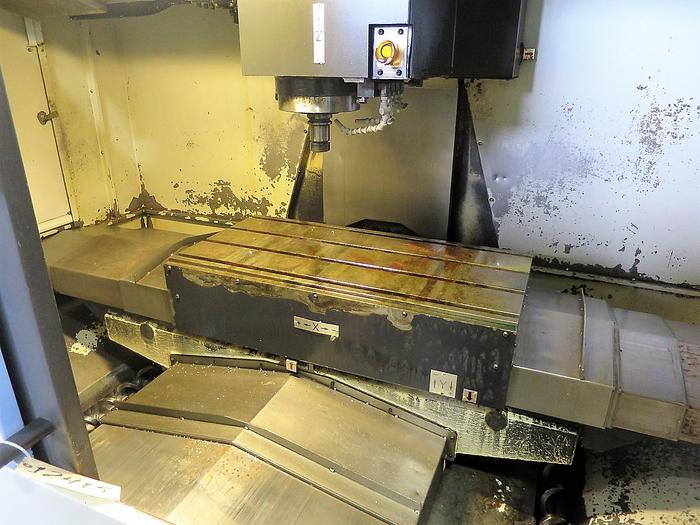

Table:
Length: 36.2″
Width: 17.1″
Max Weight on Table: 1320 lbs
T-Slot no. & Width: 4 X 0.7″

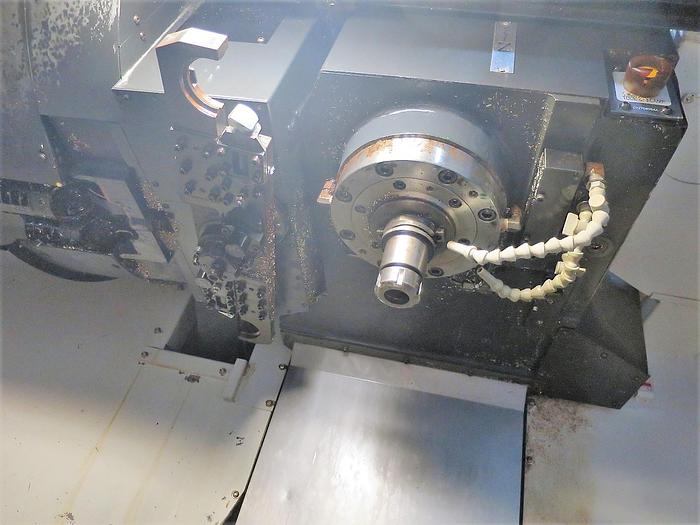

Spindle:
Taper SPINDLE 40
Speed Range: 60 – 8,000 RPM
Spindle Power: 15 kw

Feed rates:
Rapid X,Y & Z: 1417 inch/Per Minute
Cutting Feedrate: 595″ inch/ Per Minute

Automatic Tool Changer:
40 Taper
Capacity: 30
Max Tool Weight: 17.6 lbs
Max Tool Length: 11.8″
Max Tool Dia.: 5.9″
Tool Change Time: 1.5 second

General:
Air Required: 90 psi, 4 scfm
Power: 205-220v / 50kva / 3-Phase
Overall Dimensions: 132″ x 101″ x 110″ High
Weight: 12500 lbs

Equipped With

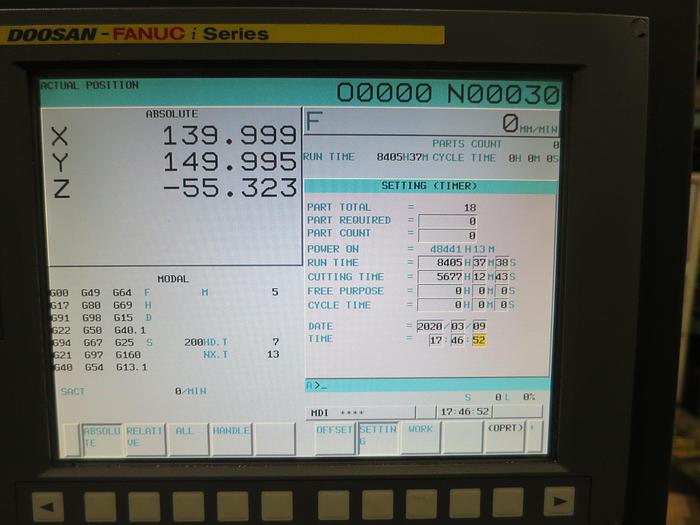

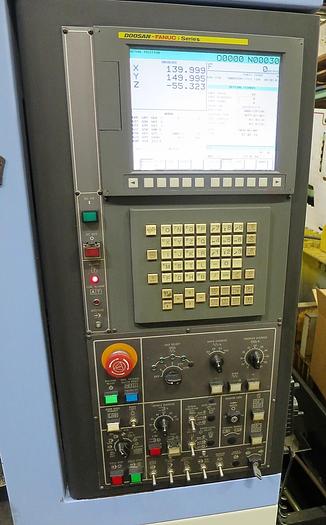

Fanuc i series CNC Control
30 Tools Bidirectional Tool Changer
PCMCIA Card Slot
USB, RS-232 & Ethernet Connectivity
Wide Spaced Linear Guides Way Construction
Powerful 15 kw high torque spindle motor
Spindle Orientation
Rigid Tapping
Helical Interpolation
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Work light

Specifications

ManufacturerDoosan
ModelDNM400
Year2011
ConditionUsed
