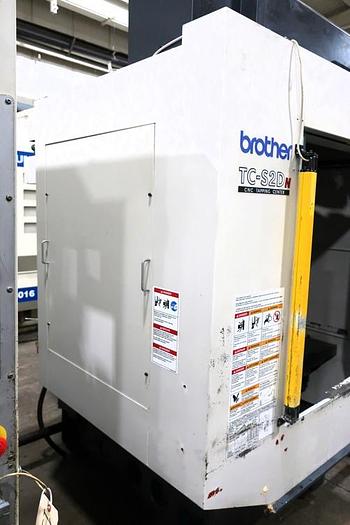

2014 BROTHER TC-S2D

2014 BROTHER TC-S2D

Contact us for price

Location:Illinois

Contact Us

orCall 732-367-4130

Description

2014 BROTHER TC-S2D 3-AXIS CNC DRILL TAP VERTICAL MACHINING CENTER

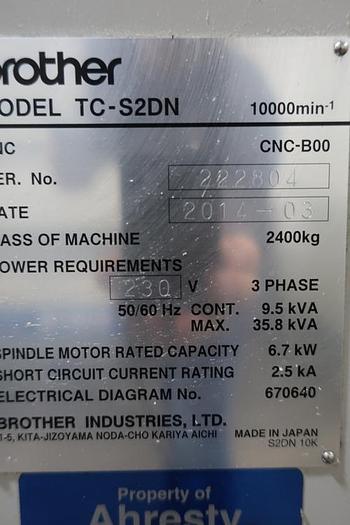

S/N: 222804


 SPECIFICATIONS:


X-Axis Travel 19.7"

Y-Axis Travel 15.7"

Z-Axis Travel 11.8"

Distance Between Table top and Spindle 7.1" to 18.9"

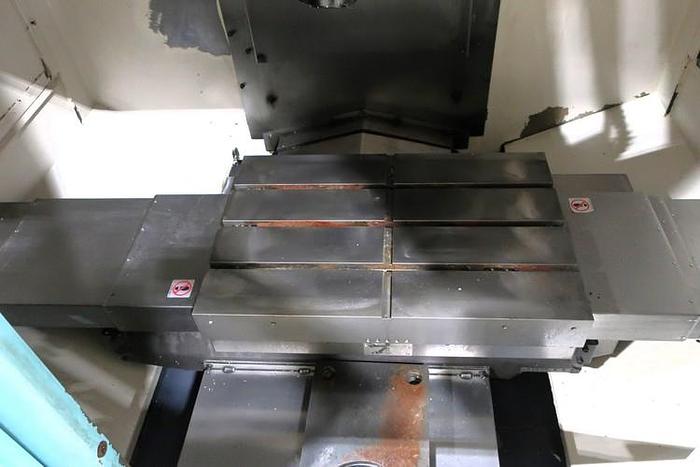

Work area size 23.6" x 15.7"

Max. Table load capacity 551 Lbs.

Spindle speeds 10 to 10,000 RPM

Speed during tapping 6,000 RPM

Spindle Taper BT-30

Spindle Motor 14 HP

Tool Storage Capacity 14

Cutting Feed Rate (X,Y) 04 to 394 IPM

Cutting Feed Rate (Z) 0.4-7.87 IPM

Rapid Traverse Rate 1969 IPM

Floor 81"x 87" x 112"H

Machine weight 5,300 lbs.



EQUIPPED WITH:

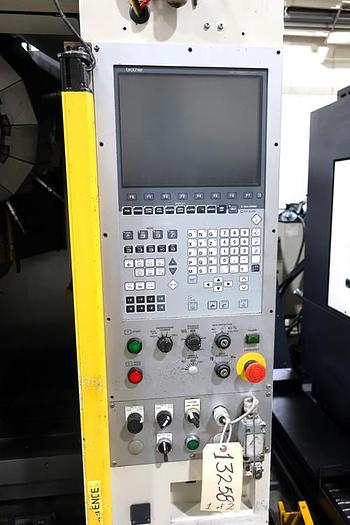

CNC B00 Controls

Misc tool holders

Coolant System

10,000 RPM Spindle

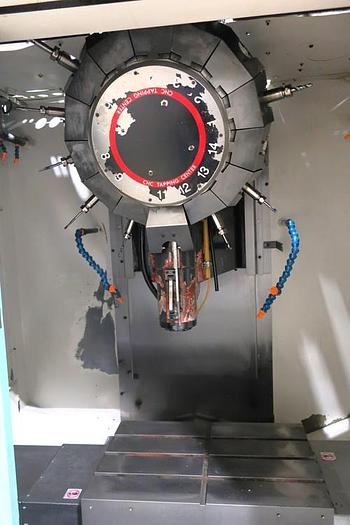

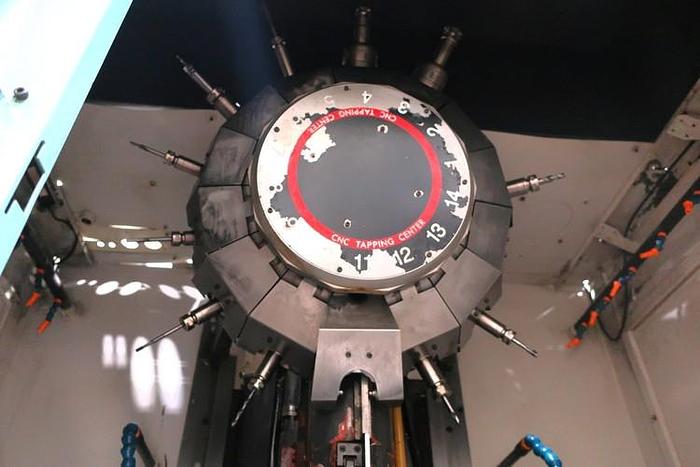

14 Position ATC

*4th axis drive and rotary can be added for an additional cost


Specifications

ManufacturerBROTHER
ModelTC-S2D
Year2014
ConditionUsed
