2019 SMEC (Samsung) SL2000

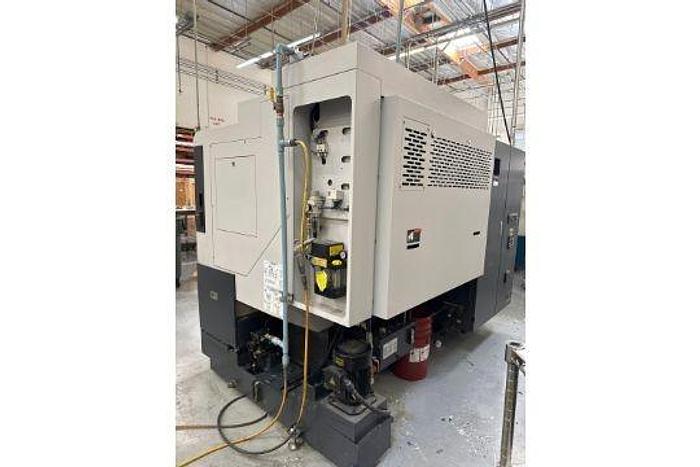

SMEC (Samsung) SL2000 CNC Lathe, 8" Samchully 3-Jaw Chuck, Fanuc 0i TF Control, 12- Station Turret, Tool Prestter, Tailstock, 4500rpm, s/n 19A3N0250, 2019

Specification & Technical Data

Capacity

Swing Over the Bed 22.45″

Swing Over the Cross Slide 18.12″

Max. Turning Diameter 14.18″

Max. Turning Length 21.26″

Main Spindle

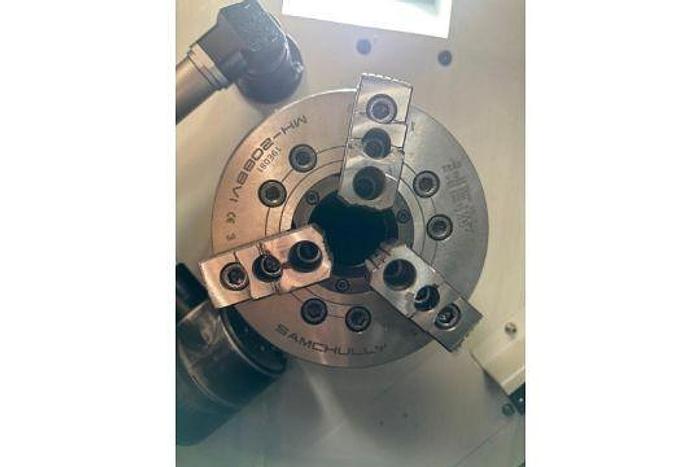

Chuck Size 8″

Spindle speed 4,500 rpm

Spindle Nose A2-6

Bore Diameter 3″]

Draw tube I.D. 2.68″

Spindle motor (Cont./Max) 20.12/24.8

Travel

Axis Travel (X/Z) 8.27″/22.14″

Guide ways Box Guide

Rapid Traverse Rate (X/Z) 944.89/944.89 inch/min

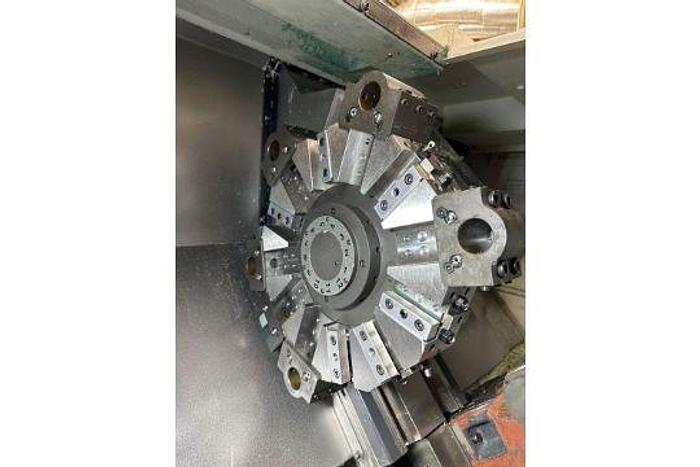

Turret

Number of Tool Positions 12 Indexing Time 0.15 sec Shank Size for Square Tool □1.00 Shank Size for Boring Bar ⌀1.58

Tailstock travel (quill)

Tailstock Travel 17.72″ Tailstock Quill Travel 3.15″ Tailstock Quill Diameter 2.96″

General

Floor Space (with C/C) (L×W) 107.8″ x 63″ (146.97″ x 63″)

Machine Weight 8,598 lbs.
