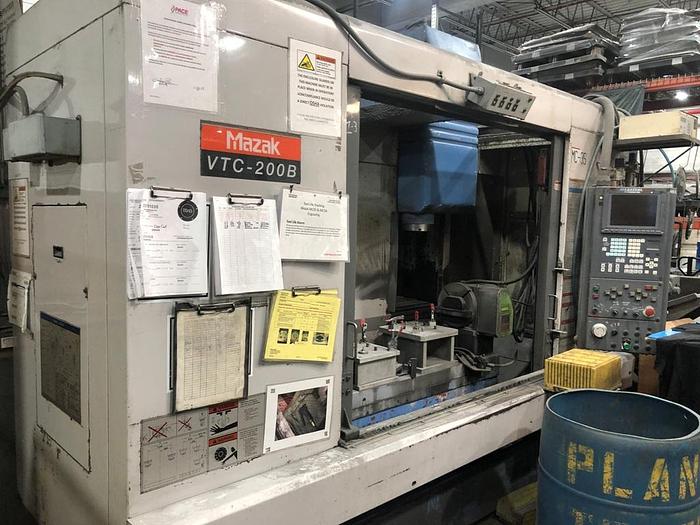

2001 MAZAK VTC-200B,CNC Vertical Machining Center W/ 4th Axis Table

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

2001 Mazak Model VTC-200B,
CNC Vertical Machining Center W/ 4th Axis Table
MAZATROL 640M PC-FUSHION-CNC Programmable Controls
24-Position Cat 40 Automatic Tool Changer
Coolant System
Chip Conveyor

Travels:
X-Axis: 44.09″
Y-Axis: 20.08″
Z-Axis: 20.08″
Rapid Traverse Rates: 1181 Inch Per Minute
Cutting Feed Rates: 315 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 7.09″ – 27.17″

Table:
Length: 57.48″
Width: 20.08″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1800 lbs

Spindle:
Taper Size: 40
Speed Range: 40 – 10,000 RPM
Spindle Power: 20 HP
Max Torque: 90ft-lb @ 2000RPM

Automatic Tool Changer:
Capacity: 24
Max Tool Weight: 18 lbs
Max Tool Dia: 4.33″
Max Tool Length: 13.78″

General:
Air Required: 75 psi
Power: 220v / 3-Phase / 32 kva
Overall Dimensions: 118″ x 116″ x 105″ High
Overall Dimensions: 158″ x 116″ x 105″ High with Chip Conveyor
Weight: 15000 lbs

Specifications

ManufacturerMAZAK
ModelVTC-200B,
Year2001
ConditionUsed
