2011 Star SR32J

2011 STAR SR32J CNC Swiss Screw Type 7 Axis Automatic Lathe Turning

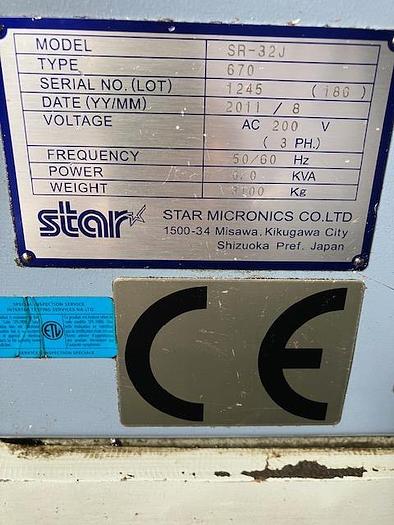

 S/N 1245

Capacity:

Max Turning Diameter: 1.26″ (32 mm)

Max Turning Length: 12.60″ (320 mm)

Max Turning Length with Gripping Unit: 11.26″ (286 mm)

Max Bar Capacity: 1.26″ (32 mm)

Tool Capacity: 18

Spindle:

Main Spindle Index: 0.01 Degree (C-axis control)

Main Spindle Bore: 1.26″ (32 mm)

Main Spindle Speed: 7,000 RPM

Mian Spindle Motor: 3.7 kw

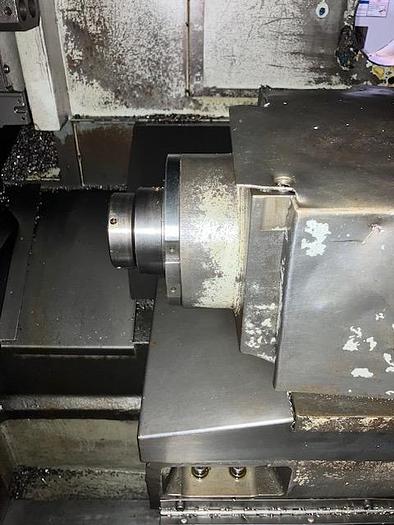

Back Spindle Index: 0.01 Degree (C-axis control)

Back Spindle Speed: 7000 RPM

Back Spindle Motor: 2.2 kw

Standard Tools:

Turning Tools: 5

Stationary Tools: 5

Max Drilling Capability: 33/64″ (13 mm)

Max Tapping Capability: M12 x P1.75

Die Cutting Capability: M12 x P1.75

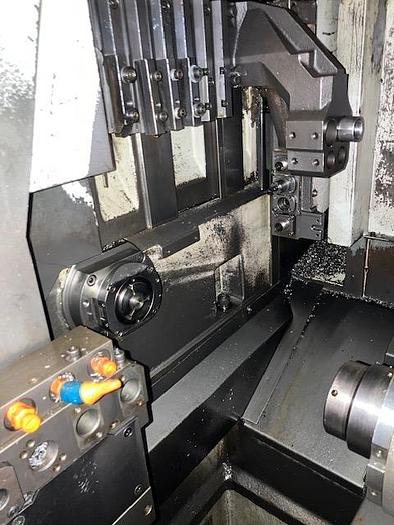

Power Driven Tools Attachment:

Front Working Power Driven Tools: 4

Back Working Power Driven Tools: 4

Max Front Drilling: 25/64″ (10 mm)

Max Front Milling: 25/64″ (10 mm)

Max Front Tapping: M8 x P1.25

Driven Tool Speed: 6000 RPM

Driven Tool Motor: 1 kw

General:

Power Source: AC 220 V/ Three Phase/ 60 Hz

Overall Dimensions: 106″ x 51″ x 75″ High

Weight: 6,834 lbs Approx.

Equipped With:

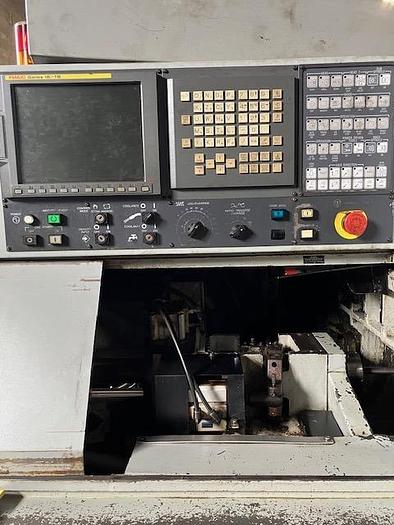

Fanuc 18i-TB CNC Control

Iemca Bar Feeder

Full C Axis and Live Tools Capable

Long Parts Capable

Main & Back Spindle Synchronization

High Speed Rapid Travers: 944 IPM

High Speed Program Processing

Absolute Position Detection

Automatic Lubrication System

Fire Suppression System

High Pressure Coolant System

Mist Collector

Part Conveyor
