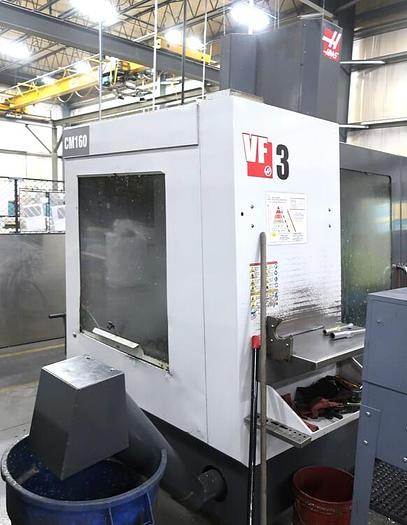

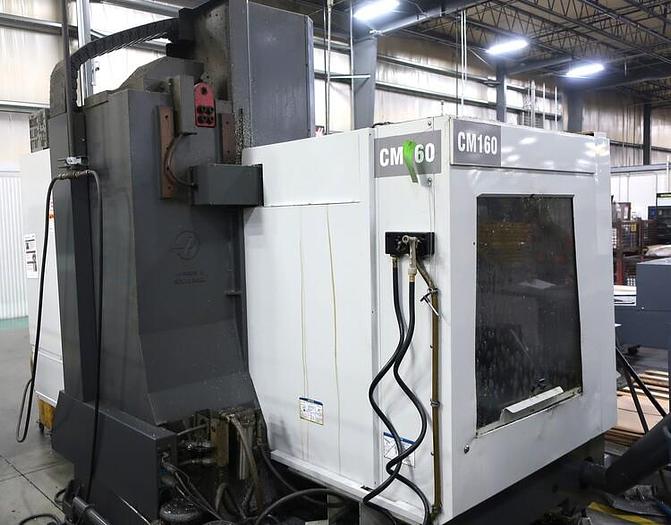

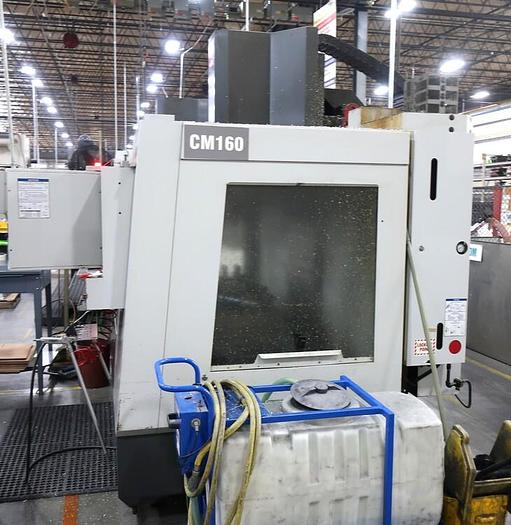

2013 Haas VF-3

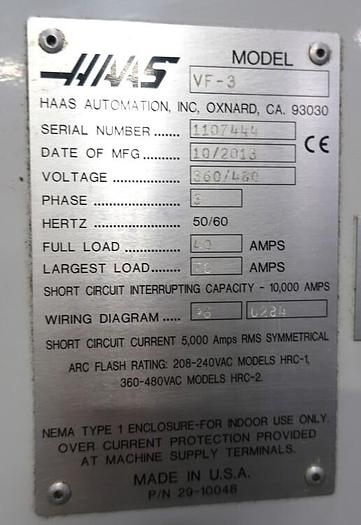

HAAS VF3- CNC PRECISION VERTICAL MACHINING CENTER, NEW 2013

COOLANT THRU, PROGRAMABLE COOLANT NOZZLE, RIGID TAP,

Specifications

Travels:

X Axis 40"

Y Axis 20"

Z Axis 25"

Spindle nose to table (max) 29.5"

Spindle nose to table (min) 4.5"

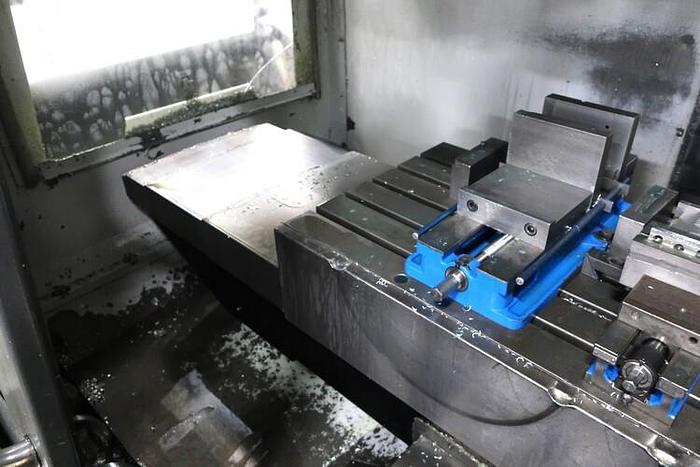

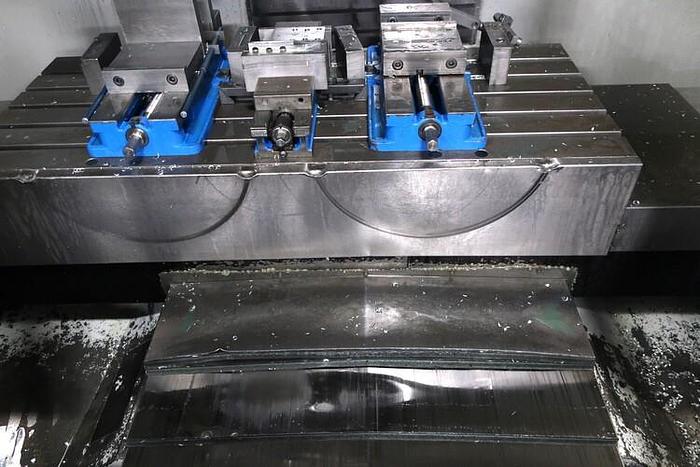

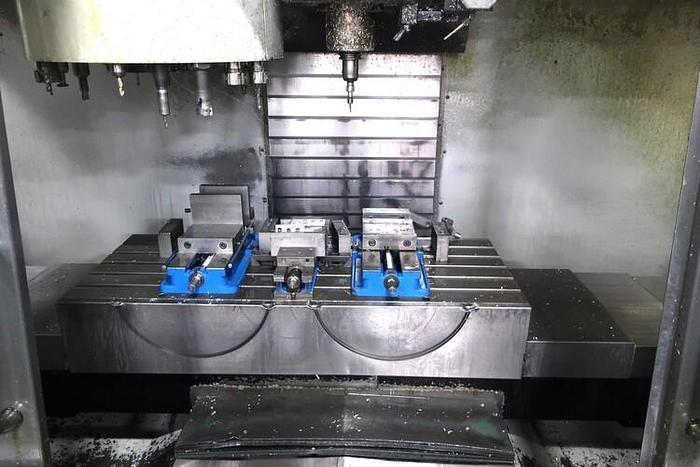

Table:

Length 54"

Width 25"

T-Slot width 5/8"

T-Slot center distance 3.15"

Number of Std T-Slots 5

Max. weight on table (evenly distributed) 3500 lbs

Spindle:

Max rating 30 HP

Max speed 8,100 RPM

Max torque 90ft-lb @ 2000 RPM

Drive system inline direct-drive

Max. torque w/opt gearbox 250ft-lb @ 450 RPM

Taper CT40

Bearing lubrication air/oil injection

Cooling liquid cooled

Feedrates:

Rapids on X, Y & Z 710 in/min

Max. cutting 500 in/min

Axis Motors:

Max. thrust X & Y 2550 lb

Max. thrust Z 4200 lb

Tool changer::

Type Carousel (SMTC Opt)

Capacity 20

Max. tool diameter (full) 3.5"

Max tool weight 12 lb

Tool to tool (avg) 4.2 sec.

Chip to chip (avg) 4.2 sec

General:

Air required 4 Scfm,100 PSI

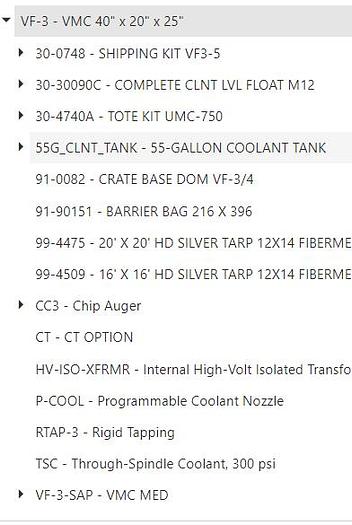

Equipped With

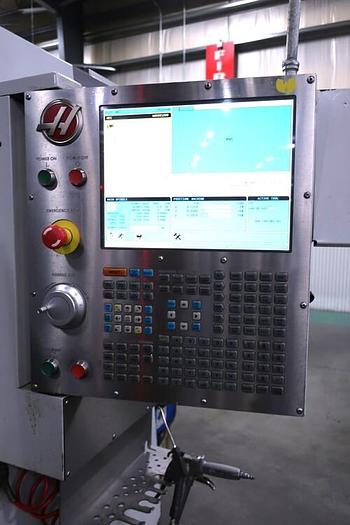

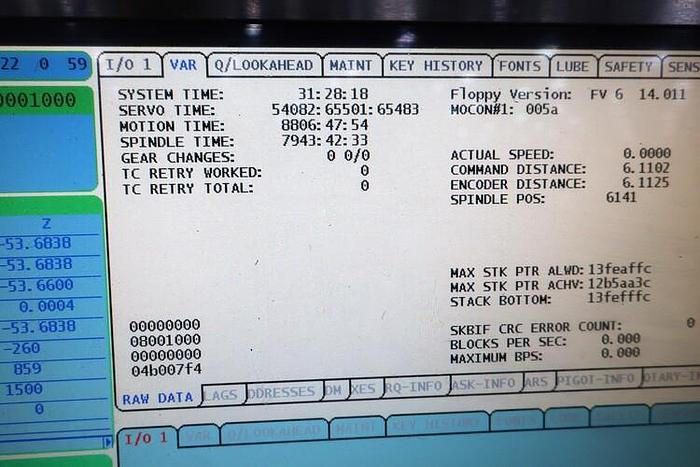

Haas CNC Controls

Rigid Taping

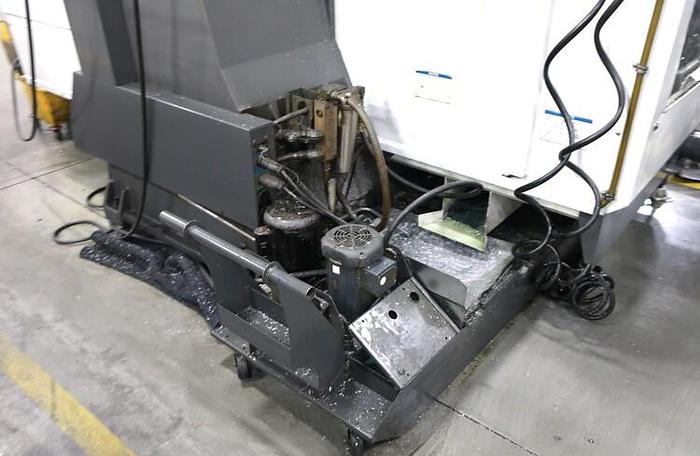

Chip Auger

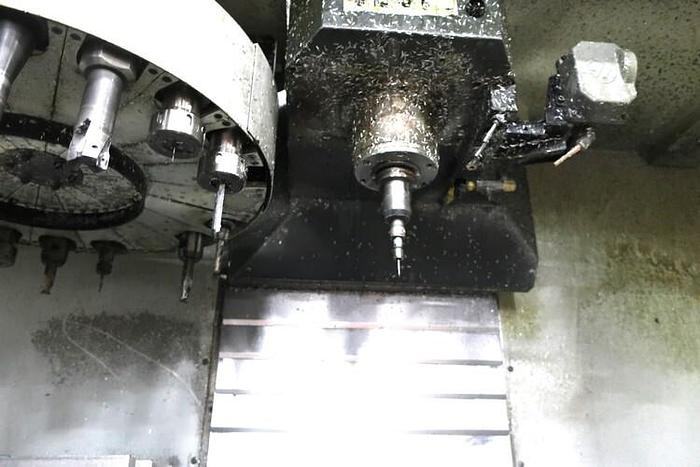

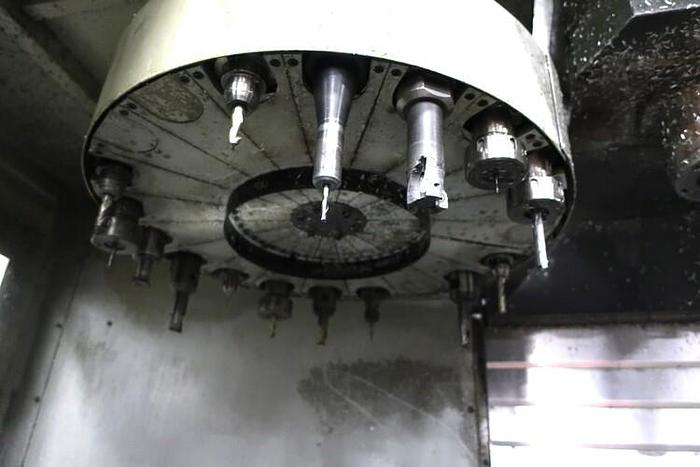

20 Position Tool Changer

High Voltage options

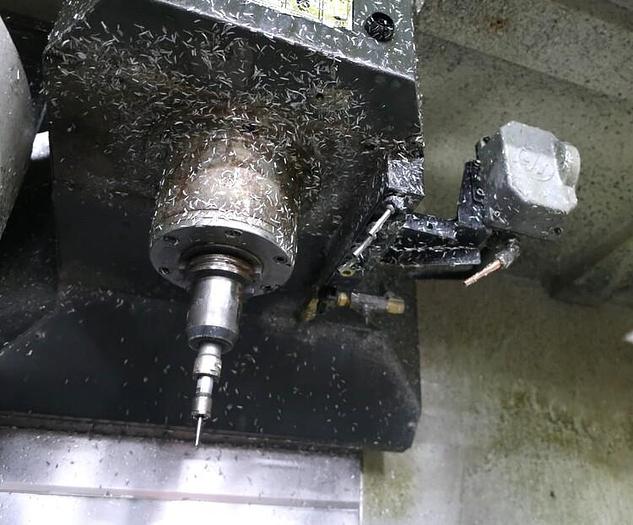

COOLANT THRU SPINDLE

PROGRAMABLE COOLANT NOZZLE
