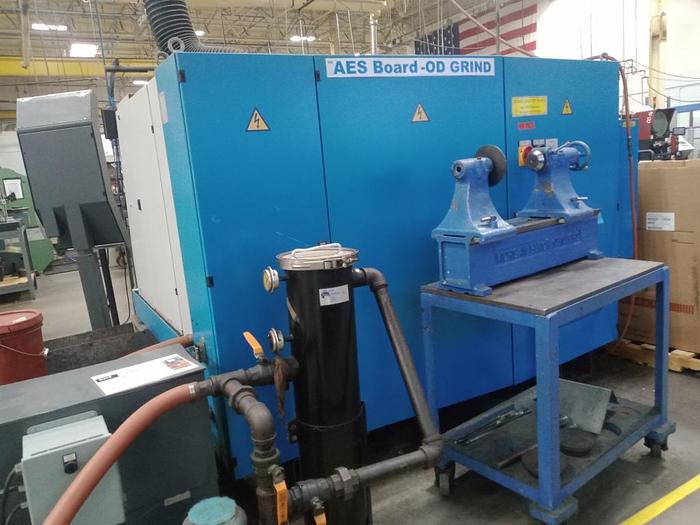

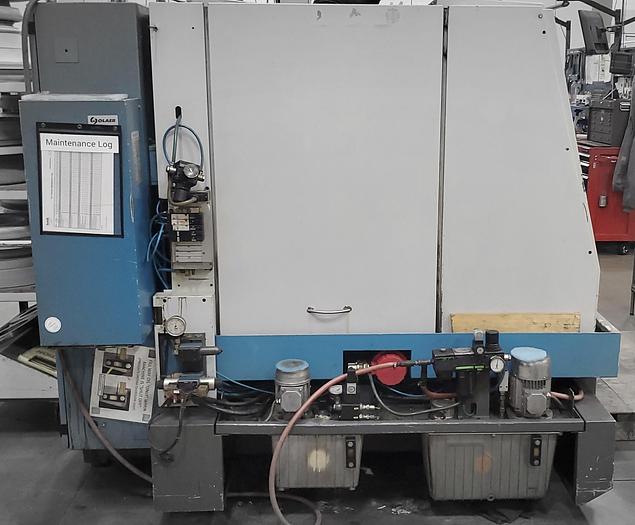

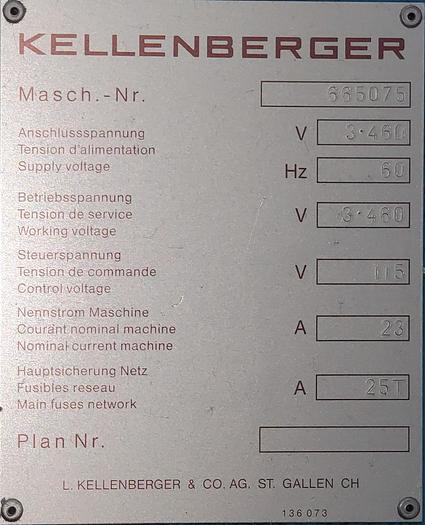

Kellenberger 125/430 Kel-Vision URS CNC Universal Grinder – YEAR 2001

CAPACITY

Center Height………………………………………………4.92”

Free Clamping Length Max………………………………...30”

Grinding Length Max ……………………………………...17”

Workpiece Diameter Max ....................................................9.8”

Wheelhead Drive..................................................................7.5KW Optional 9.8 KW

Grinding Wheel RH..............................................................20” x 3”

Peripheral Speed Max...........................................................6890 SFPM Optional 8860

Universal Swiveling Wheel Head

Manual Swivel

Compound Slide (Z Axis) Max Slide Travel.....................................25.5”

Compound Slide (Z Axis) Max Speed..............................................472 IMP

Compound Slide (Z Axis) Max Speed Max Resolution....................0.1 UM

Grinding Slide (X Axis) Max Travel.................................................12.6”

Grinding Slide (X Axis) Max Speed.................................................236 IPM

Grinding Slide (X Axis) Max Resolution...........................................0.1 UM

Workhead Drive........................................................................... 3KW

Swivel Range Micro Corrector..................................................... +/- 60”

Spindle Speed (Infinitely Variable).............................................. 8 to 800 RPM

Spindle Nose ASA........................................................................ 5/MT 5

Spindle Bore................................................................................... 1.496”

Max Weight of Workpiece Grinding Between Centers................. 220 LB

Permissible Load............................................................................ 74FT-LBS

Tailstock Holding Cone.................................................................... MK4

Lift of Tailstock Sleeve..................................................................... 2”

Dimensions.........................................................................98” Wide x 79” Deep 71” Tall

Approx. Weight..................................................................11,7700 LBS

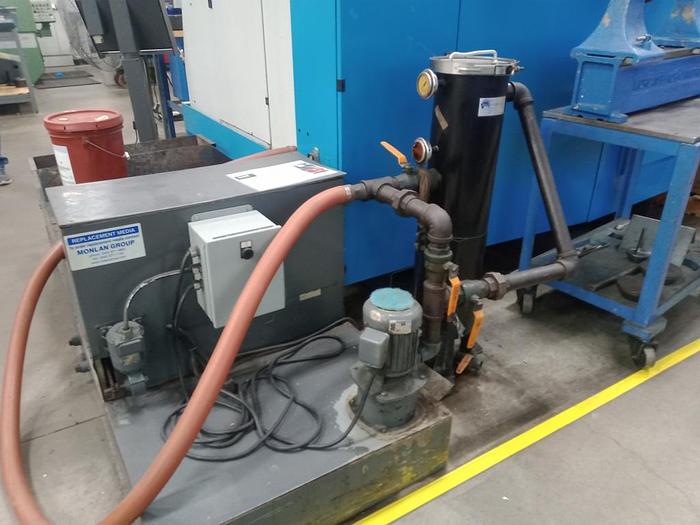

EQUIPPED WITH:

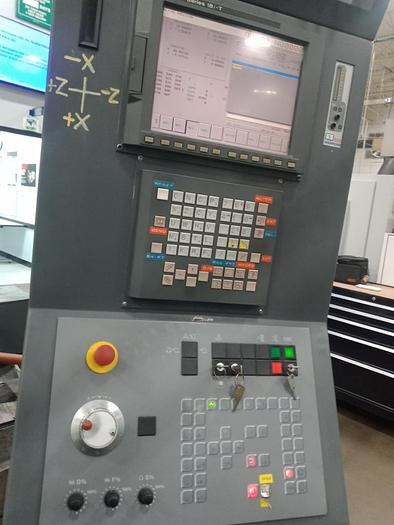

Fanuc 18iTA CNC Controls

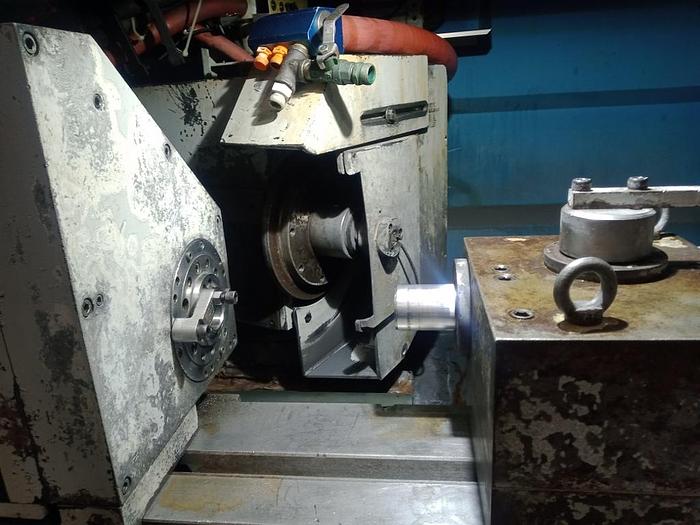

The x & z axis slides are underneath the wheelhead.

The wheelhead is a manual swivel 2.5 degrees.

The base is made from hardinge harcrete (epoxy granite).

20” OD grinding wheel

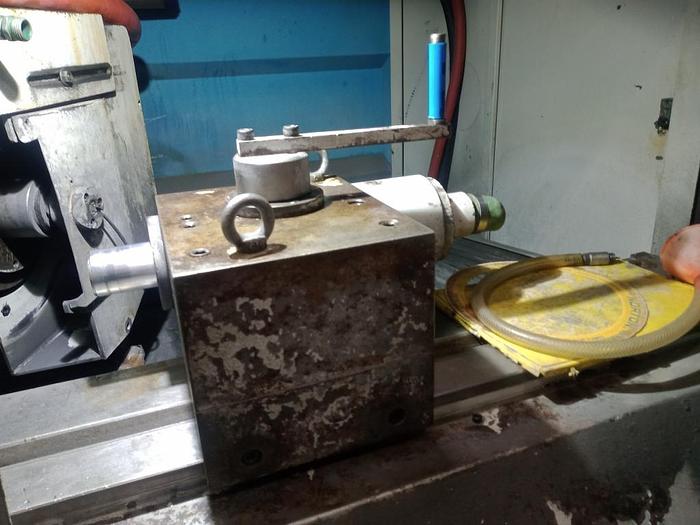

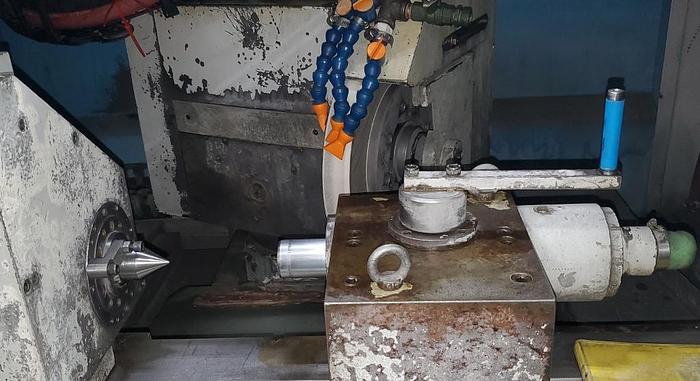

Single Point Dresser on tail stock.

Fanuc Servo driven head stock.
