2001 FADAL VMC 4020AHT

Contact us for price

Illinois

Contact Us

orCall 732-367-4130

Description

FADAL 4020AHT 3-AXIS CNC VERTICAL MACHINING CENTER

Manufacturer
FADAL

Manufacturing Year
2001

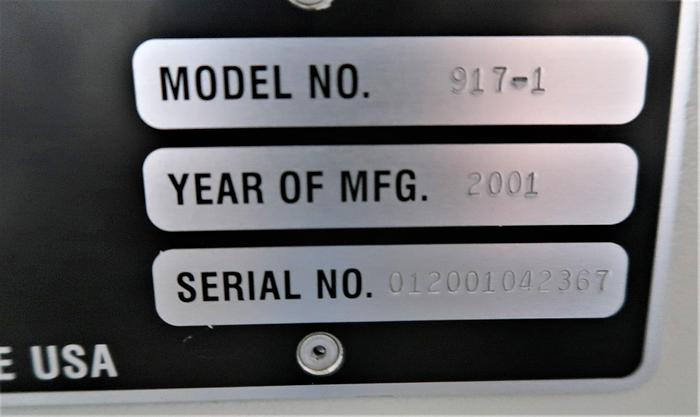

Serial Number
012001042367

Specifications
FADAL 4020A HT Specifications:
Travels:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 28″
Rapid Traverse Rates: 900 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

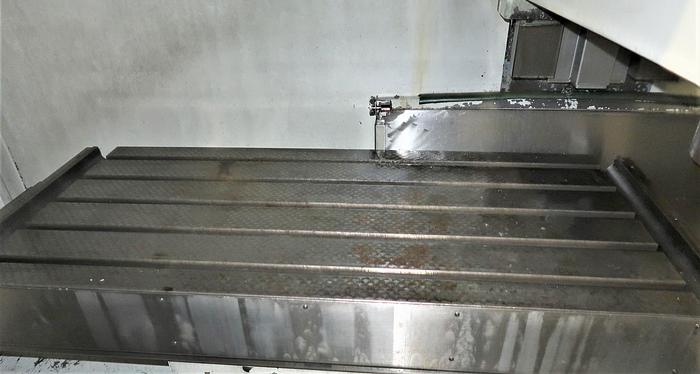

Table:
Length: 48″
Width: 20″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 3500 lbs

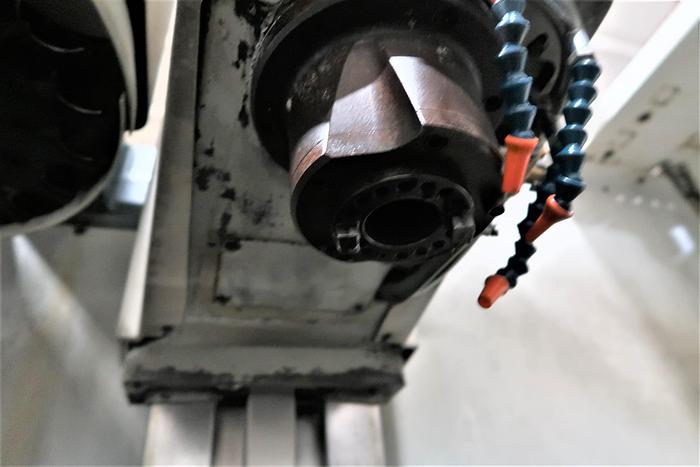

Spindle:
Taper Size: CAT 40
Speed Range: 0 – 7500 RPM
Spindle Power: 20 HP
Max Torque: 230ft-lb @ 500RPM

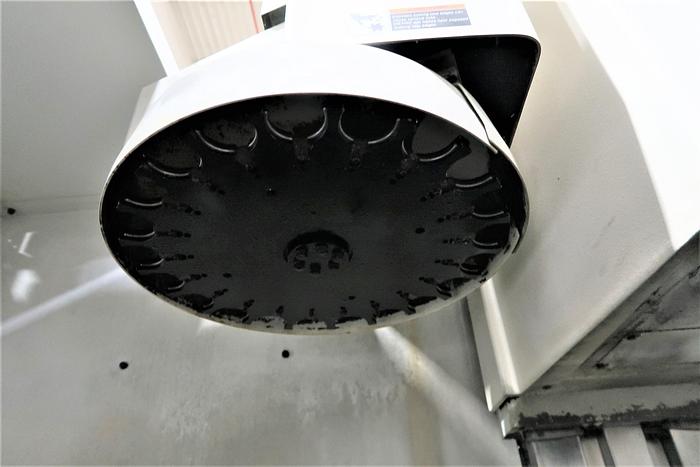

Automatic Tool Changer:
Capacity: 21
Max Tool Weight: 15 lbs
Max Tool Dia: 6″
Max Tool Length: 15″
Tool Changing Time: 4.2 Seconds
General:
Air Required: 100 psi, 4 scfm
Power: 480v / 1 kva / 3-Phase
Overall Dimensions: 122″ x 100″ x 100″ High
Weight: 12500 lbs

Equipped With

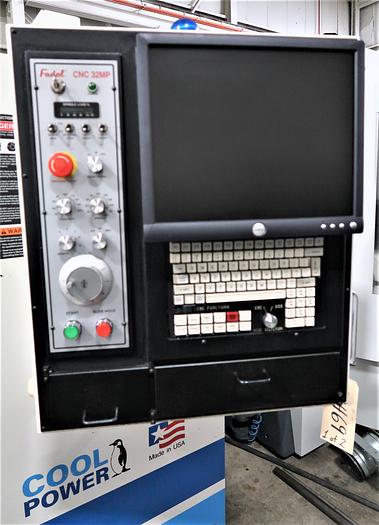

FADAL MULTI PROCESSOR CNC CONTROL
22.5HP High Torque Spindle Motor
7500 RPM High Precision Spindle
21 Station Automatic tool changer
Floppy Drive
Rigid Tapping
Brushless type servo drive motors on all axis
Programmable coolant
Telescopic way covers
Flood Coolant system

Specifications

ManufacturerFADAL
ModelVMC 4020AHT
Year2001
ConditionUsed
