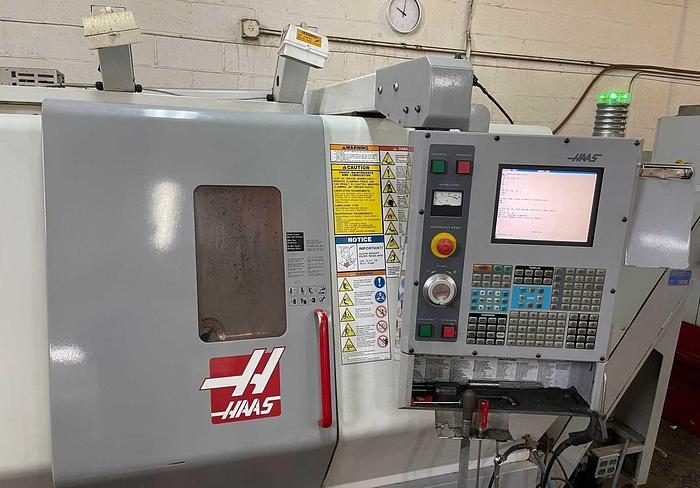

2004 Haas SL-20T

2004 Haas SL-20T

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

HAAS SL20T CNC TURNING CENTER – 2004 – RUNS GREAT -W/ TAILSTOCK & 3-JAW CHUCK



PRODUCT SPECS:

Model: HAAS SL-20T (2004) Serial Number 67293

HAAS SLT-20 CNC Lathe Turning Center 2004


Spec Sheet:

Serial # 67293

Year of manufacture- 2004

Swing over front apron- 23”

Swing over cross slide- 9.5”

Standard bar capacity- 2”

Maximum cutting diameter- 10.3”

Maximum cutting length- 20”

Maximum cutting length with standard workholding- 19”

Maximum spindle speed- 4,000 R.P.M.

Peak horsepower- 20 H.P.

Spindle nose- A2-6

Spindle bore- 3”

Draw tube bore- 2.06”

X-axis travel- 8.45”

Z-axis travel- 20’’

Rapid traverse rate- 1,200 I.P.M.

Number of stations in turret- 10

Tool size (OD turning)- 1”

Boring bar rear clearance (from turret face)- 4.37”

Index time (one tool)- 1 sec

equipped with:


Brushless AC servo drives

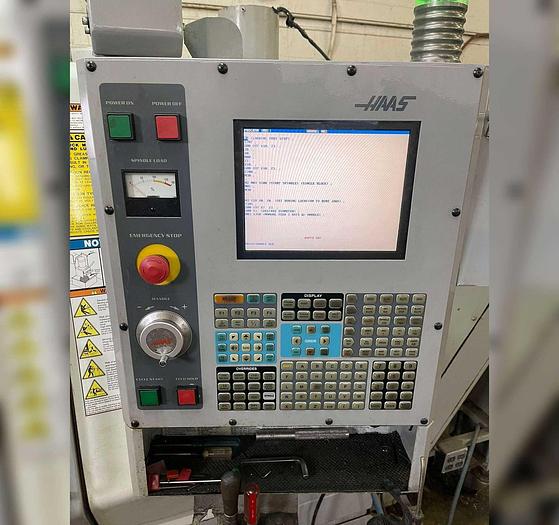

HAAS CNC control

Chip conveyor

Work lights

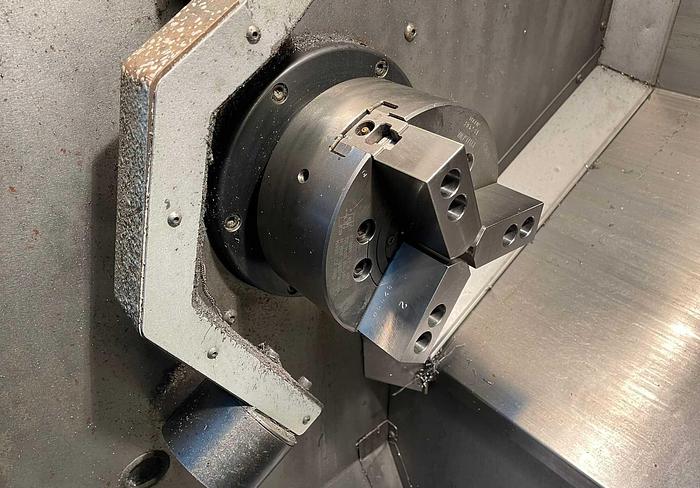

Kitagawa B-208 Hydraulic 3-jaw chuck

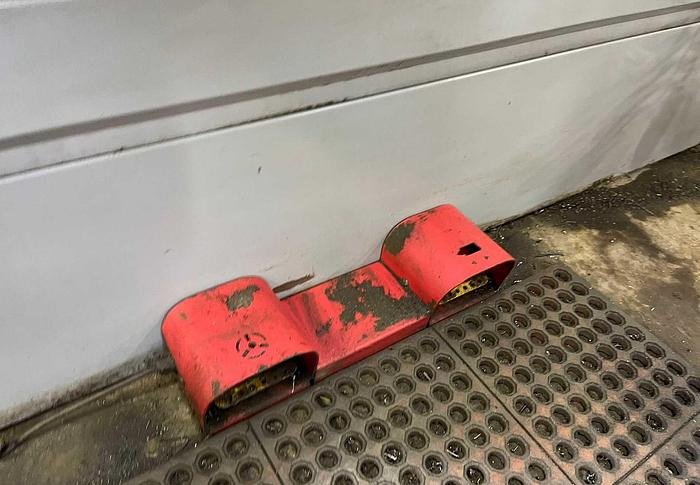

Foot pedal

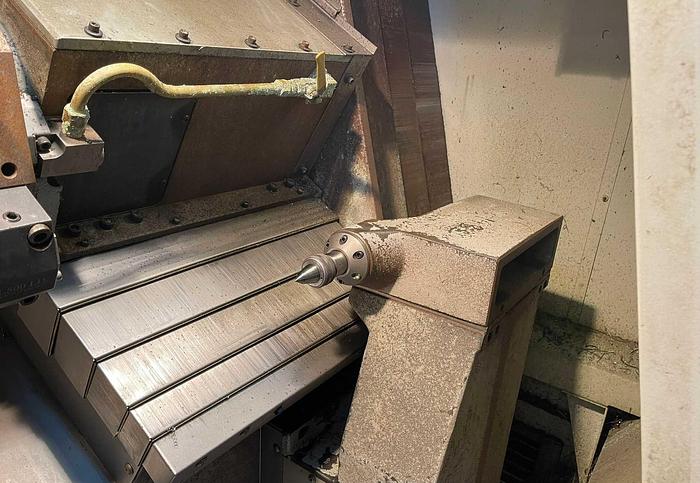

Tailstock: Yes

BIJUR automatic lubrication system

2 H.P. 3/60/220 volt hydraulic pump motor and tank

20/15 H.P. (30 Minute/Continuous Duty) AC vector spindle drive

Machine weight- 9500 Lbs.

Machine dimensions- 96” L x 65” W x 75’’ H

Machine location- F.O.B. Detroit, MI Loaded on truck free

Inspect under power Condition: Very good

Specifications

ManufacturerHaas
ModelSL-20T
Year2004
ConditionUsed
