2005 Haas VF-3

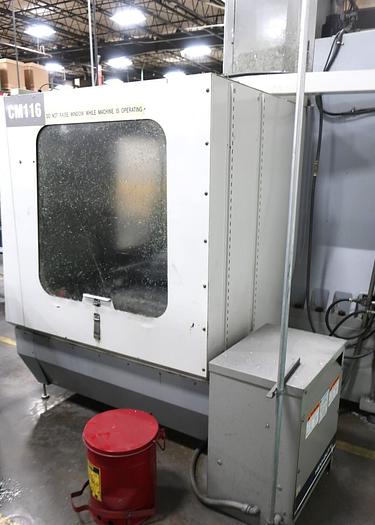

HAAS MODEL VF-3 CNC VERTICAL MACHINING CENTER, NEW 2005

SPECIFICATIONS:

Travels

X 40"

Y 20"

Z 25"

Table

Width 18"

Length 48"

Max. weight on table 3,500 lbs

T-slots width .625"

T-Slots center distance 3.15"

Spindle

Taper size #40

Speeds 10,000 RPM

Transmission Dual drive, vector driv

e

Bearings ABEC class 7

Bearing lubrication air / oil injection

Rapid feeds, X, Y, Z 500 IPM

Weight (est) 12,500 lbs

Overall dimensions 118" W x 110" F-B x

117.5" H

MOTOR SPECIFICATIONS

20 HP Spindle drive motor

3 HP Axis motors

EQUIPPED WITH:

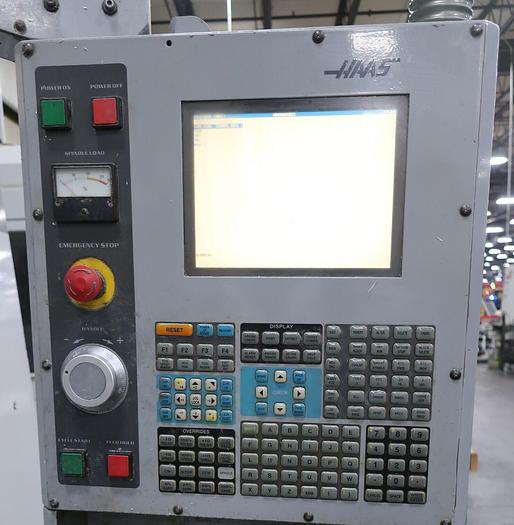

Haas 32 bit CNC controls with CRT screen

20 Position automatic tool changer

10,000 RPM

1 meg memory

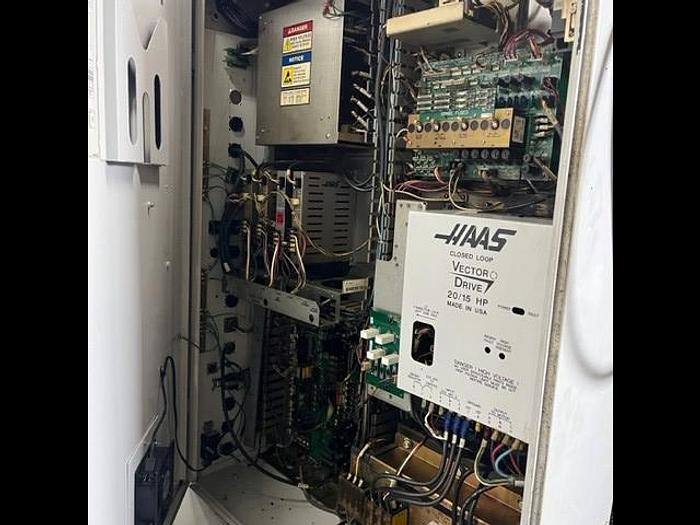

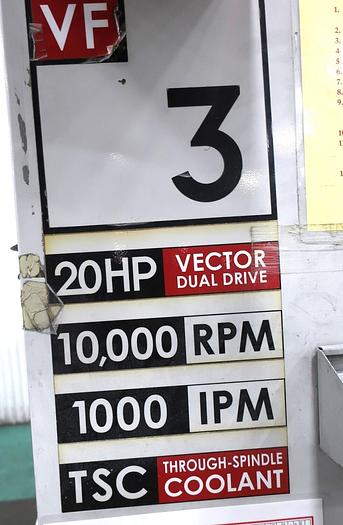

Vector drive - 20HP

Chip auger

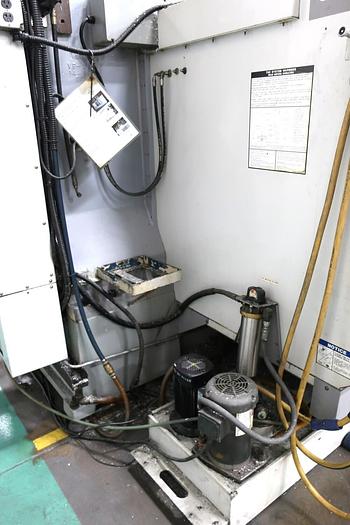

COOLANT THRU SPINDLE

4TH AXIS

ONLY RAN ALUMINUM
