1999 Femco FV-20

Femco Vertical Machining Center Femtec FV 20 1999

S/N V9901011

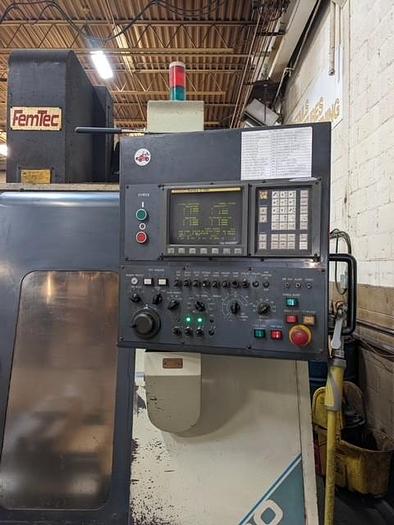

Fanuc OM Control

•
• Femco Vertical Machining Center Femtec FV 20 Features:
• RS-232 Port.
• cat40 Spindle Taper.
• 20-Station Automatic Tool Changer.
• Coolant System.
• Coolant tank
• Centralized Lubrication System.
• Femco Vertical Machining Center Femtec FV 20 Specifications:
• Travels:
• X-Axis: 25″
• Y-Axis: 20″
• Z-Axis: 20″
• Table:
• Table Dimensions: 31-1/2″ x 18″
• T-Slots (number x width x distance between centers): 5 x 0.71″ x 3″
• Spindle:
• Taper: CAT40
• Speed: 6,000 RPM (approx.)
• Spindle Center to Column: 20″
• Automatic Tool Changer:
• Tool Capacity: 20
• General:
• Machine Weight: 9,000 lbs.
• Electrical: 220 Volt, Three Phase
• Overall Dimensions: 90″ x 105″ x 105″ tall
