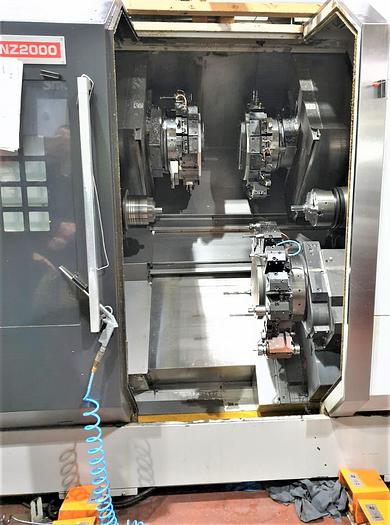

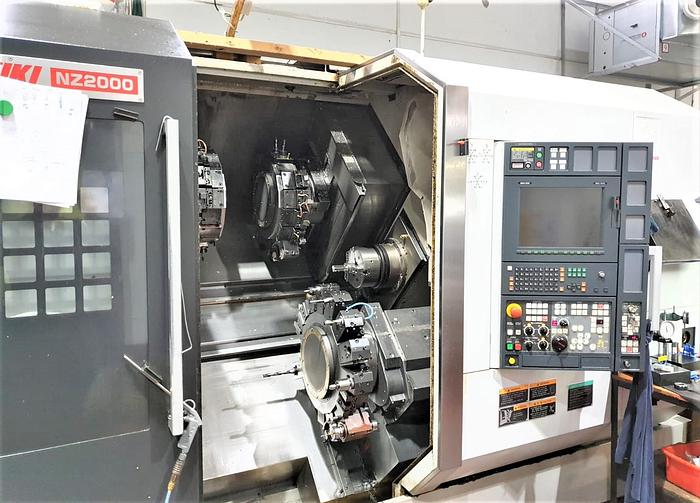

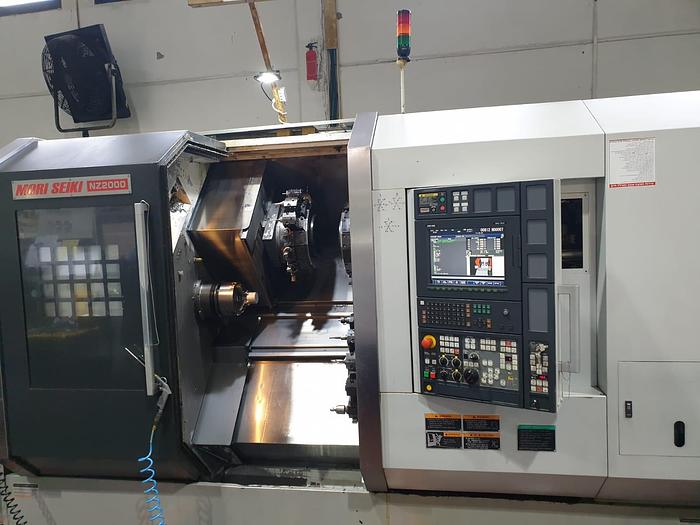

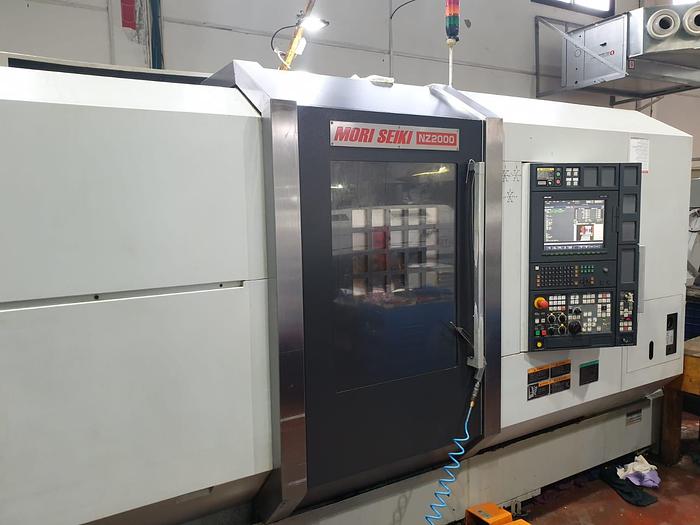

2007 Mori Seiki NZ2000

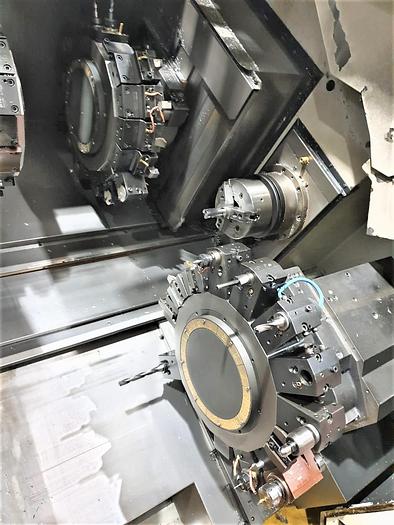

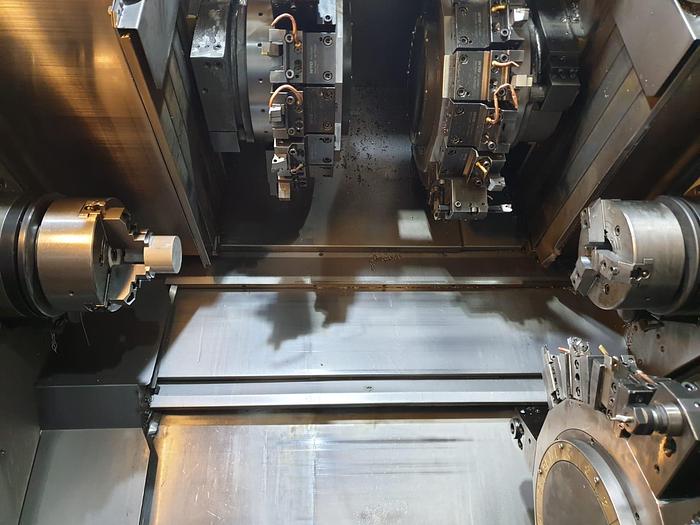

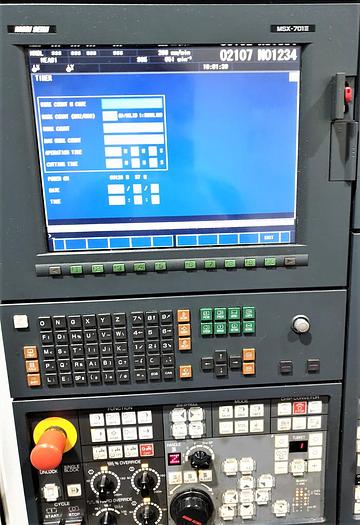

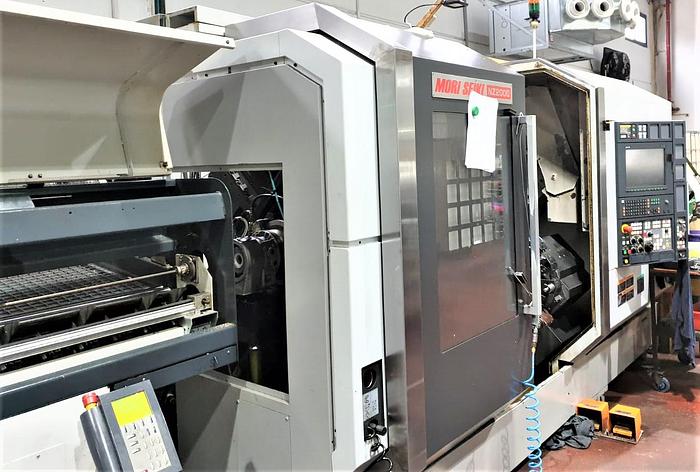

MORI SEIKI NZ2000 3 TURRET 2 SPINDLE CNC MULTIAXIS TURNING CENTER 2007 Specifications Chuck Size 1 COLLET CHUCK 65MM CAP, ONE 8” 3-JAW CHUCK Maximum Swing 33.5" Swing Over Cross Slide 31.5" Maximum Turning Diameter 11.8" Maximum Distance Between Spindles 44.4" Maximum Turning Length 31.9" Maximum Bar Capacity -Both Spindles 2.5" X Axis Travel X1/X2/X3 8.3" Y Axis Travel Y1/Y2/Y3 4.3" Z Axis Travel Z1,Z2/Z3 11.8" / 31.9" / 11.8" C Axis Movement C1 / C2 both 360,000 Positions B Axis Subspindle 34.3" Spindle Nose / Spindle Bore - Both A2-6"/2.9" Spindle Speeds Left / Right 5,000 RPM Spindle Motor - Both 2 Spd Geared 33.3 HP Upper Rotary Tool Motor / Speeds 10 HP / 6,000 RPM Number of Turret Positions - All Trts 16 Ea. X 3 trts. Rapid Traverse Rates X / Y / Z 1181 / 787 / 1968 IPM Machine Dimensions not available Machine Weight 20,900 lbs. Equipped With Mori Fanuc MSX 701E CNC Control Three Turrets (2 upper / 1 lower) Twin Spindles Y Axis Capability All 3 Turrets Full "C" Axis Spindle Rotation Live Milling/Drilling Capability Both Turrets Collet Chuck on Main Spindle and two 3-jaw chucks Coolant System Air Blow on Chuck Barfeed Interface LNS Quick Load Servo 3 Barfeed System Chip Conveyor Overhead Parts Catcher Right Side Parts Conveyor System Tool Presetter - Both Spindles Manual Pulse Generator MAPPS Conversational Programming Mist Blaster Mori-Net 1280 Meters of Memory DNC By Memory Card Program Restart Inverse Time Feed Rigid Tapping on Mill Head 8x Radial drilling and milling head 1x Radial drilling Two-sided and milling head 10x Axial drilling and milling head
