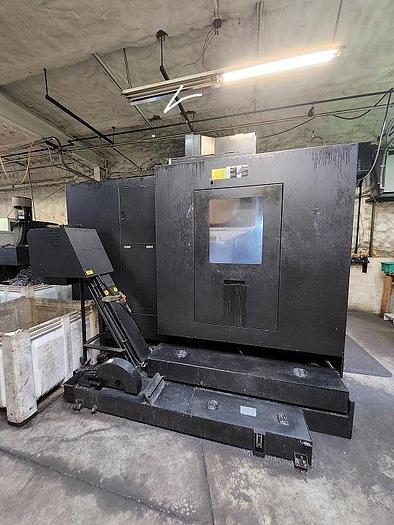

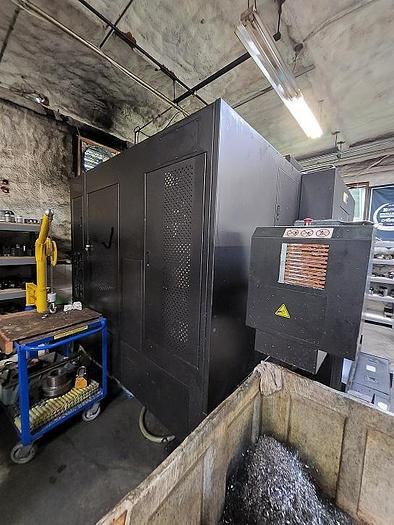

2017 YCM NSA 102A
2017 YCM NSA 102A
Contact us for price
Location:Livonia, MI
Description
YCM NSV 102A 4th5th Axis VMC 2017
STANDARD FEATURES
POWERFUL 40 HP (30KW) BBT-40 TAPER SPINDLE
HIGH SPEED 30 TOOL SWING-ARM ATC SYSTEM
HIGH PRECISION CERAMIC SPINDLE BEARINGS
RANDOM ACCESS & BI-DIRECTIONAL ATC MAGAZINE
IDD SPINDLE DESIGN WITH 15,000 RPM MAXIMUM
200 BLOCKS LOOK AHEAD, 2MS PROCESSING SPEED
40” X 23.6” X 23.6” TRAVELS
AI NANO CONTOUR CONTROL WITH ANTI JERK FUNCTION
2,363 IPM RAPIDS ON X,Y / 1G ACC/DEC IN ALL AXES
AC DIGITAL SERVO & SPINDLE DRIVES VECTOR HRV3
PRE-TENSIONED DOUBLE NUT BALLSCREWS
ABSOLUTE ENCODERS W/ 1 MILLIONTHS PLUS RESOLUTION
ULTRA RIGID ROLLER LINEAR GUIDES WAY ON X,Y,Z
1280 METER OF MEMORY W/ 100MPS ETHERNET FUNCTION
AUTOMATIC LUBRICATION SYSTEM
PCMCIA SLOT FOR MEMORY EXPANSION & MODEM
99 GAL COOLANT SYSTEM
10.4” LCD MONITOR W/ DYNAMIC GRAPHIC DISPLAY
(2) Y AXIS AND (1) X- AXIS CHIP EVACUATION AUGERS
MANUAL GUIDE I CONVERSATIONAL SOFTWARE
SPINDLE AIR CURTAIN & CUTTING AIR BLAST
MACRO B & SKIP FUNCTION
SPINDLE COOLING SYSTEM / CHILLER
HIGH SPEED RIGID TAPPING & HELICAL INTERPOLATION
COOLANT GUN
3-D DYNAMIC TOOL PATH GRAPHICS
HIGH QUALITY & RUGGED MEEHANITEÒ CASTINGS
BASIC SPECIFICATIONS
HEADSTOCK
Motor αiIT15/15000 +αiSP37 AC Digital Spindle Motor
Horsepower 40HP (205NM) Fanuc Motor
Maximum Speed 15,000 rpm
Spindle Drive IDD-Isolated Direct Drive Motor
Spindle Nose to Table 3.94” ~ 27.56”
Spindle Center to Z-axis Way Cover 26.3”
TABLE
Size 44.16” x 25.59”
T-Slots 6 x 0.71” x 3.94”
Maximum Load 2,205 lbs
DETAILED SPECIFICATIONS
HEADSTOCK
Spindle Motor αiIT15/15000 +αiSP37 Digital Spindle Motor
Optional Horsepower (40 HP 205NM) αiIT15/15000 +αiSP37 Motor
Spindle Drive Isolated Direct Drive Motor
RPM Range 100 ~ 15,000 rpm
Spindle Bearing Type Angular Contact Ceramic Bearings
Bearing Class ABEC Class 7 (P4A)
Spindle Taper Hardness / Material HRC62 ± 1.5° / SCM21
Spindle Draw Bar Type Collet Style
Retention System Helical Disc Spring
Holding Force 2,100 ~ 2,700 lbs.
Counter Balance G1
Spindle Orientation Built-in Positioning Encoder
Spindle Nose to Table 3.94” ~ 27.56”
Spindle Center to Z-axis Way Cover 35.43”
TABLE
Dimensions:
Length 44”
Width 25.59”
T-Slots 6 x 0.71” x 3.93”
Maximum Table Load 2,205 lbs.
Height from Floor 35.43”
AUTOMATIC TOOL CHANGER
Changer Dual Swing Arm Type
Tool Change Time 1.2 Seconds (tool to tool)
3.4 seconds (chip to chip)
Maximum Tool Weight 13.2 lbs.
Maximum ATC Weight 330 lbs.
Maximum Tool Length 11.8”
Magazine Tool Selection Bi-directional, Random Access
Maximum Diameter of Tools
Adjacent Pocket Tooled 2.99”
Adjacent Pocket Empty 4.9”
Maximum Number of Tools 30 (48/60 optional)
Tool Shank BBT-40 (CAT-40 optional)
Air Requirements 85 psi Minimum
X AXIS
Ballscrew: Diameter 1.77”
Class JIS C3
Pitch 0.787” (20mm)
Feed Rate: Rapid Traverse 2,363 ipm
Cutting Feed Rate 0.04 ~ 787 ipm
Travel: 40.16”
Accuracy: Linear Positioning ± 0.00012” (JIS 6338)
Repeatability ± 0.00008” (JIS 6338)
Horse Power 6.03 HP
Thrust Force: Rated 1,740 lbf.
Thrust Force: Max 6,026 lbf.
Y AXIS
Ballscrew: Diameter 1.77”
Class JIS C3
Pitch 0.787” (20mm)
Feed Rate: Rapid Traverse 2,363 ipm
Cutting Feed Rate 0.04 ~ 787 ipm
Travel: 23.6”
Accuracy: Linear Positioning ± 0.00012” (JIS 6338)
Repeatability ± 0.00008” (JIS 6338)
Horse Power 5.4 HP
Thrust Force: Rated 1,740 lbf.
Thrust Force: Max 6,026 lbf.
Z AXIS
Ballscrew: Diameter 1.77”
Class JIS C3
Pitch 0.787” (20mm)
Feed Rate: Rapid Traverse 1,890 ipm
Cutting Feed Rate 0.04 ~ 787 ipm
Travel: 23.6”
Accuracy: Linear Positioning ± 0.00012” (JIS 6338)
Repeatability ± 0.00008” (JIS 6338)
Horse Power 7.4 HP
Thrust Force: Rated 2,378 lbs.
Maximum 7,766 lbs.
General
Machine Net Weight 15,4342 lbs.
Coolant Tank Capacity 99 US/Gallons
Shipping Weight (17,306 lbs.) + (639 lbs., Side Cover) + (573 lbs., Coolant Tank)
Power Consumption 36kVA (40kVA)
Breaker Size 150 A
Air Requirements 85 psi
ACCESSORIES
Standard
Option
l TSC Prep No Union
l Automatic Door
l Tool Kit
l Linear Scale
l Pilot Lamp, Work Lamp
l STC Plus
l Coolant Gun /Air Gun
l Chip Conveyor
l Oil skimmer
l Chips Flush Coolant System
l Guide way Cover on X/Y/Z
l Oil-mist Coolant System
l (2) Y and (1) X-Axis Chip Augers
l Oil-mist Collector
l Spindle Air Blast
l Shower Coolant System
l Cutting Air Blast
l A/C Cooler for Electrical Cabinet
l Spindle Air Seal
l Coolant Through Spindle System
l Spindle Cooling System
l 4th Axis Rotary Table
l Full Chip Enclosure
l Heavy Duty Coolant Pump
l Leveling Blocks and Bolts
l Work piece Measurement System
l Heat Exchanger for Electrical Cabinet
l Auto Tool Length Measurement System
l Mechanical, Electrical & Operating Manuals (CD)
l HEIDENHAIN iTNC-530 Control

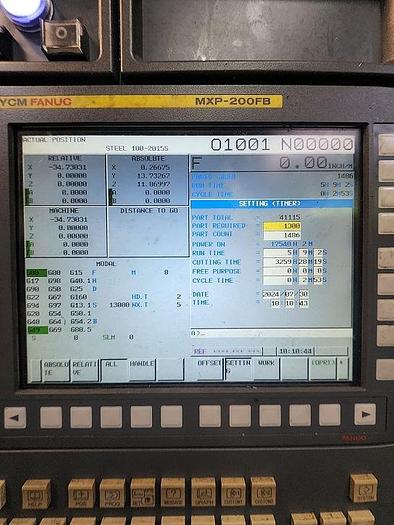

MXP-200FB SPECIFICATIONS
I OPERATION PLUS SOFTWARE ENHANCEMENT EXCLUSIVELY FROM YCM
HIGH PERFORMANCE AC DIGITAL SERVO & SPINDLE DRIVES
HIGH RESPONSIVE VECTOR DRIVES with ABSOLUTE POSITIONING ENCODERS
HIGH RESOLUTION 10.4" LCD MONITOR
AI CONTOUR CONTROL II WITH ANTI JERK FUNCTION, 200 BLOCK LOOK AHEAD, 2MS PROCESSING SPEED
CUSTOM MACRO B & SKIP FUNCTION
BIG & DOUBLE SCREEN DISPLAY ANIMATION FOR MANUAL GUIDE i SOFTWARE
USB MEMORY INPUT/OUTPUT with 1,280 METERS (512K BYTE) MEMORY
RS 232C INTERFACE & ETHERNET CONNECTION
HIGH SPEED RIGID TAPPING
ADDITIONAL WORK & TOOL OFFSETS
PCMCIA EXPANSION SLOT
POWER FAILURE MODULE
Specifications
| Manufacturer | YCM |
| Model | NSA 102A |
| Year | 2017 |
| Condition | Used |
