1990 Daewoo Puma 12L

1990 Daewoo Puma 12L

Contact us for price

Location:Livonia, MI

Contact Us

orCall 732-367-4130

Description

Daewoo Puma 12L CNC Turning Center 1990



S/N 380407

Equipped With:

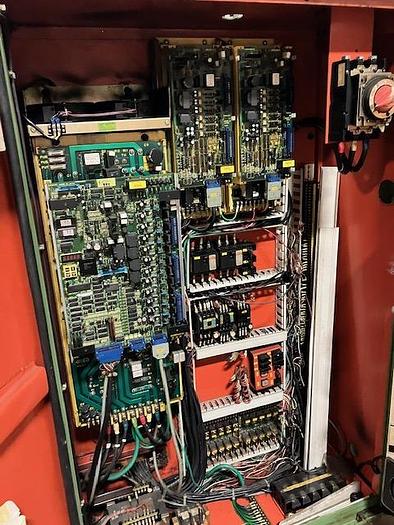

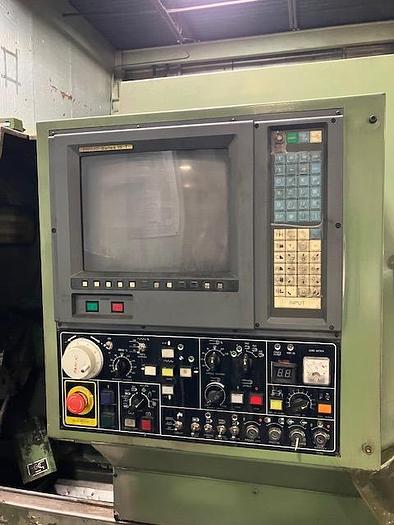

Fanuc 15TF CNC Control

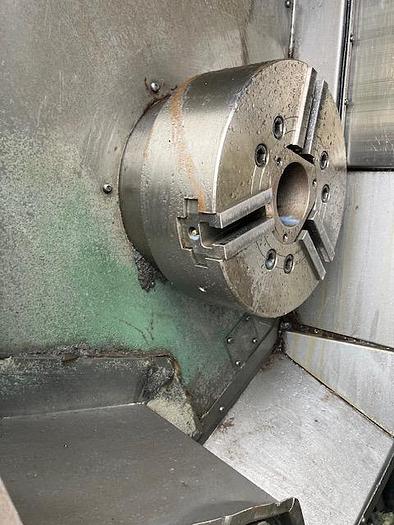

12″ Chuck

A2-8 Spindle

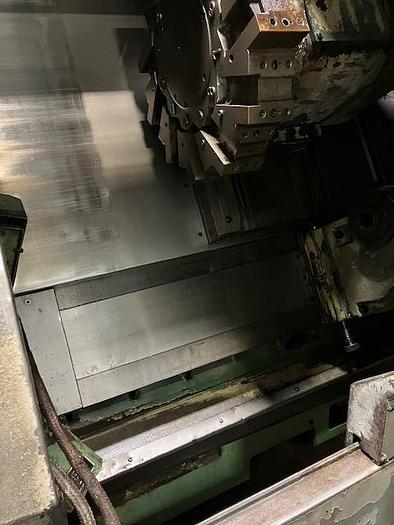

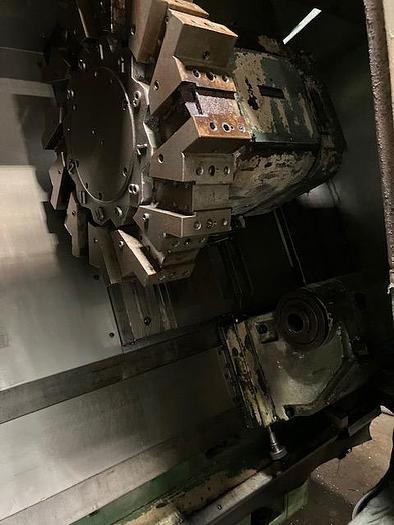

12 Station Bi-directional Turret

Tailstock

Coolant System

Foot Switch

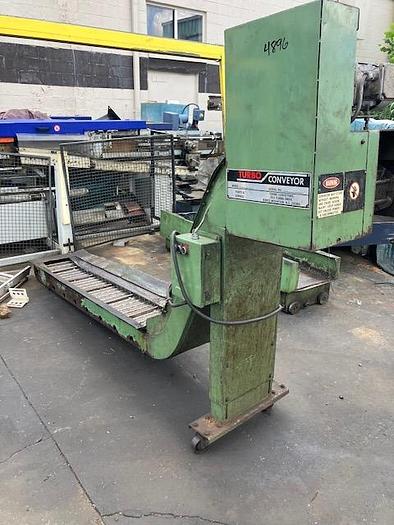

Coolant Tank and Chip Conveyor


General:

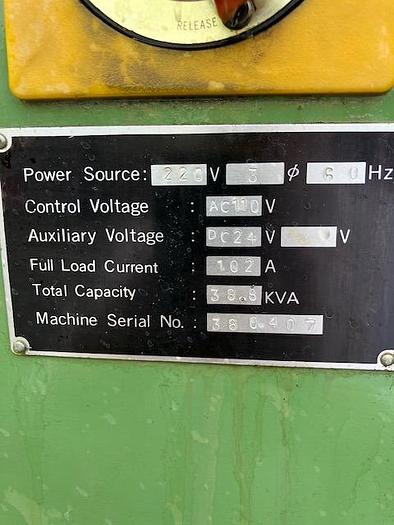

Power: 21 kva, 220v / 3-Phase

Overall Dimensions: 125″ X 82″ X 79″ High

Weight: 15500 lbs

Daewoo Puma 12L Specifications:

Capacity:

Max Turning Diameter: 18.89″

Max Turning Length: 40.2″

Max Bar Capacity: 3.54″

Swing Over Bed: 22.4″

Distance Between Centers: 42.0″

X Axis Travel: 10.2″

Z Axis Travel: 41.3″

Rapid Traverse X Axis: 480 IPM

Rapid Traverse Z Axis: 630 IPM

Spindle Nose: A2-8

Spindle Bore: 4.13″

Spindle Speed: 12 – 2500 RPM

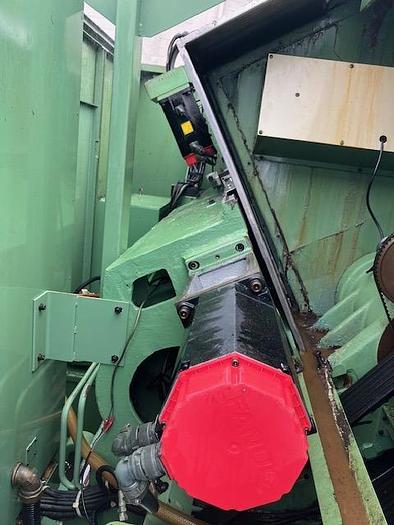

Spindle Motor: 30 HP

Turret Capacity: 12 Stations

Turret Index Time: 1 Second

Tailstock Taper: MT-5

Tailstock Quill Dia.: 4.33″

Tailstock Quill Travel: 4.0″

Specifications

ManufacturerDaewoo
ModelPuma 12L
Year1990
ConditionUsed
