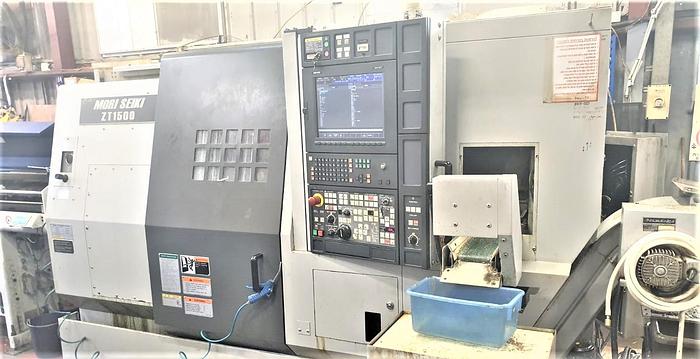

2006 MORI SEIKI ZT-1500Y

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

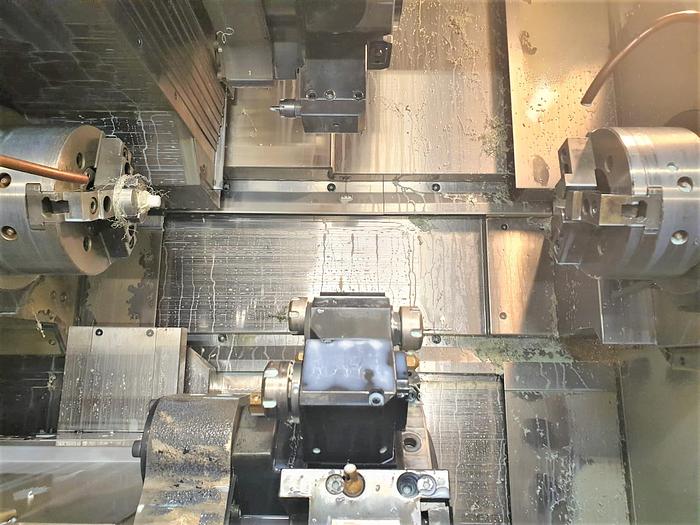

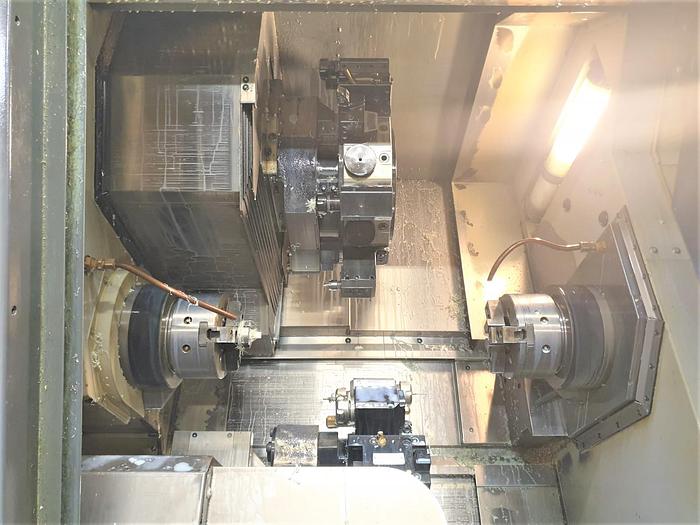

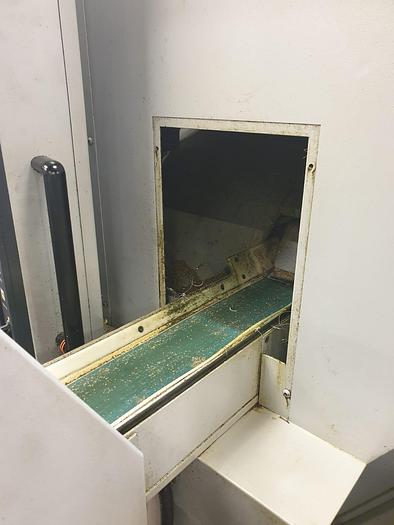

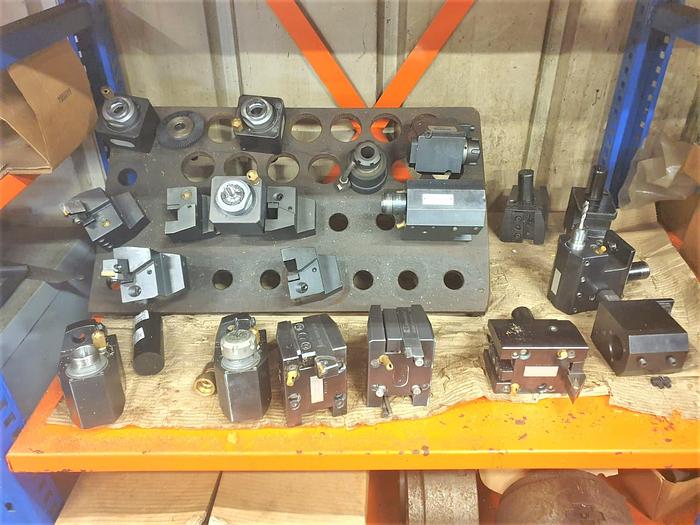

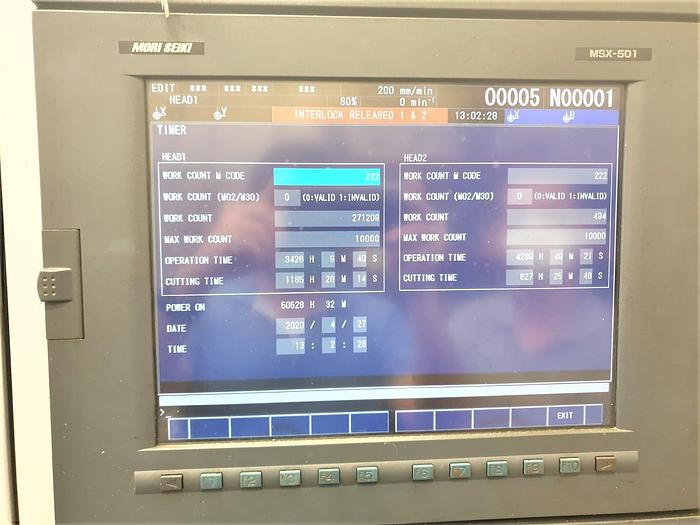

MORI SEIKI ZT1500Y CNC TWIN SPINDLE, TWIN TURRET, Y-AXIS TURNING CENTER 2006 Specifications Chuck Size (2) 6” 3-JAW CHUCKS Maximum Swing 15" Max. Turning Diameter / Length 7.4" / 4.7" Distance Between Spindles 29.5" X-Axis Travel Upper / Lower 5.5" Z-Axis Travel Upper / Lower 17.7" / 17.3" Y-Axis Travel +/- 1.5" B-Axis Travel (Headstock #2) 20.7" Spindle Nose / Spindle Bore A2-5" / 2.4" Spindle Speeds (both) 60 - 6,000 RPM Spindle Motor 25 HP Rotary Tooling Speeds 6,000 RPM Rotary Tool Motor 7.5 HP Number of Turret Locations (both) 2 x 12 Positions Rapid Traverse Rates X, Y, Z 708 / 236 / 944 IPM Machine Dimensions 140"x81"x79" Machine Weight 12,000 lbs. Equipped With MSX-501 CNC CONTROL Twin 12 Station Turrets Subspindle Full C Axis Spindle Incremental Movement Live Milling Capability Y Axis Capability (2) 3-JAW chucks Automatic Parts Catcher Parts Offload Conveyor Chip Conveyor RS-232C Port for DNC Interface

Specifications

ManufacturerMORI SEIKI
ModelZT-1500Y
Year2006
ConditionUsed
