1998 Sharnoa HPM42S

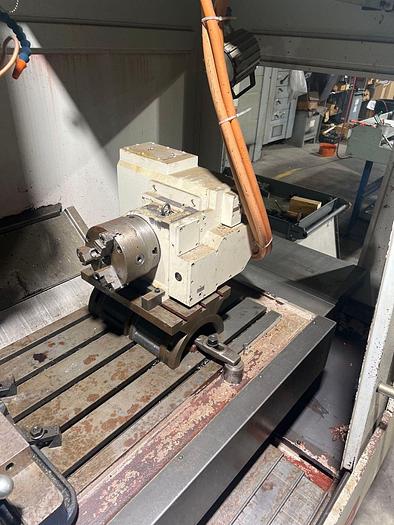

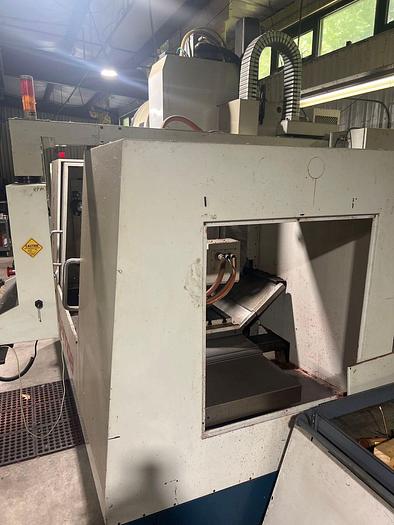

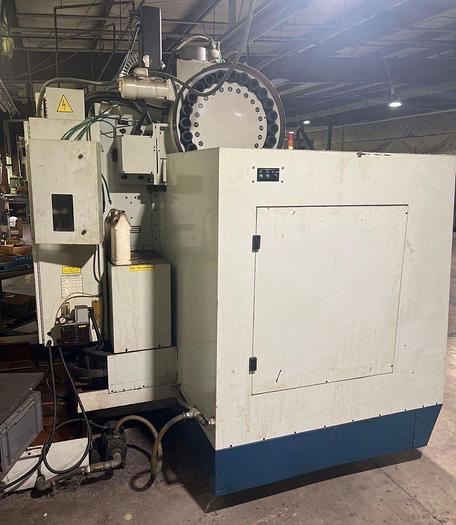

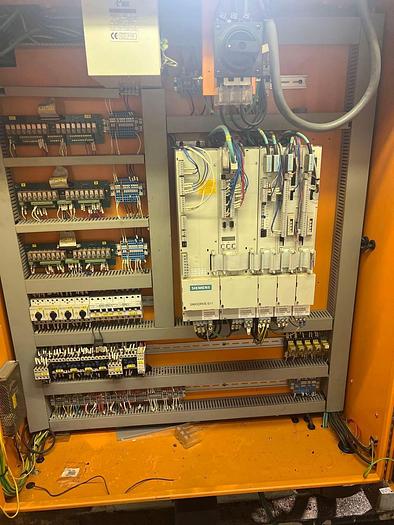

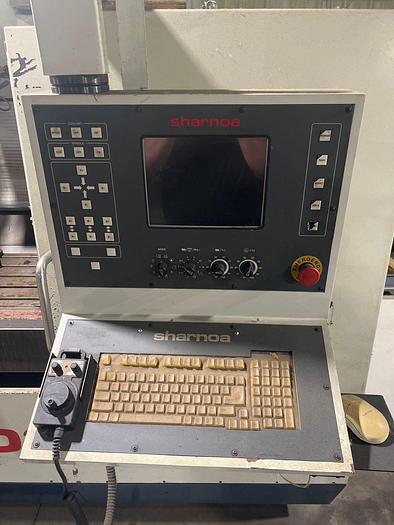

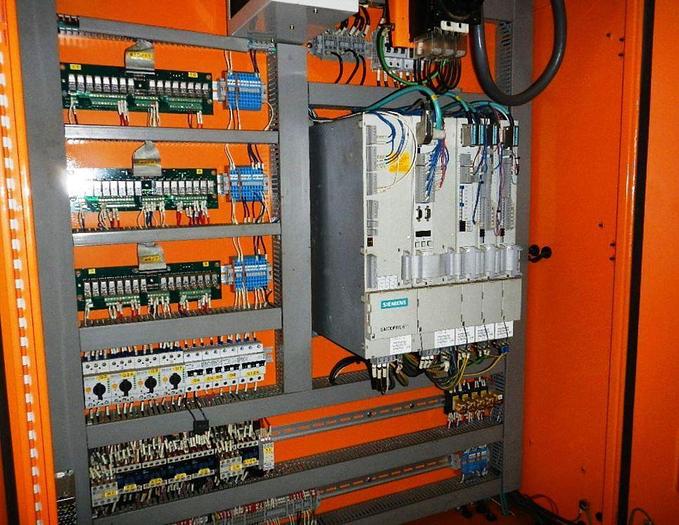

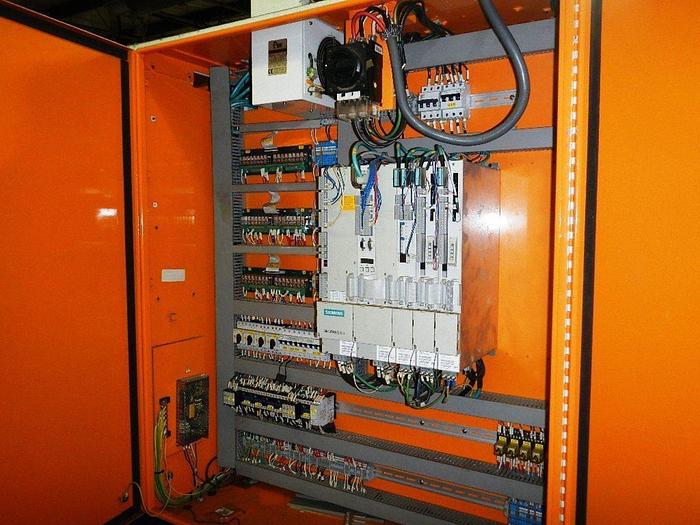

SHARNOA HPM42S VERTICAL MACHINING CENTER W/4TH AXIS 1998

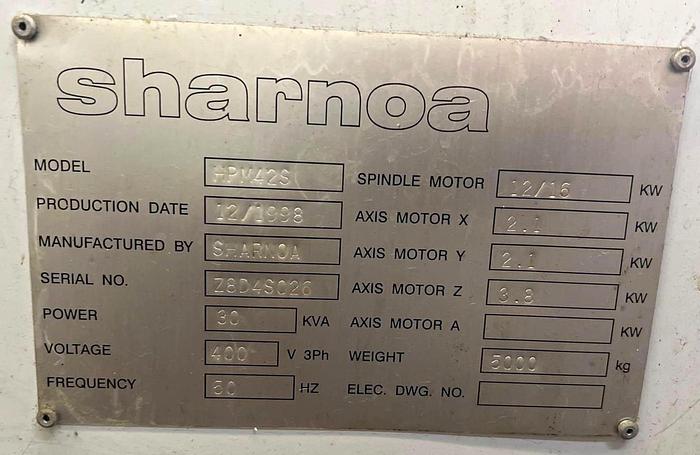

S/N Z8d4s026

Travels

Axis Travels X, Y, Z                                                       42” X 20” X 25.6”

Spindle Nose Table Top                                                5.9” to 31.5”

Spindle Center to Column                                             21”

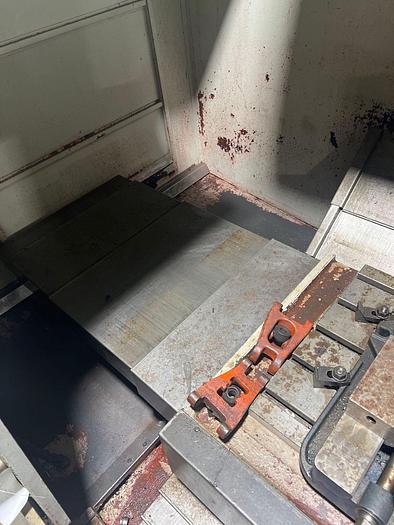

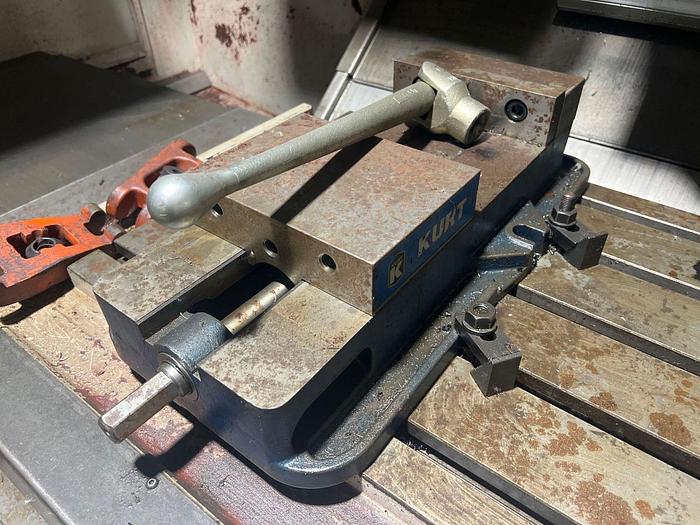

Table

Overall Size                                                                    47.2” X 20”

Load Capacity                                                               1,500 lbs.

T-Slots, Number and Width                                           5 X 0.63”

T-Slot Spacing                                                               3.9”

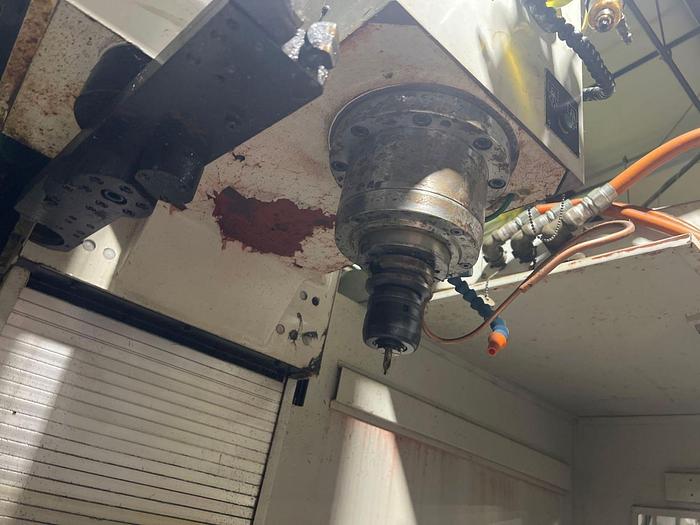

Spindle

Drive                                                                              Direct

Horsepower                                                                   21/30 min. 16 Continuous

Speed                                                                             8,000 RPM

Spindle Taper                                                                BT-40

Feedrates

Rapid Traverse X, Y, Z                                                  800 IPM

Feedrates X, Y, Z (geometry dependent)                      .04-200 IPM

Accuracy

Positioning  X, Y, Z                                                        ±0.0004”

Repeatability  X, Y, Z                                                     ±0.0004”

Ballscrew Diameter                                                       1.57”

Automatic Tool Changer

Type                                                                               Arm Type

Tool Capacity                                                                24 position

Maximum Tool Diameter                                               3” / 4.33”

Maximum Tool Length/Weight                                       12 / 15.4 lbs.

Tool Selection                                                                Random

Machine Dimensions

Overall Floor Space                                                       118 X 106.5” X 104.7”

Machine Weight                                                             11,300 lbs.

Plant Requirements

Voltage                                                                           220 ± 10%, 3 Phase 60 Cycle

Power                                                                             30 KVA

Air                                                                                   0.5CFM @ 90 PSI

Recommended Foundation                                           6” - 8” Concrete
