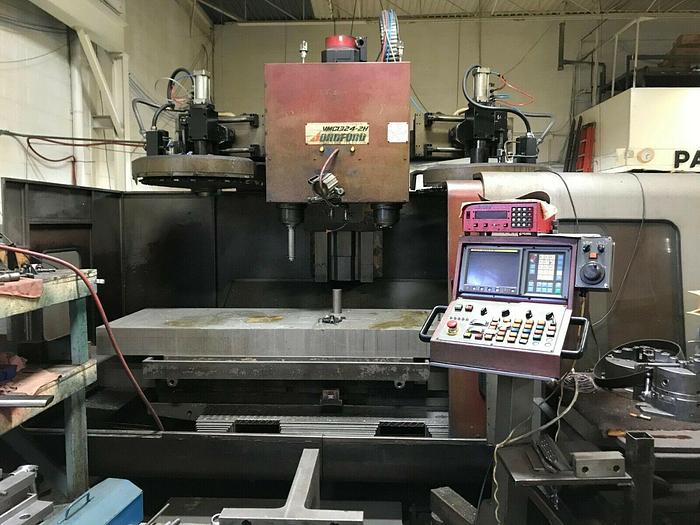

1997 Johnford VMC-1324-2H

1997 Johnford VMC-1324-2H Twin Spindle CNC Vertical Machining Center - Fanuc OM

Machine is complete and just out of service. Machine was running parts a day ago.

Generic Specifications to be verified:

Travel: X-Axis 51.2" Y-Axis 29.5" Z-Axis 26.5"

Table Size 55.1" x 28"

Number of Spindles 2

 Distance Between Spindles 25"

 Spindle Speed 6000 RPM

 Spindle Motor 15 HP

 Spindle Torque 470 ft. lbs.

 Tools 24 x 2 Rapid

 Traverse Rates (X / Y & Z) 590 / 472 IPM

Table Load Capacity 7100 lbs.

Max Tool Diameter 5" Max Tool Length 15.7" Max Tool Weight 33 lbs.

Machine Dimensions (L x W x H) 150" x 134" x 126"

Machine Weight 26,450 lbs.

FEATURES: FANUC 0MC CNC CONTROL 9" Monochrome CRT Rigid Tapping Twin Spindles (2) 24 Position Tool Magazines

Chip Auger Portable Pendant CNC Control Remote Manual Pulse Generator

Yellow Operating Condition Light Two Gear Range Headstock Heavy Duty Box Way Construction
