2013 Kent ML-1740T

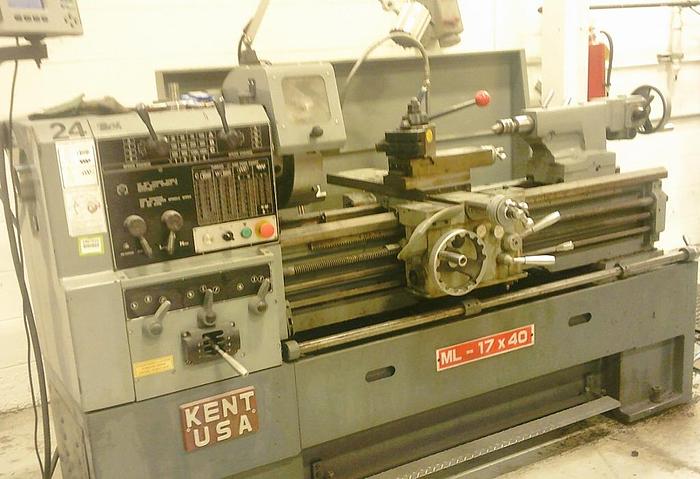

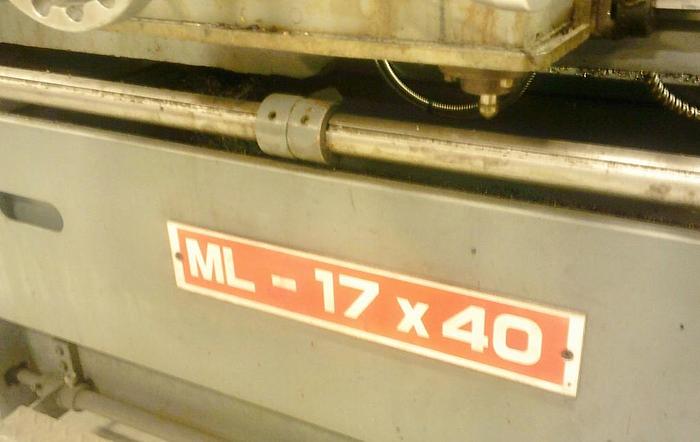

Kent Precision Engine Lathe – Model ML-1740T    New:  2013   Condition: Excellent

3.125” Spindle Through Hole; 10 HP Spindle Motor

Features:  Dorian Universal quick change master tool post with (12) assorted tool holders

Swing-down chuck guard

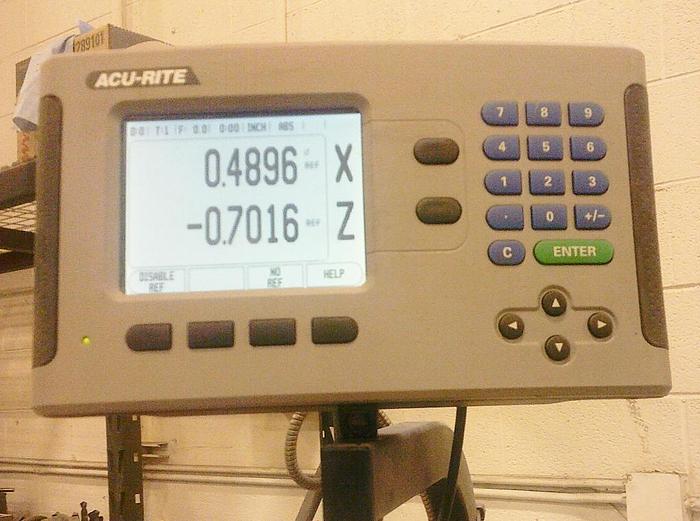

Accurite 2-axis Digital Readout

Built-in Coolant system

2-speed tailstock

(2) steady rests

(2) follower rests

Live center for tailstock

Assorted tooling items

Inch/metric threading

·         Solid Full Length Casting Base with Front Loading Chip Tray for Easier Cleaning

·         Adjustable Over-load Feed Clutches; Quick Reversal Feed from Apron

·         Main leadscrew cover; Safety Chuck Cover Interlock Switch

·         Full-length Safety Foot Brake; Spindle Jog Button Control

·         One-shot Lubrication for Apron, Carriage, and Bed Ways

·         Multi-position Adjustable Feed Position Stops

·         Dual Inch/Metric Calibrated Tailstock Quill with Knockout Tang; Heavy Duty Two Speed Tailstock

·         Dual Inch/Metric Dials with Quick-change Sleeve

·         Wired for 220V/3/60 service

Standard Accessories:

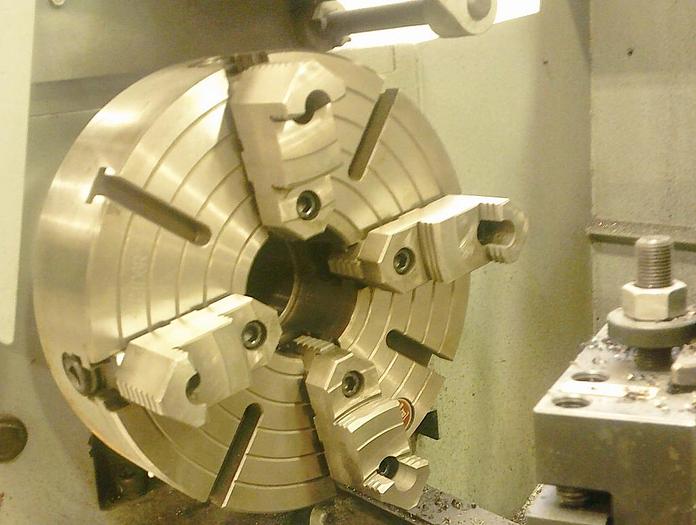

·  3-jaw chuck (10”)     and  12” 4-jaw chuck

·  Chuck cover

·  Steady rest & follow rest

·  Main leadscrew cover

·  Coolant system

·  Full length splash guard

·  Halogen work light

·  Thread chasing dial

·  Hardened Bedways

·  SPECS

Capacity

Swing over bed ways

17” (435mm)

Swing over cross slide

10.875” (277mm)

Swing over gap

24.5” (622mm)

Gap length (w/ face plate)

8” (200mm)

Bed width

12” (305mm)

Distance between centers

44” (1120mm)

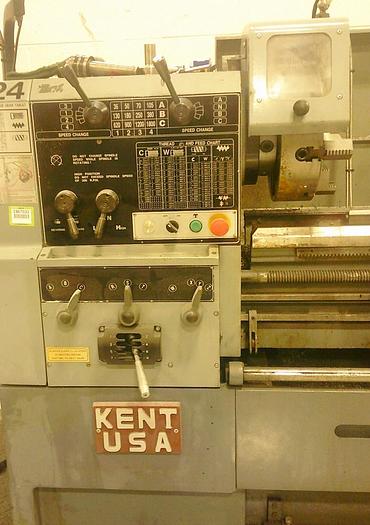

Headstock

Spindle hole

3.125” (80mm)

Spindle nose camlock

D1-8

Spindle to sleeve taper

85mm 1/19.18 – MT#5

Spindle speed

12 Steps, 36 – 1800 RPM

Spindle speed ranges

N/A

Carriage

Bearing length on ways

17.3” (440mm)

Cross slide width

7.25” (185mm)

Cross slide travel

10.6” (270mm)

Top slide (compound) travel

4.75” (120mm)

Feed Box

Thread capacity (inches)

45, 2 - 72 TPI

Thread capacity (metric)

39, 0.2 - 14 MM

Modular threads range

18, 0.3 - 3.5 M

Diametral pitch range

21, 8 – 44 DP

Longitudinal feeds

0.0015 – 0.04 IPR

Cross feeds

0.00075 – 0.02 IPR

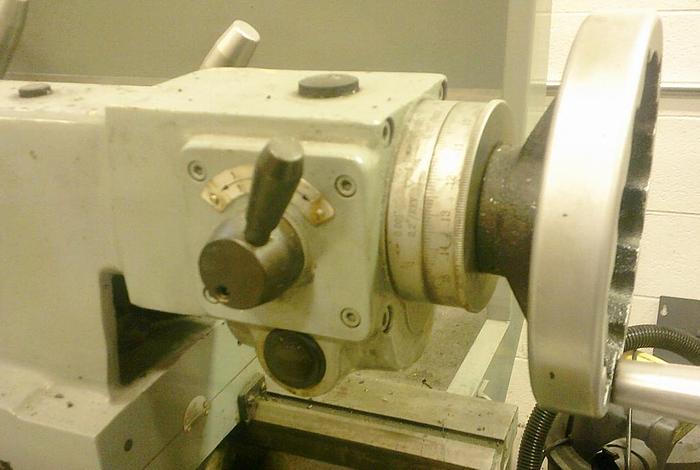

Tailstock

Quill diameter with tang

2.3” (59mm)

Quill travel

5” (130mm)

Quill taper

MT#4

Power

Main motor

10 HP

Coolant pump motor

1/8 HP

Control circuit voltage

115 V

Dimension

Shipping dimension

95”x39”x63”

Weight

Net weight (approx)

3900 LBS

Gross weight (approx)

4560 LBS
