2000 MIYANO LZ-01

2000 MIYANO LZ-01

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

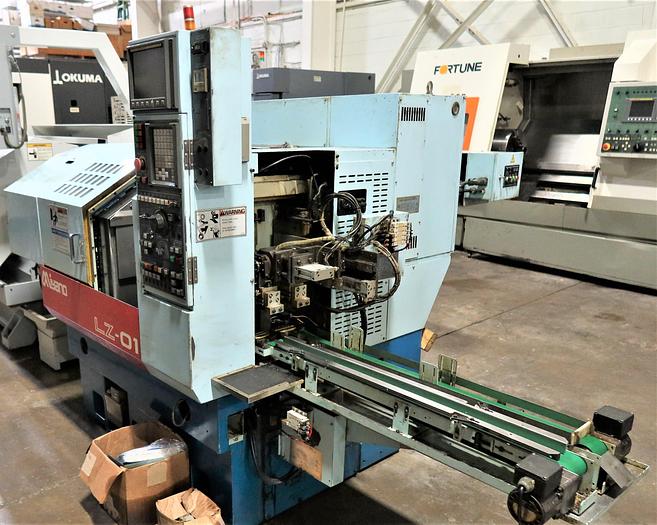

MIYANO MODEL LZ-01 2-AXIS TURNING CENTER WITH AUTO LOAD/UNLOAD SYSTEM Year 2000

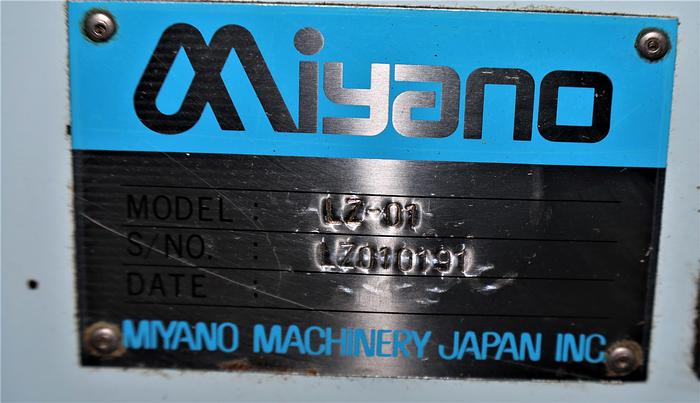

Serial Number: LZ010191

Specifications

Max. turning diameter 2.76"

Max. turning length 3.15"

Power chuck 6" hydraulic chuck

Collet chuck 2.76" max. diameter

Spindle motor (cont./30 min. rating) VAC 5.5kW : 7.5HP /

7.5kW : 10 HP

Spindle speed 60 - 6000 RPM

Slide traverse:

X-axis 9.45"

Z-axis 7.48"

No. of tool stations 8

Indexing time 0.3 sec/pos.

Max. part size 2.76"D x 3.15"L

Max. part weight 1.54 Lbs x 2

Part service time Min. 4 sec. (with collet

chuck)

Machine size (W x L x H) 55" x 65" x 65"

Weight (including NC unit) 6500 lbs.


Equipped With

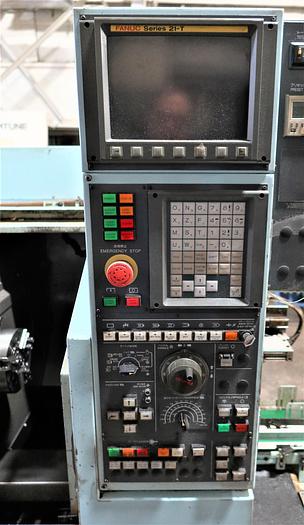

Fanuc 21T CNC control

Automatic load/unload system, Rear top loading

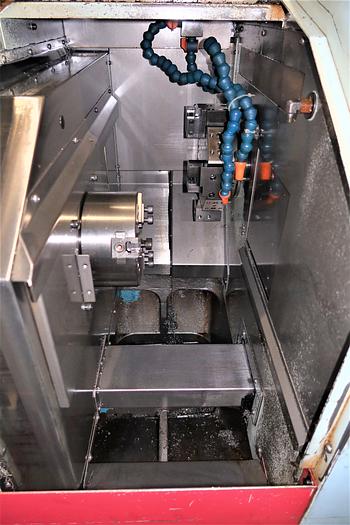

6" 3-jaw chuck

8 Position Turret

Splash guards

Chip Conveyor & Coolant System

Specifications

ManufacturerMIYANO
ModelLZ-01
Year2000
ConditionUsed
